| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-09-12110 | CONNECTOR | A47001-- | |
| 2 | 421-46-46240 | TUBE | A47001-- | |
| 3 | 04434-50612 | CLIP | A47001-- | |
| 4 | 01010-81020 | BOLT | A47001-- | |
| 5 | 01643-31032 | WASHER | A47001-- | |
| 6 | 421-09-12540 | ELBOW | A47001-- | |
| 7 | 423-70-11160 | NIPPLE | A47001-- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n a47001 up
- Main/revolving frame and related parts
- J4710 03a0 remote grease work equipment
Поиск по каталогу

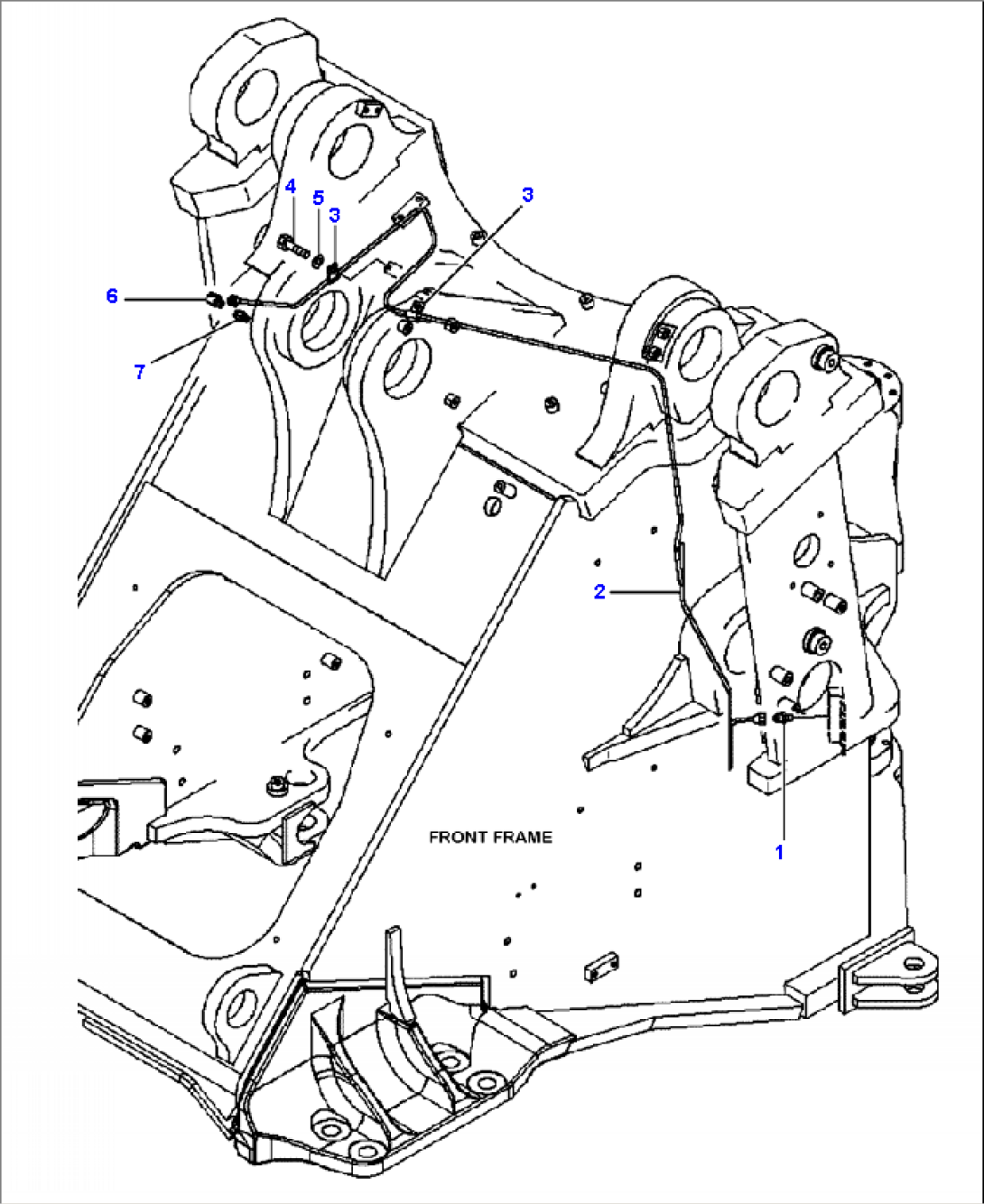

J4710-03A0 REMOTE GREASE WORK EQUIPMENT
