| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07042-30108 | PLUG | A47001-- | |
| 2 | 07020-00000 | FITTING, GREASE | A47001-- | |
| 3 | 07020-00000 | FITTING, GREASE | A47001-- | |
| 4 | 07042-30108 | PLUG | A47001-- | |
| 5 | 07020-00900 | FITTING, GREASE | A47001-- | |
| 6 | 423-70-11160 | NIPPLE | A47001-- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n a47001 up
- Main/revolving frame and related parts
- J4710 04a0 remote grease grease fittings and plugs
Поиск по каталогу

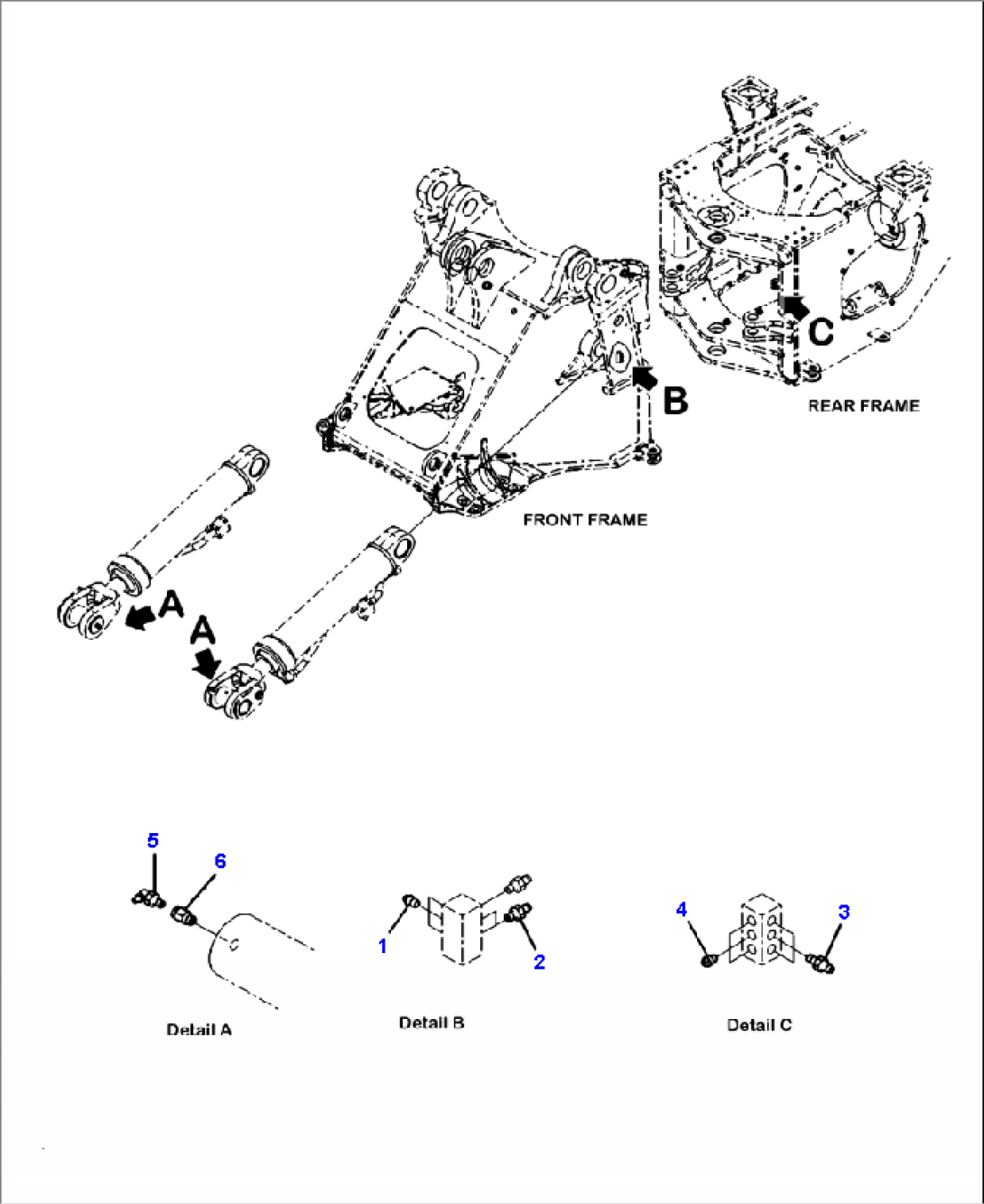

J4710-04A0 REMOTE GREASE GREASE FITTINGS AND PLUGS
