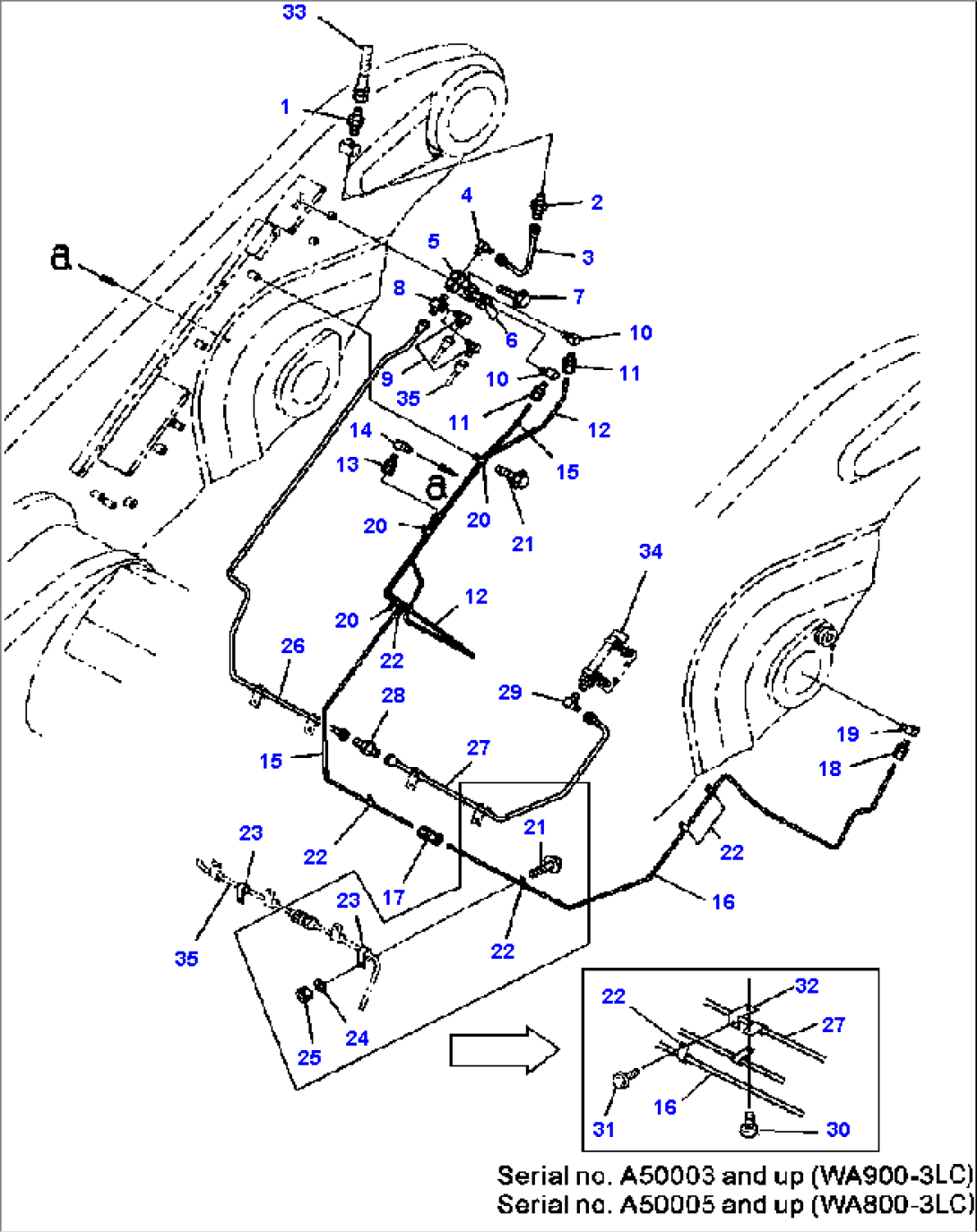

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 10E-60-16360 | NIPPLE | A50001-- | |
| 2 | 421-09-12560 | CONNECTOR | A50001-- | |
| 3 | 427-S95-1331 | TUBE | A50013-- | |
| 4 | 427-S95-1670 | ELBOW | A50001-- | |
| 5 | 427-S95-3150 | INJECTOR ASSEMBLY | A50013-- | |
| 6 | 581-96-19620 | CAP | A50001-- | |
| 7 | 01435-00845 | BOLT | A50001-- | |
| 8 | 427-S95-3160 | JOINT | A50001-- | |
| 9 | 421-09-12550 | ELBOW | A50001-- | |
| 10 | 427-S95-2170 | ELBOW | A50001-- | |
| 11 | 425-S95-2120 | CONNECTOR | A50001-- | |
| 12 | 427-S95-A640 | TUBE | A50001-- | |
| 13 | 425-S95-2120 | CONNECTOR | A50001-- | |
| 14 | 427-S95-2170 | ELBOW | A50001-- | |
| 15 | 427-S95-A530 | TUBE | A50001-- | |
| 16 | 427-S95-A510 | TUBE | A50001-- | |
| 17 | 427-S95-2430 | UNION | A50001-- | |
| 18 | 427-S95-2120 | CONNECTOR | A50001-- | |
| 19 | 427-S95-2170 | ELBOW | A50001-- | |
| 20 | 421-46-12980 | CLIP | A50001-- | |
| 21 | 01435-01220 | BOLT | A50005-- | |
| OR | ||||
| 21 | 01435-01220 | BOLT | A50001-A50004- | |
| 22 | 425-70-13120 | CLIP | A50005-- | |
| 23 | 04434-51512 | CLIP | A50001-A50004- | |
| 24 | 01643-31232 | WASHER | A50001-A50004- | |
| 25 | 01580-11210 | NUT | A50001-A50004- | |
| 26 | 427-S95-A550 | TUBE | A50001-- | |
| 27 | 427-S95-A380 | TUBE | A50001-- | |
| 28 | 421-09-12830 | CONNECTOR | A50001-- | |
| 29 | 427-S95-3340 | ELBOW | A50001-- | |
| 30 | 01435-01230 | BOLT | A50003-- | |
| 31 | 01435-01016 | BOLT | A50003-- | |
| 32 | 417-963-1620 | BRACKET | A50003-- | |
| 33 | HOSE (SEE FIG. J4710-10A1 ) | A50001-- | ||
| 34 | INJECTOR ASSEMBLY (SEE FIG. J4710-01A1 ) | A50001-- | ||
| 35 | TUBE (SEE FIG. J4710-04A4 ) | A50001-- |
