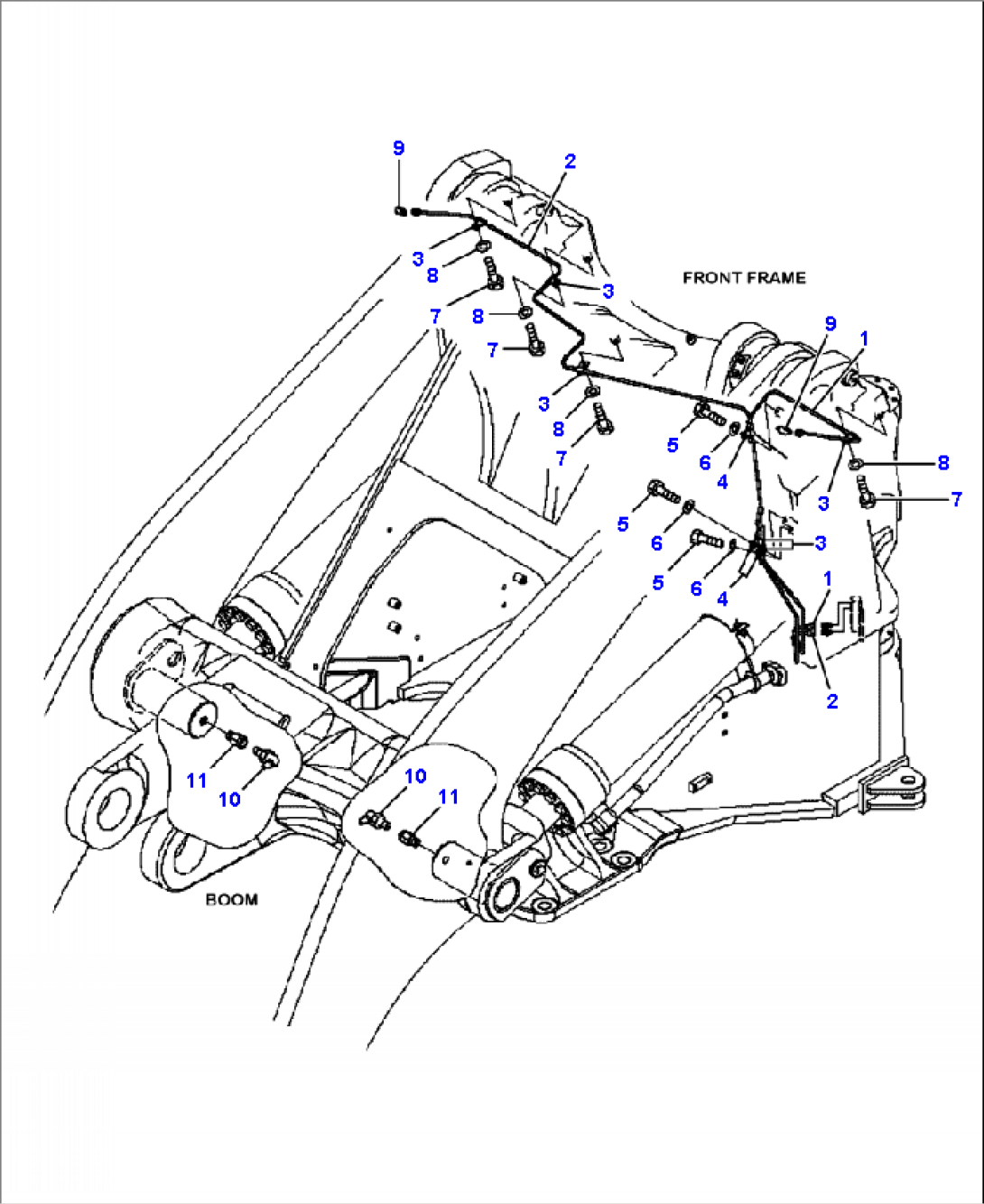

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-46-46250 | TUBE | A47001-- | |
| 2 | 421-46-46260 | TUBE | A47001-- | |
| 3 | 04434-50612 | CLIP | A47001-- | |
| 4 | 04435-50610 | CLIP | A47001-- | |
| 5 | 01010-81020 | BOLT | A47001-- | |
| 6 | 01643-31032 | WASHER | A47001-- | |
| 7 | 01010-81020 | BOLT | A47001-- | |
| 8 | 01643-31032 | WASHER | A47001-- | |
| 9 | 421-09-12540 | ELBOW | A47001-- | |
| 10 | 07020-00900 | FITTING, GREASE | A47001-- | |
| 11 | 423-70-11160 | NIPPLE | A47001-- |
