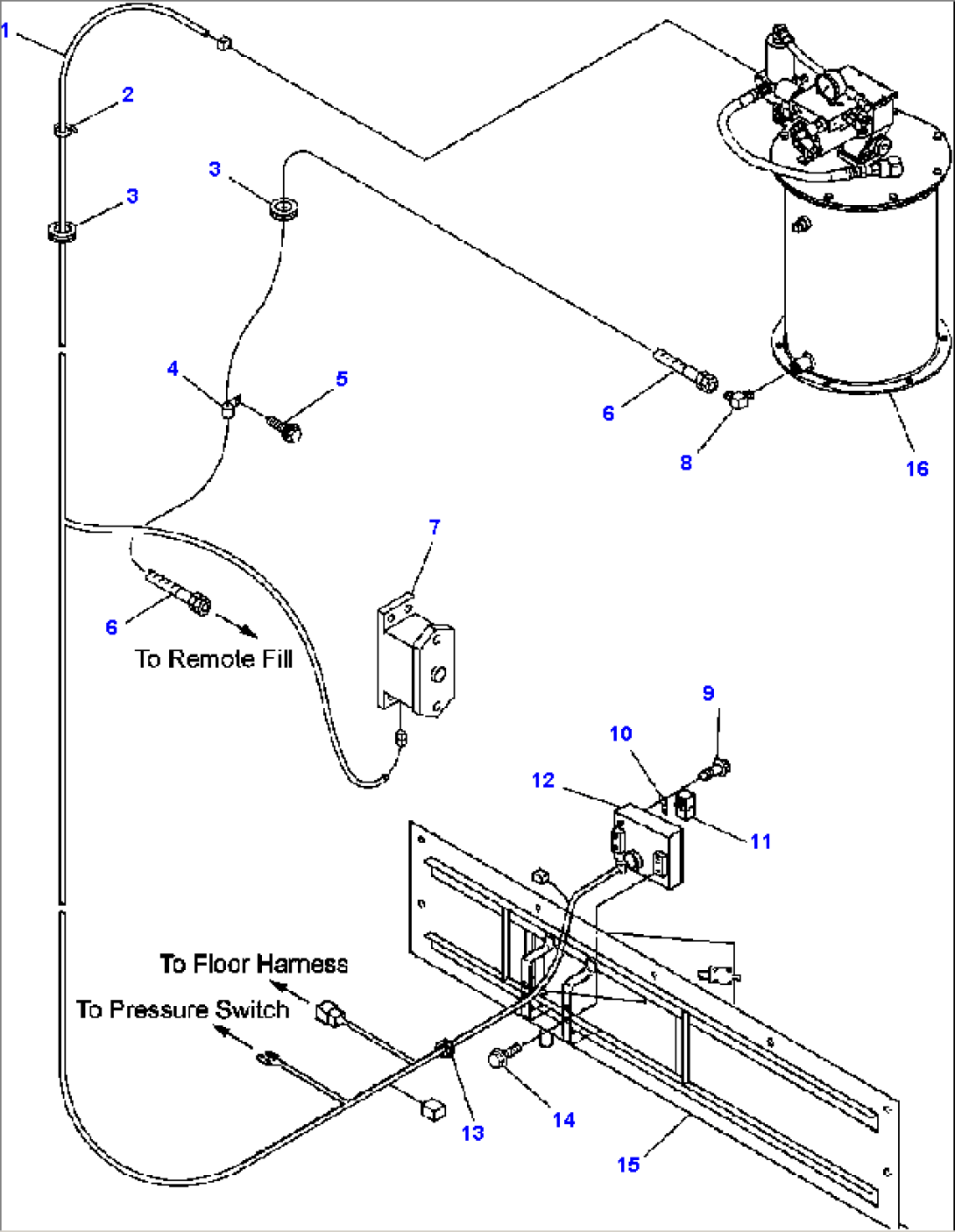

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-S95-A341 | WIRING HARNESS | A50001-- | |
| 08020-10000 | DIODE | A50001-- | ||
| 2 | 08034-20519 | BAND | A50001-- | |
| 3 | 08037-03614 | GROMMET | A50001-- | |
| 4 | 04434-52110 | CLIP | A50001-- | |
| 5 | 01435-01016 | BOLT | A50001-- | |
| 6 | 427-S95-4970 | HOSE | A50001-- | |
| 7 | REMOTE FILL KIT (SEE FIG. J4710-16A1 ) | A50001-- | ||
| 8 | 427-S95-4980 | ELBOW | A50001-- | |
| 9 | 01435-00612 | BOLT | A50001-- | |
| 10 | 287-06-16420 | BRACKET | A50001-- | |
| 11 | 569-06-61960 | RELAY | A50001-- | |
| 12 | 427-S95-4451 | BOX | A50001-- | |
| 13 | 08037-01610 | GROMMET | A50001-- | |
| 14 | 01435-01016 | BOLT | A50001-- | |
| 15 | COVER (SEE FIG. M4230-01A0 ) | A50001-- | ||
| 16 | LUBE PUMP AND CONTAINER ASSEMBLY (SEE FIG. J4710-15A1 ) | A50001-- |
