Item | Part No. | Part Name | Qty | Serial No. |

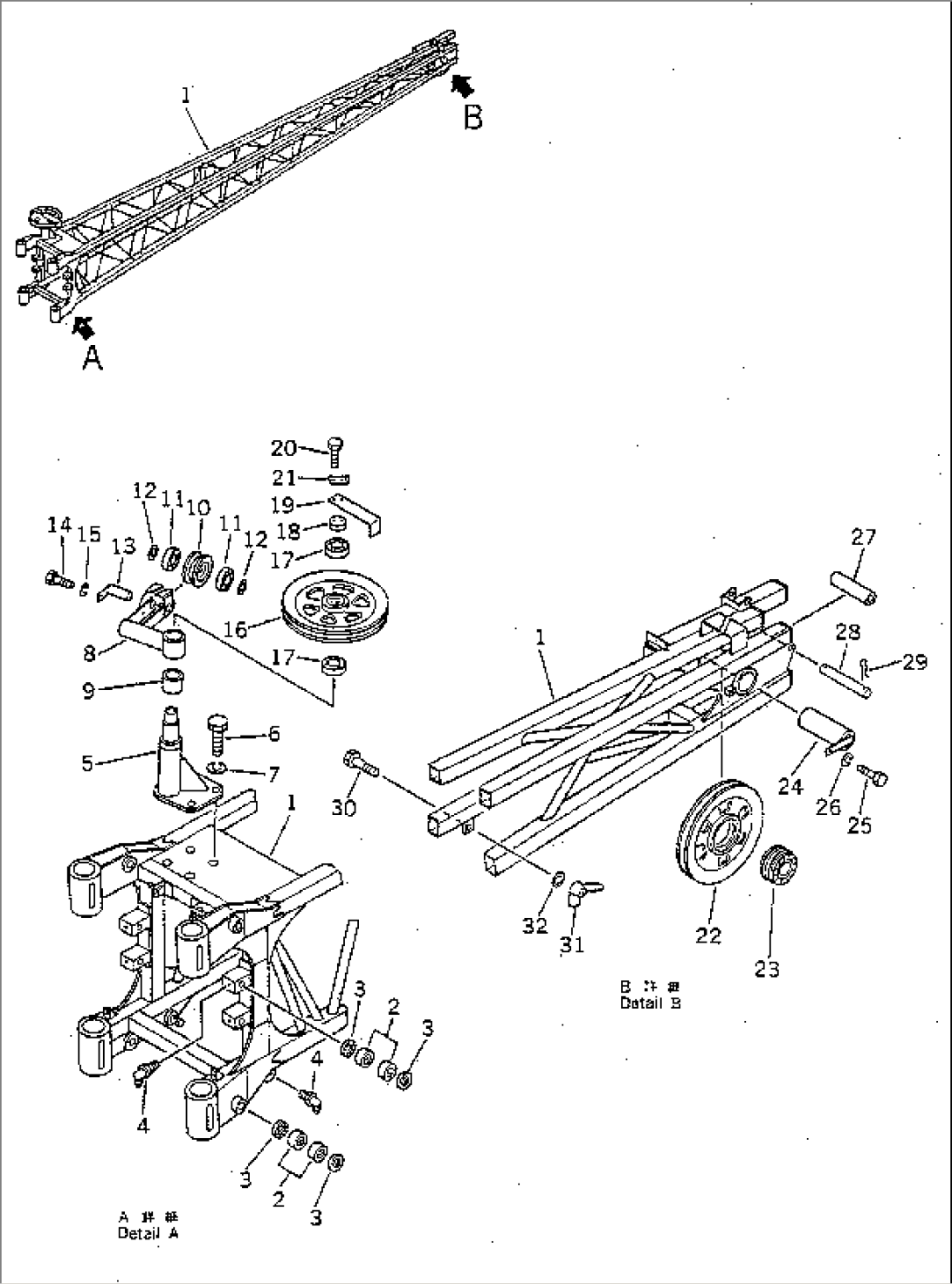

1 | 22W-70-14110 | JIB | 1001- | |
2 | 06120-02520 | BEARING | 1001- | |
3 | 06122-02504 | SEAL | 1001- | |
4 | 07020-00900 | FITTING | 1001- | |
5 | 22W-70-14510 | BRACKET | 1001- | |
6 | 01010-52040 | BOLT | 1001- | |
7 | 01602-22060 | WASHER | 1001- | |
22W-70-00110 | BRACKET ASS'Y | 1001- | ||
8 | \6\ | BRACKET | 1001- | |
9 | 07177-05030 | BUSHING | 1001- | |
10 | 22W-70-14550 | ROLLER | 1001- | |
11 | 06001-06006 | BEARING | 1001- | |
12 | 101-06-12140 | WASHER | 1001- | |
13 | 22W-70-14540 | PIN | 1001- | |
14 | 01010-51020 | BOLT | 1001- | |
15 | 01602-21030 | WASHER | 1001- | |
16 | 22W-70-14571 | SHEAVE | 1001- | |
17 | 06001-06007 | BEARING | 1001- | |
18 | 04080-03506 | HOLDER | 1001- | |
19 | 22W-70-14560 | PLATE | 1001- | |
20 | 01010-50825 | BOLT | 1001- | |
21 | 04081-03510 | LOCK | 1001- | |
22 | 22W-70-11611 | SHEAVE | 1001- | |
23 | 22W-70-11350 | BEARING | 1001- | |
24 | 22W-70-14610 | PIN | 1001- | |
25 | 01010-51020 | BOLT | 1001- | |
26 | 01602-21030 | WASHER | 1001- | |
27 | 22W-70-14590 | COLLAR | 1001- | |
28 | 22W-70-14580 | PIN | 1001- | |
29 | 04052-01664 | PIN | 1001- | |
30 | 01010-51280 | BOLT | 1001- | |
31 | 01541-21260 | NUT | 1001- | |
32 | 01641-21223 | WASHER | 1001- |
