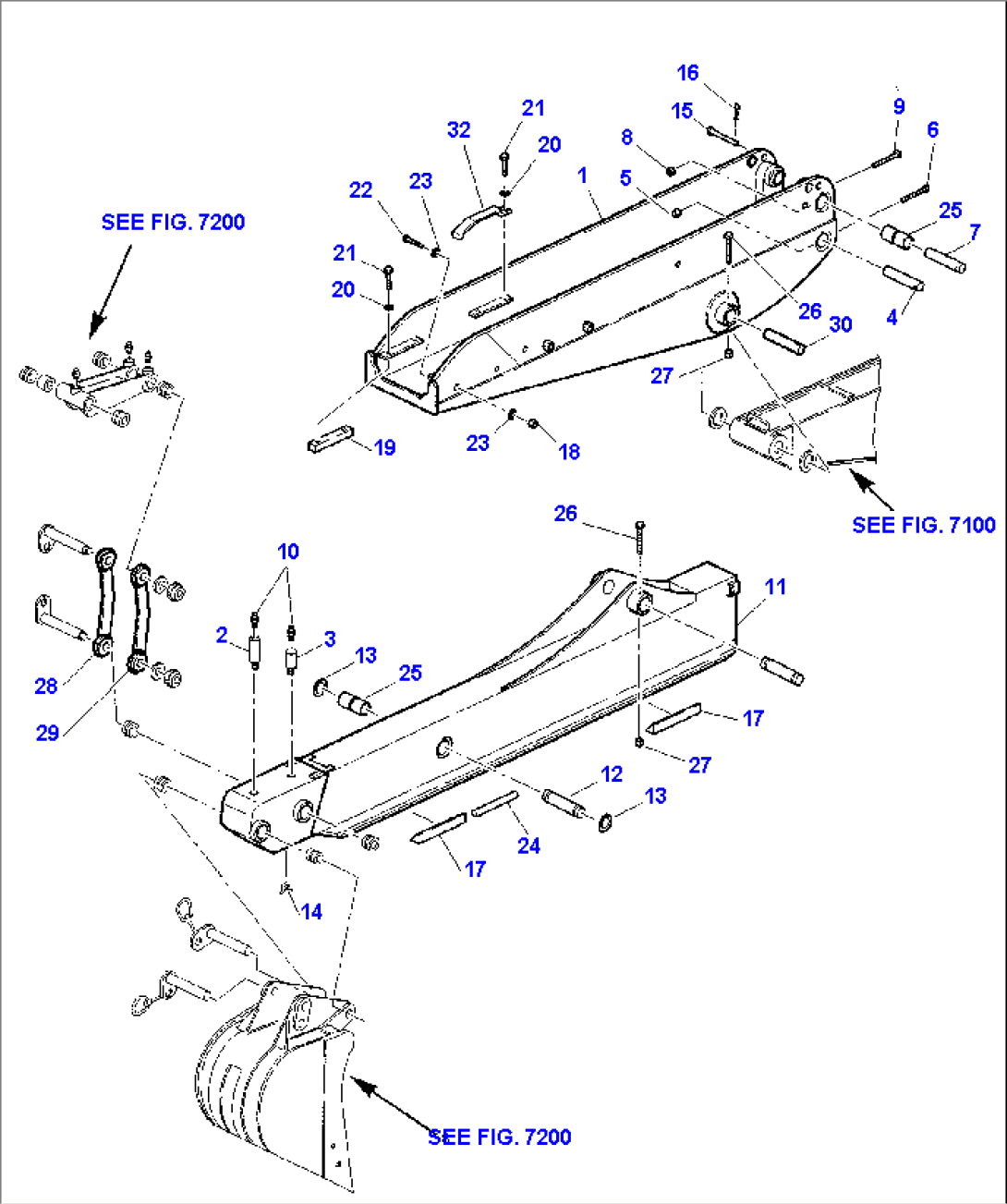

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312739050 | FIXED ARM | 15050001- | |
| 2 | 500044110 | EXTENSION | 15050001- | |
| 3 | 500044139 | EXTENSION | 15050001- | |
| 4 | 500322633 | PIN | 15050001- | |
| 5 | 801880001 | SELF-LOCKING NUT | 15050001- | |
| 6 | 801015569 | BOLT | 15050001- | |
| 7 | 500322638 | PIN | 15050001- | |
| 8 | 801880001 | SELF-LOCKING NUT | 15050001- | |
| 9 | 801015568 | BOLT | 15050001- | |
| 10 | 860010007 | FITTING | 15050001- | |
| 11 | 312739051 | MOVABLE ARM | 15050001- | |
| 12 | 500322645 | PIN | 15050001- | |
| 13 | 802250040 | SNAP RING | 15050001- | |
| 14 | 802610118 | COTTER | 15050001- | |
| 15 | 312339300 | PIN | 15050001- | |
| 16 | 802620103 | COTTER | 15050001- | |
| 17 | 312339610 | LOWER SLIDER | 15050001- | |
| 18 | 801920109 | NUT | 15050001- | |
| 19 | 312339604 | UPPER SLIDER | 15050001- | |
| 20 | 802150012 | SPRING WASHER | 15050001- | |
| 21 | 801015137 | BOLT | 15050001- | |
| 22 | 312439612 | BOLT | 15050001- | |
| 23 | 802070018 | WASHER | 15050001- | |
| 24 | 312739611 | CYLINDER | 15050001- | |
| 25 | 500217001 | BUSHING | 15050001- | |
| 26 | 801015566 | BOLT | 15050001- | |
| 27 | 801880001 | NUT | 15050001- | |
| 28 | 200200402 | LEVER, R.H. | 15050001- | |
| 29 | 200200403 | LEVER, L.H. | 15050001- | |
| 30 | 500322623 | PIN | 15050001- | |
| 31 | 500322614 | PIN | 15050001- | |
| 32 | 312739613 | PLATE | 15050001- | |
| SEE FIG. 7100 | ||||
| SEE FIG. 7200 |
