| Item | Part No. | Part Name | Qty | Serial No. |

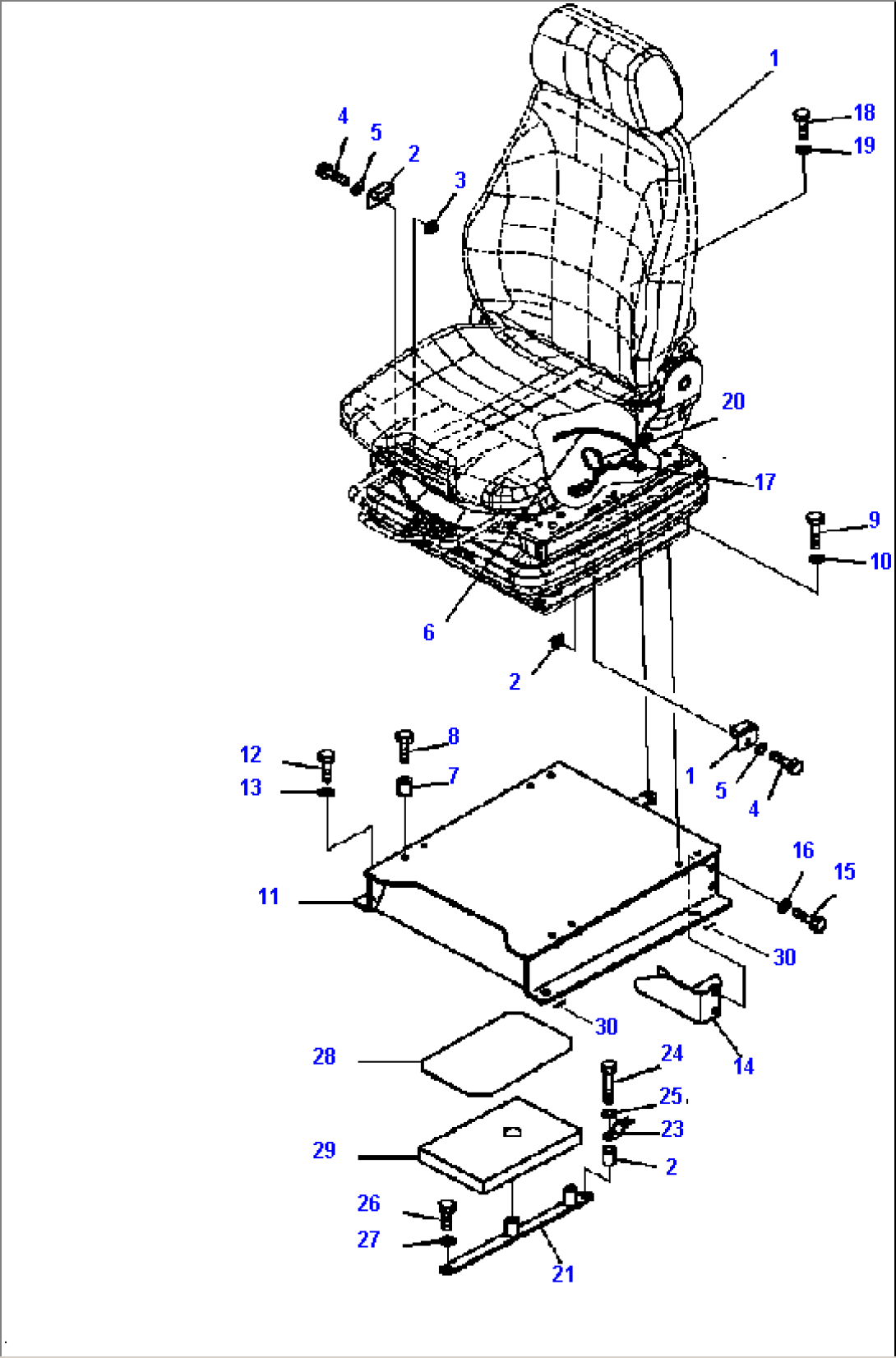

| 425-S33-3513 | SEAT ASSEMBLY | |||
| 1 | 426-57-21413 | SEAT | ||
| 2 | 428-S33-2752 | SPACER | ||
| 3 | 428-S33-2760 | PLATE | ||
| 4 | 01010-80816 | BOLT | ||
| 5 | 01643-30823 | WASHER | ||
| 6 | 08192-12810 | CONNECTOR | ||
| 7 | 11T-27-11180 | SPACER | ||
| 8 | 426-57-31140 | BOLT | ||
| 9 | 01024-D0835 | BOLT | ||
| 10 | 01643-70823 | WASHER | ||
| 11 | 428-S33-4111 | BRACKET | ||
| 12 | 01010-81230 | BOLT | ||
| 13 | 01643-31232 | WASHER | ||
| 14 | 428-S33-4131 | BRACKET | ||
| 15 | 01010-81025 | BOLT | ||
| 16 | 01643-31032 | WASHER | ||
| 17 | 04434-50812 | CLIP | ||
| 18 | 01010-81025 | BOLT | ||
| 19 | 01643-31032 | WASHER | ||
| 20 | 935 522 C1 | TIE, NYLON | ||
| 21 | 428-S33-4121 | BRACKET | ||
| 22 | 427-03-10370 | SPACER | ||
| 23 | 08193-21012 | CLIP | ||
| 24 | 01010-81060 | BOLT | ||
| 25 | 01643-31032 | WASHER | ||
| 26 | 01010-81025 | BOLT | ||
| 27 | 01643-31032 | WASHER | ||
| 28 | 423-S33-4260 | SHEET | ||
| 29 | 423-S33-4270 | SHEET | ||
| 30 | 421-57-31190 | SHIM, 0.50 MM |
