| Item | Part No. | Part Name | Qty | Serial No. |
| ROPS CAB ASSEMBLY WITH KOMTRAX (SEE FIG. K0200-01A0 ) | A11001-A11184- | |||

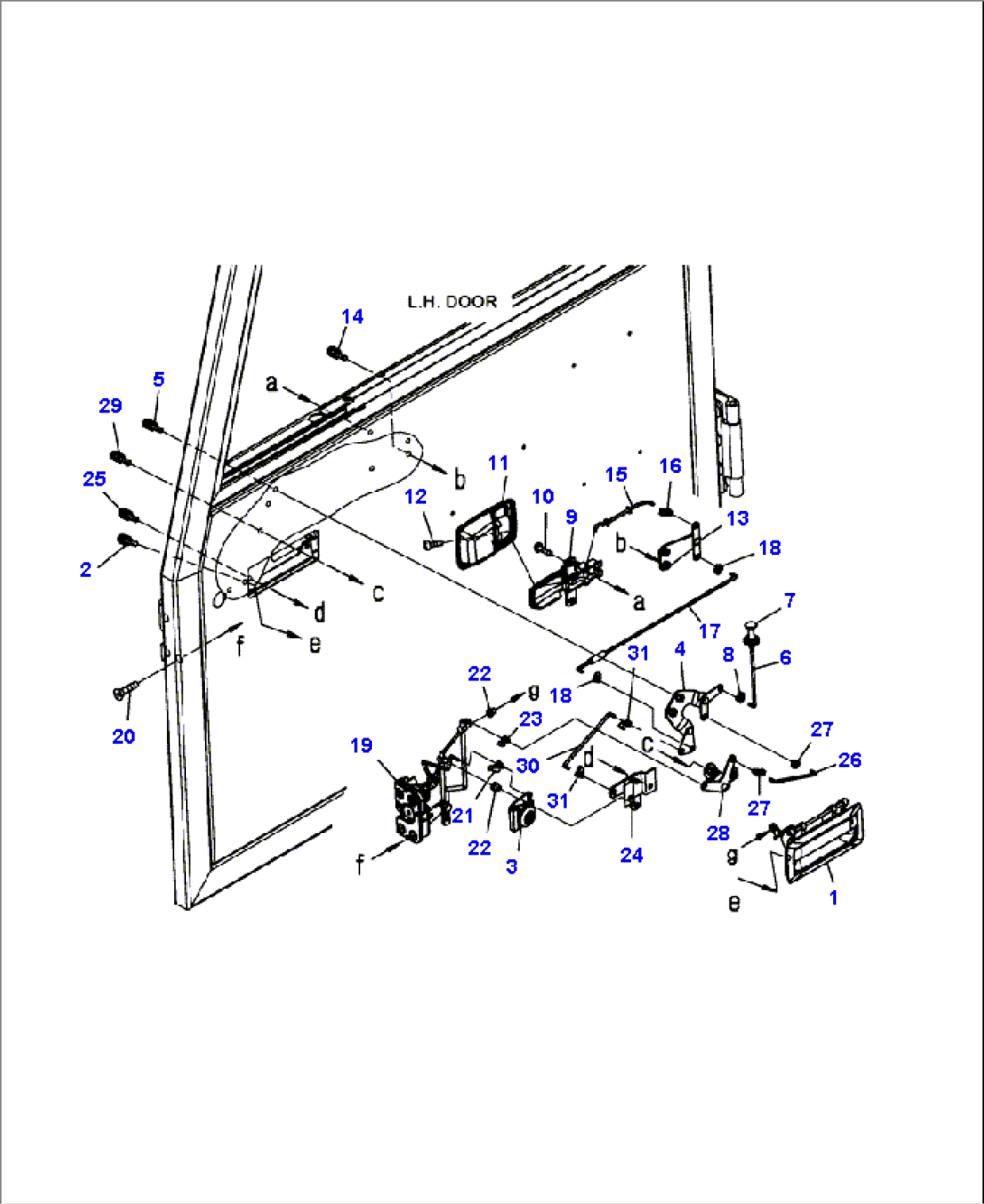

| DOOR ASSEMBLY, L.H. (SEE FIG. K0200-02A0 ) | A11001-A11184- | |||
| 1 | 56B-54-14260 | HANDLE | A11001-A11184- | |
| 2 | 01023-60612 | SCREW | A11001-A11184- | |
| 3 | 427-56-11790 | LOCK ASSEMBLY | A11001-A11184- | |
| 4 | 561-54-84410 | BRACKET | A11001-A11184- | |
| 5 | 01023-60616 | SCREW | A11001-A11184- | |
| 6 | 561-54-84251 | ROD | A11001-A11184- | |
| 7 | 419-54-16880 | KNOB | A11001-A11184- | |
| 8 | 421-56-11611 | HOOK | A11001-A11184- | |
| 9 | 421-56-11550 | HANDLE | A11001-A11184- | |
| 10 | 01245-00616 | SCREW | A11001-A11184- | |
| 11 | 421-56-11560 | COVER | A11001-A11184- | |
| 12 | 01370-00410 | SCREW | A11001-A11184- | |
| 13 | 56E-54-24190 | BRACKET | A11001-A11184- | |
| 14 | 01023-60616 | SCREW | A11001-A11184- | |
| 15 | 423-56-21230 | ROD | A11001-A11184- | |
| 16 | 421-56-11611 | HOOK | A11001-A11184- | |
| 17 | 56E-54-24291 | ROD | A11001-A11184- | |
| 18 | 421-56-11611 | HOOK | A11001-A11184- | |
| 19 | 561-54-84151 | LOCK | A11001-A11184- | |
| 20 | 01224-70616 | SCREW | A11001-A11184- | |
| 21 | 205-54-71830 | SNAP | A11001-A11184- | |
| 22 | 22B-54-16340 | SNAP | A11001-A11184- | |
| 23 | 421-56-11611 | HOOK | A11001-A11184- | |
| 24 | 561-54-84430 | LINK ASSEMBLY | A11001-A11184- | |
| 25 | 01023-60616 | SCREW | A11001-A11184- | |
| 26 | 561-54-84170 | ROD | A11001-A11184- | |
| 27 | 421-56-11611 | HOOK | A11001-A11184- | |
| 28 | 561-54-84160 | LEVER | A11001-A11184- | |
| 29 | 01023-60616 | SCREW | A11001-A11184- | |
| 30 | 561-54-84181 | ROD | A11001-A11184- | |
| 31 | 421-56-11611 | HOOK | A11001-A11184- |
