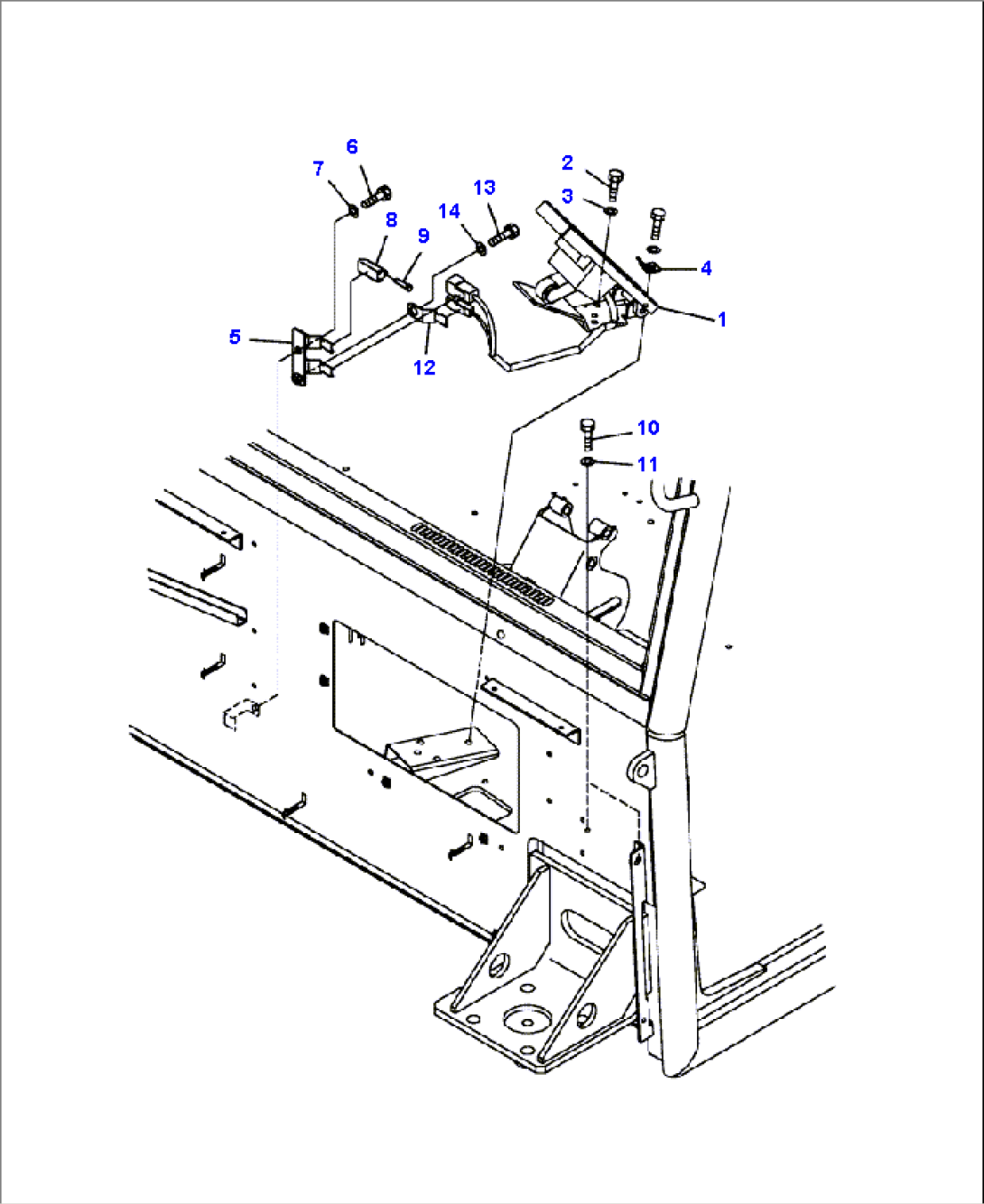

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PEDAL ASSEMBLY (SEE FIG. K0200-17A0 ) | A11001-A11184- | ||
| 2 | 01010-80820 | BOLT | A11001-A11184- | |
| 3 | 01643-30823 | WASHER | A11001-A11184- | |
| 4 | 426-43-31211 | PLATE | A11001-A11184- | |
| 5 | 56B-06-26371 | BRACKET | A11001-A11184- | |
| 6 | 01010-80816 | BOLT | A11001-A11184- | |
| 7 | 01643-30823 | WASHER | A11001-A11184- | |
| 8 | (NSS) | CONNECTOR | A11001-A11184- | |
| 9 | 08191-00770 | PLUG | A11001-A11184- | |
| 10 | 01010-80816 | BOLT | A11001-A11184- | |
| 11 | 01643-30823 | WASHER | A11001-A11184- | |
| 12 | 08193-20010 | CLIP | A11001-A11184- | |
| 13 | 01010-80816 | BOLT | A11001-A11184- | |
| 14 | 01643-30823 | WASHER | A11001-A11184- |
