| Item | Part No. | Part Name | Qty | Serial No. |

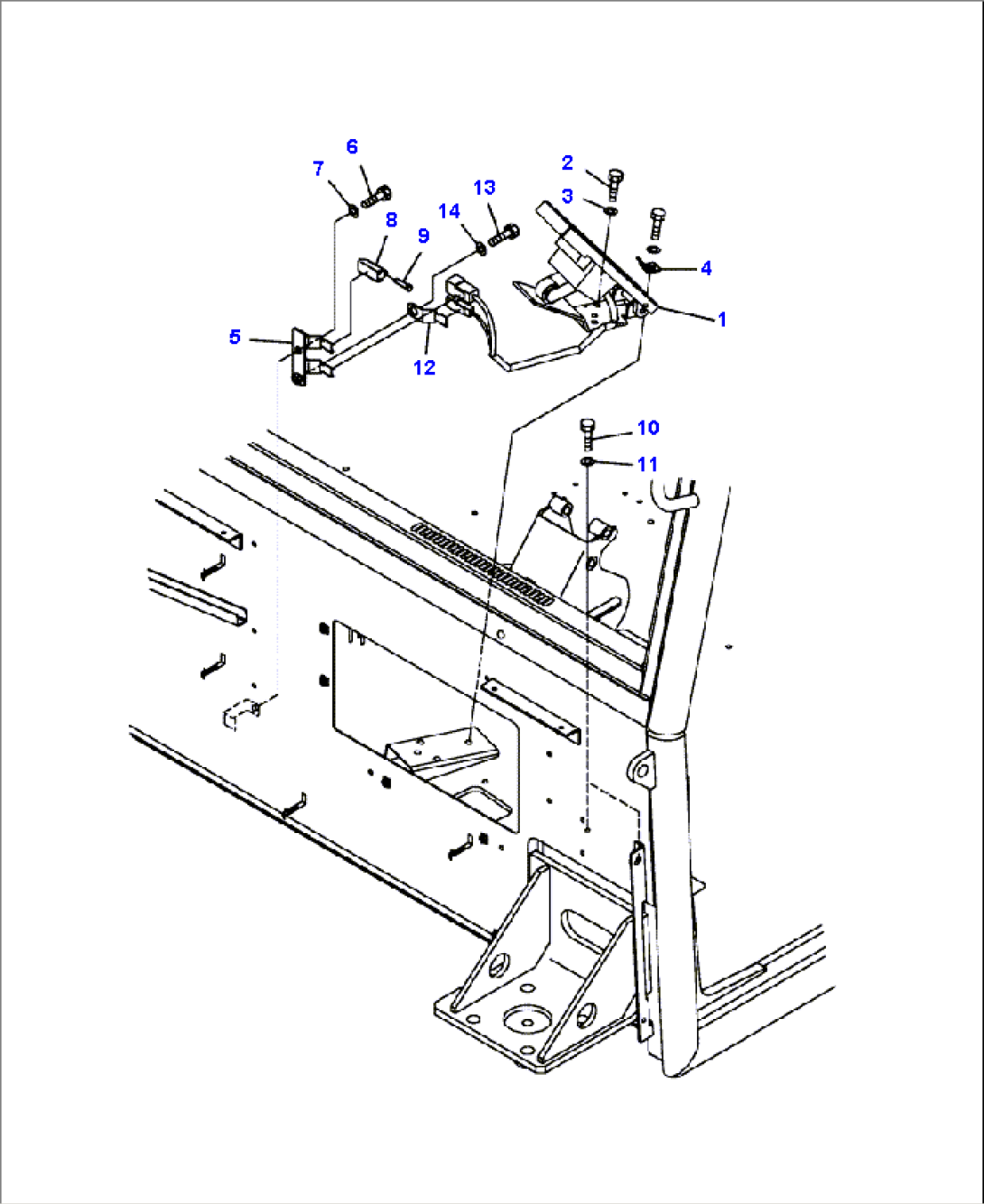

| 1 | PEDAL ASSEMBLY (SEE FIG. K0200-17A0A ) | A11185-- | ||
| 2 | 01010-80820 | BOLT | A11185-- | |
| 3 | 01643-30823 | WASHER | A11185-- | |
| 4 | 42C-54-22330 | PLATE | A11185-- | |
| 5 | 56B-06-26371 | BRACKET | A11185-- | |
| 6 | 01010-80816 | BOLT | A11185-- | |
| 7 | 01643-30823 | WASHER | A11185-- | |
| 8 | 08192-23810 | CONNECTOR | A11185-- | |
| 9 | 08191-00770 | PLUG | A11185-- | |
| 10 | 01010-80816 | BOLT | A11185-- | |
| 11 | 01643-30823 | WASHER | A11185-- | |
| 12 | 08193-20010 | CLIP | A11185-- | |
| 13 | 01010-80816 | BOLT | A11185-- | |
| 14 | 01643-30823 | WASHER | A11185-- |
