| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 702-16-07022 | PEDAL ASSEMBLY | ||
| 2 | 702-16-74120 | CLIP | ||
| 3 | 702-16-73960 | COVER | ||
| 4 | 702-16-73950 | PLATE | ||
| 5 | 702-16-74130 | BOLT | ||
| 6 | 702-16-74150 | SCREW | ||
| 7 | 01640-20408 | WASHER | ||
| 8 | 702-16-74160 | SPACER, T= 3.5 MM |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 2 s/n a11001 up
- Operator\xd5 s compartment and control system
- K0200 18b0 floor accelerator pedal
Поиск по каталогу

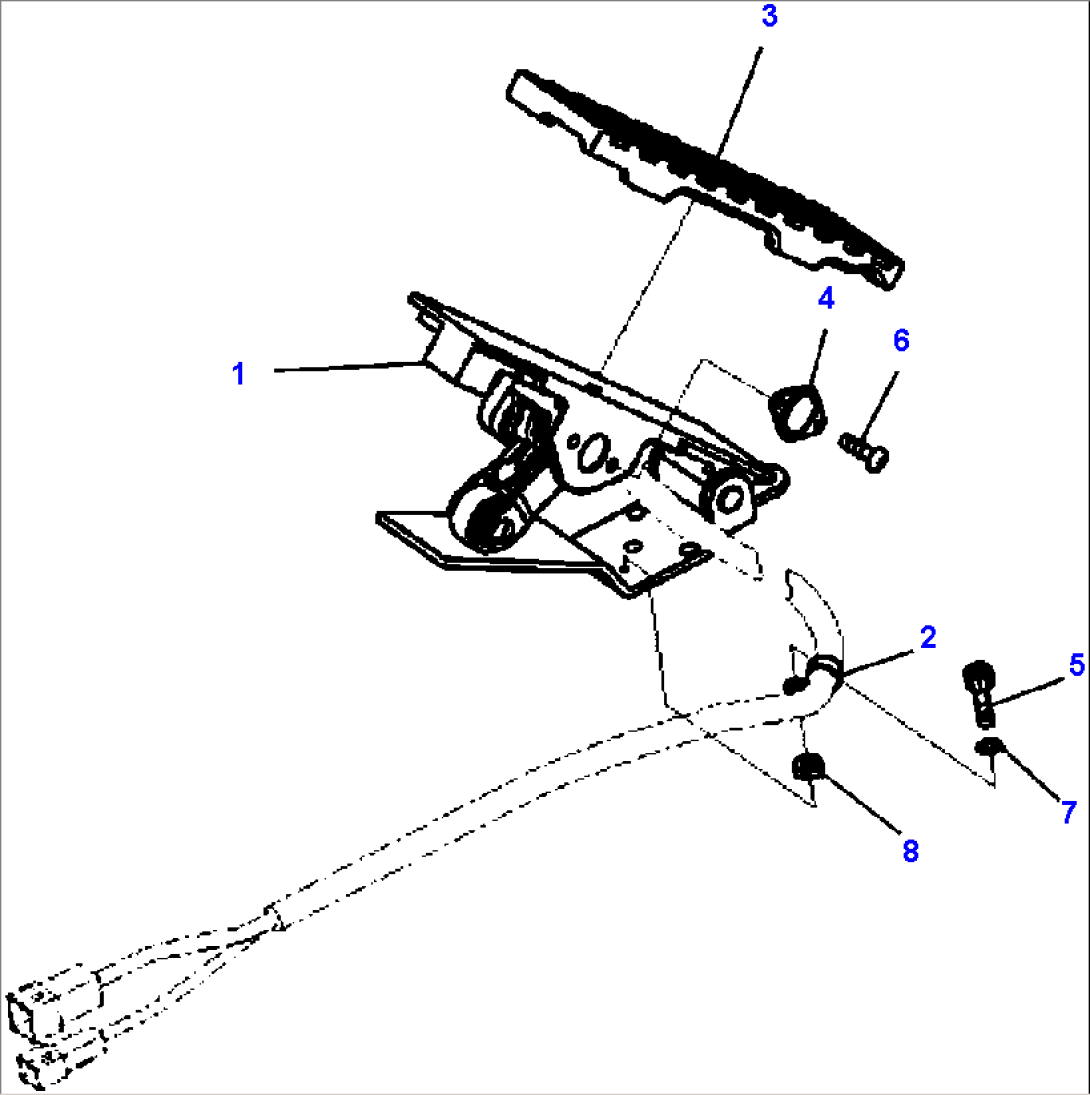

K0200-18B0 FLOOR ACCELERATOR PEDAL
