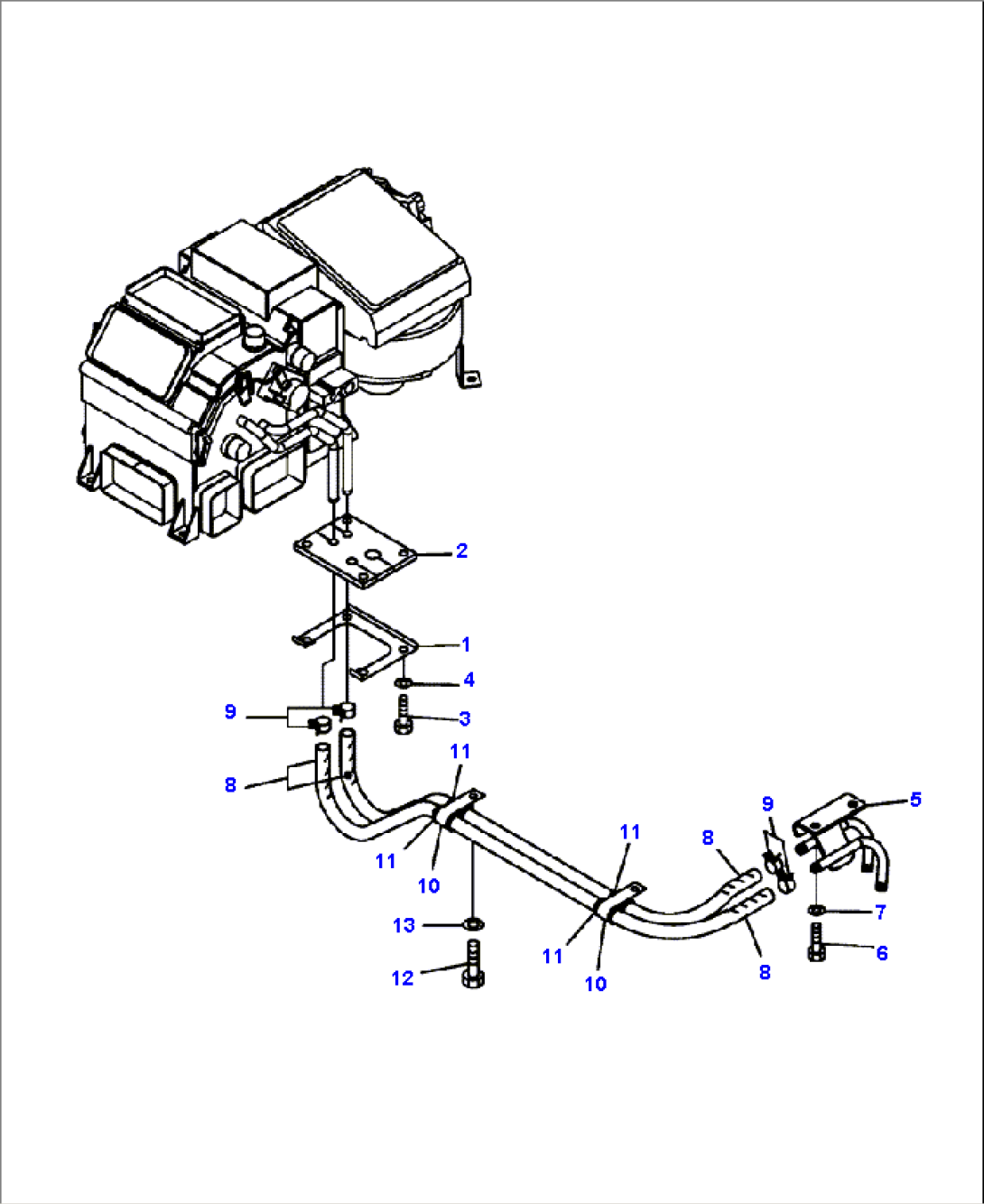

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56E-07-22481 | PLATE | A11001-- | |
| 2 | 56E-07-22490 | SHEET | A11001-- | |
| 3 | 01010-80612 | BOLT | A11001-- | |
| 4 | 01643-30623 | WASHER | A11001-- | |
| 5 | 56B-07-22470 | BRACKET | A11001-- | |
| 6 | 01010-80620 | BOLT | A11001-- | |
| 7 | 01643-30623 | WASHER | A11001-- | |
| 8 | 09483-10412 | HOSE | A11001-- | |
| 9 | 11Y-09-11160 | CLIP | A11001-- | |
| 10 | 582-35-11170 | CLIP | A11001-- | |
| 11 | 07095-20420 | CUSHION | A11001-- | |
| 12 | 01010-81016 | BOLT | A11001-- | |
| 13 | 01643-31032 | WASHER | A11001-- |
