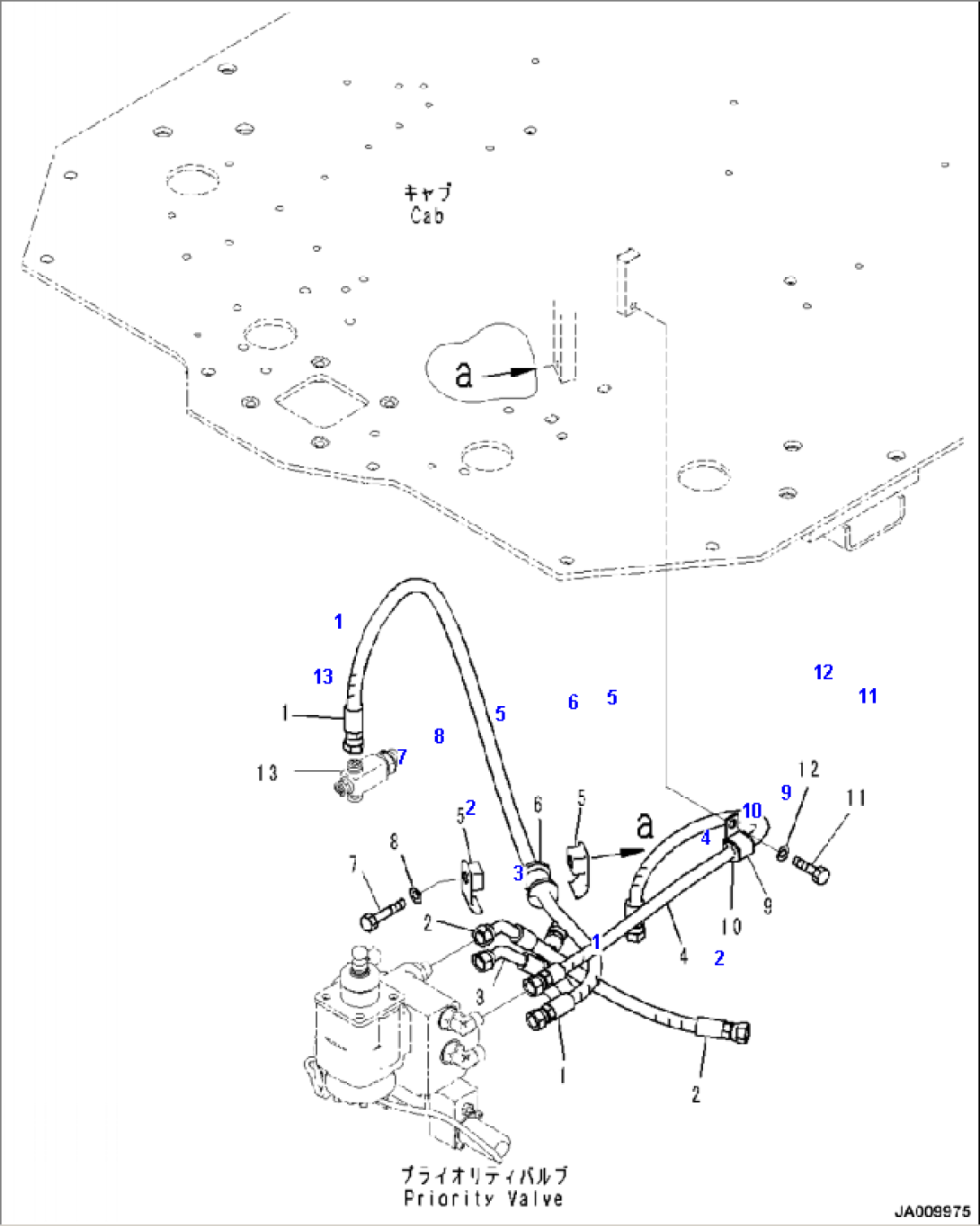

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-S33-4641 | HOSE | ||
| 2 | 425-S33-4630 | HOSE | ||
| 3 | 425-S33-3650 | HOSE | ||
| 20Y-62-22790 | BAND, RED | |||
| 4 | 425-S33-4660 | HOSE | ||
| 5 | 22P-62-13510 | CLAMP | ||
| 6 | 07095-00318 | CUSHION | ||
| 7 | 01010-81260 | BOLT | ||
| 8 | 01643-31232 | WASHER | ||
| 9 | 04434-52210 | CLIP | ||
| 10 | 07095-20314 | CUSHION | ||
| 11 | 01010-81020 | BOLT | ||
| 12 | 01643-31032 | WASHER | ||
| 13 | TEE ( SEE FIG. K4470-001005 ) |
