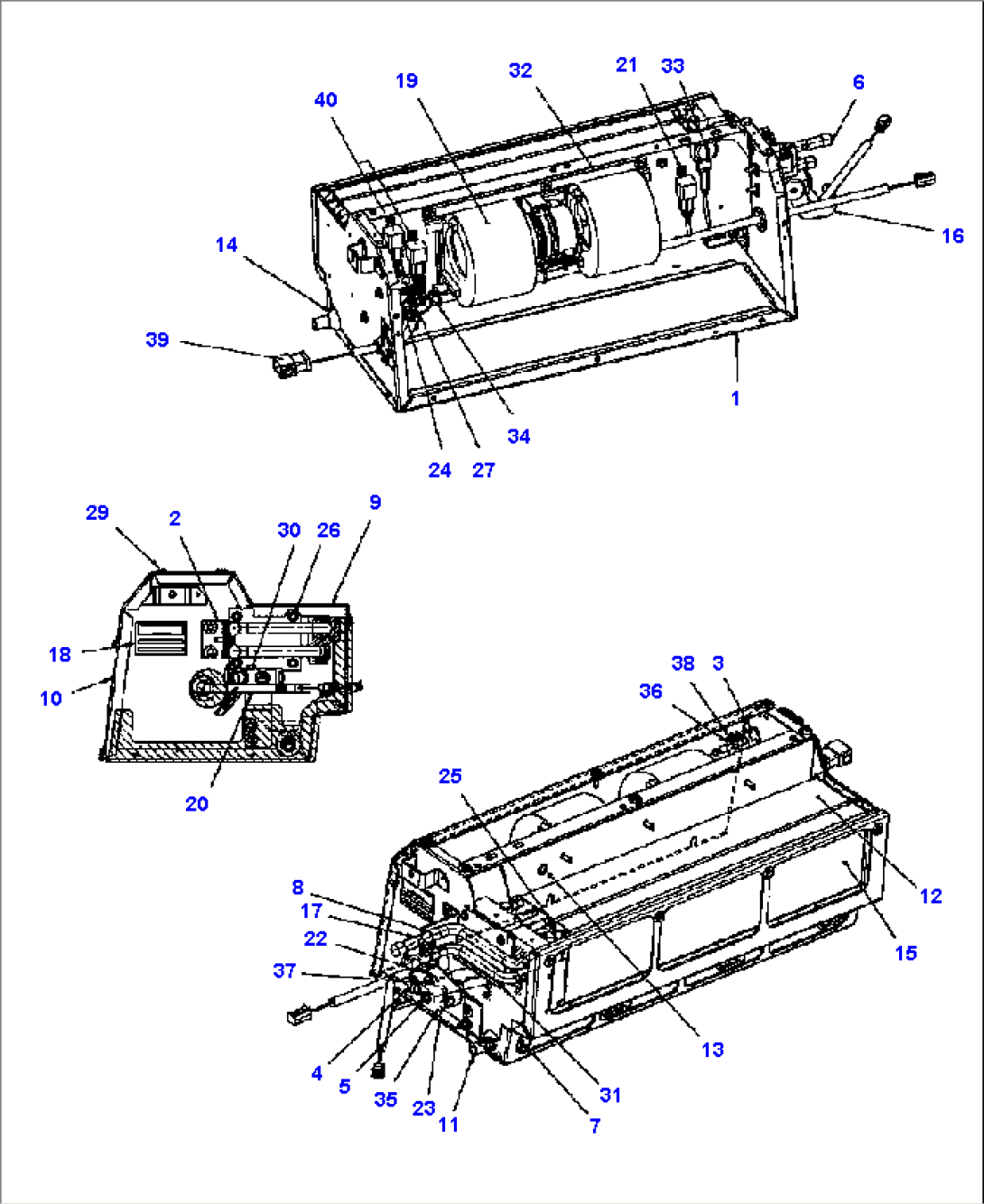

| Item | Part No. | Part Name | Qty | Serial No. |
| (12Y-978-0191) | CAB ASSEMBLY | | B11916- |
| | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS. K0210-01A0 TO K0210-18A0. | | |
| 12Y-979-2611 | AIR CONDITIONER ASSEMBLY | | B13001- |
| \0\12Y-979-2610 | AIR CONDITIONER ASSEMBLY | | B11916-B13000 |
| 1 | RD-3-14901-0 | HOUSING ASSEMBLY | | B11916- |
| 2 | RD-3-11753-0 | BRACKET ASS'Y, PLUMBING SUPPORT | | B11916- |
| 3 | RD-3-12262-0 | BRACKET ASS'Y, RESISTOR | | B11916- |
| 4 | RD-5-7176-0 | CAP | | B11916- |
| 5 | RD-5-6564-0 | CAP | | B11916- |
| 6 | RD-5-4582-0 | CAP | | B11916- |
| 7 | RD-5-6666-0 | CLAMP, HOSE | | B11916- |
| 8 | RD-5-6912-0 | CLAMP, TUBE | | B11916- |
| 9 | RD-3-11518-0 | COVER, HOUSNG, FRONT | | B11916- |
| 10 | RD-3-11519-0 | COVER, REAR | | B11916- |
| 11 | RD-5-11988-78.74 | EPDM, DRAIN, TUBING | | B11916- |
| 12 | RD-2-4087-0 | EVAPORATOR ASS'Y | | B11916- |
| 13 | RD-5-8250-0 | GROMMET | | B11916- |
| 14 | RD-5-7710-0 | GROMMET, HOSE, DRAIN | | B11916- |
| 15 | RD-1-2567-0 | HEATER CORE ASS'Y | | B11916- |
| 16 | RD-3-11536-0 | BRACKET | | B11916- |
| 17 | RD-5-3880-0 | LABEL, INLET | | B11916- |
| 18 | RD-5-4606-0 | LABEL, QUALITY AUDITED | | B11916- |
| 19 | RD-5-9204-3 | MOTOR BLOWER ASS'Y | | B11916- |
| 20 | RD-5-5679-0 | NUT, CLIP | | B11916- |
| 21 | RD-5-7633-0 | NUT, CONICAL WASHER | | B11916- |
| 22 | RD-5-4017-015 | O-RING, GREEN HNBRM No 10 | | B11916- |
| 23 | RD-5-4017-013 | O-RING, GREEN HNBR, No 8 | | B11916- |
| 24 | RD-5-9062-0 | RESISTOR, CERAMIC | | B11916- |
| 25 | RD-5-4089-0 | RETAINER, CLIP | | B11916- |
| 26 | RD-5-7212-1-.375 | SCREW | | B11916- |
| 27 | RD-5-4061-0-7.500 | SCREW | | B11916- |
| 28 | RD-5-8222-1-16 | SCREW - NOT SHOWN ON ILLUSTRATION | | B11916- |
| 29 | RD-5-8222-1-22 | SCREW | | B11916- |
| 30 | RD-5-5743-0-40 | SCREW | | B11916- |
| 31 | RD-3-11485-0 | SEAL, PLUMBING | | B11916- |
| 32 | RD-3-11762-0 | SUPPORT, BLOWER | | B11916- |
| 33 | RD-5-4531-24 | THERMOSTAT, SIDE & BTM MOUNTED | | B11916- |
| 34 | RD-4520-0 | TIE, NYLON CABLE, PUSHING | | B11916- |
| 35 | RD-5-9513-0 | VALVE, EXPANSION, ANTI-TRUMPETING (2TON) | | B11916- |
| 36 | RD-5-8666-0 | WASHER, CERAMIC RESISTOR | | B11916- |
| 37 | RD-5-6622-0 | WASHER, FLAT | | B11916- |
| 38 | RD-5-8351-0 | WASHER, RUBBER | | B11916- |
| 39 | RD-3-14894-0 | WIRING, HARNESS | | B11916- |
| 40 | RD-5-4417-0 | RELAY | | B11916- |
