| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-979-7540 | COLLAR | A47001-- | |
| 2 | 01010-80830 | BOLT | A47001-- | |
| 3 | 01643-30823 | WASHER | A47001-- | |
| 4 | 935 522 C1 | TIE, NYLON | A47001-- | |
| 5 | 08037-12036 | GROMMET | A47001-- | |
| 6 | HOSE (SEE FIG. K0711-02A0) | A47001-- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n a47001 up
- Operator\xd5 s compartment and control system
- K0210 16a0 rops cab air conditioner unit mounting
Поиск по каталогу

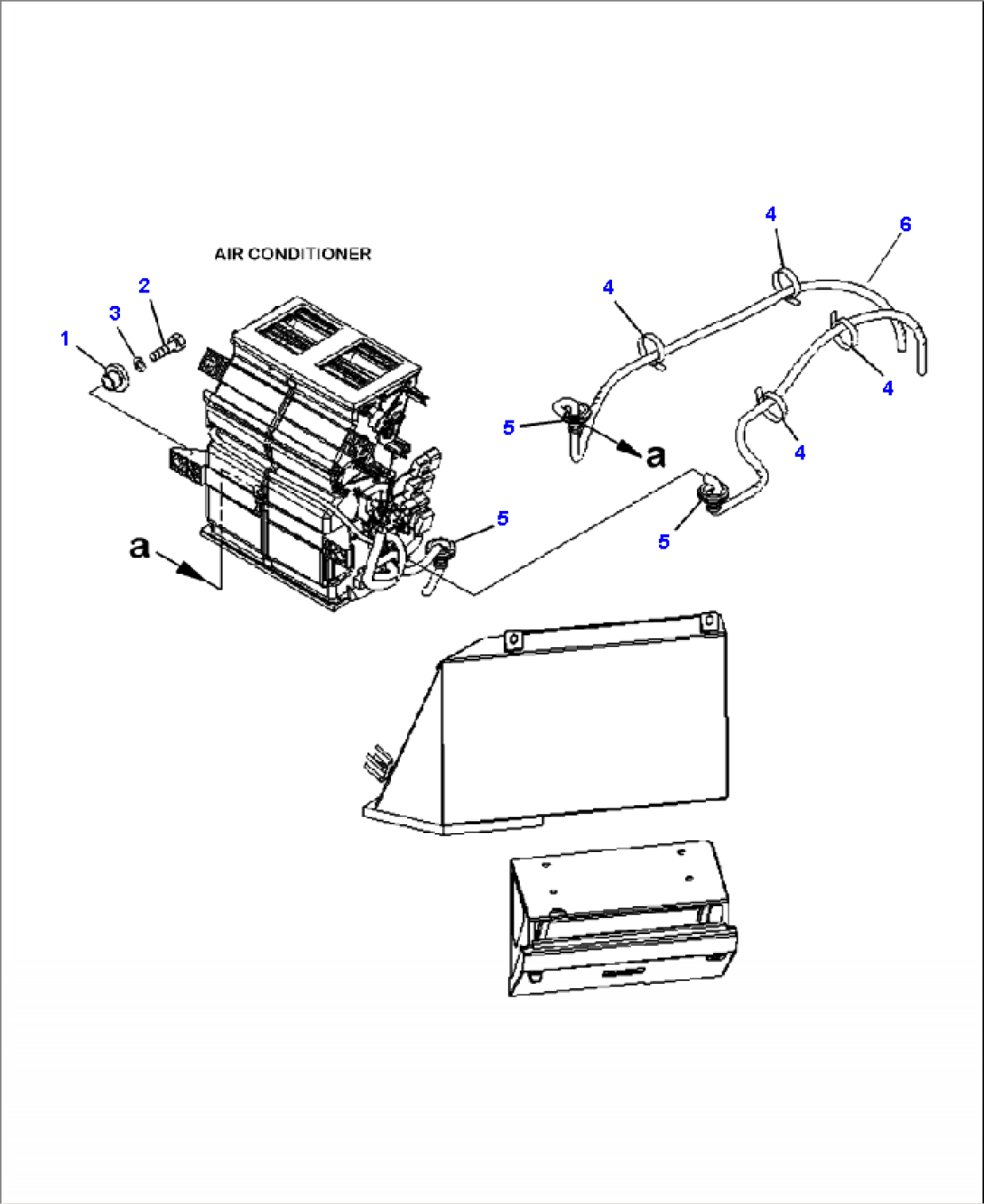

K0210-16A0 ROPS CAB AIR CONDITIONER UNIT MOUNTING
