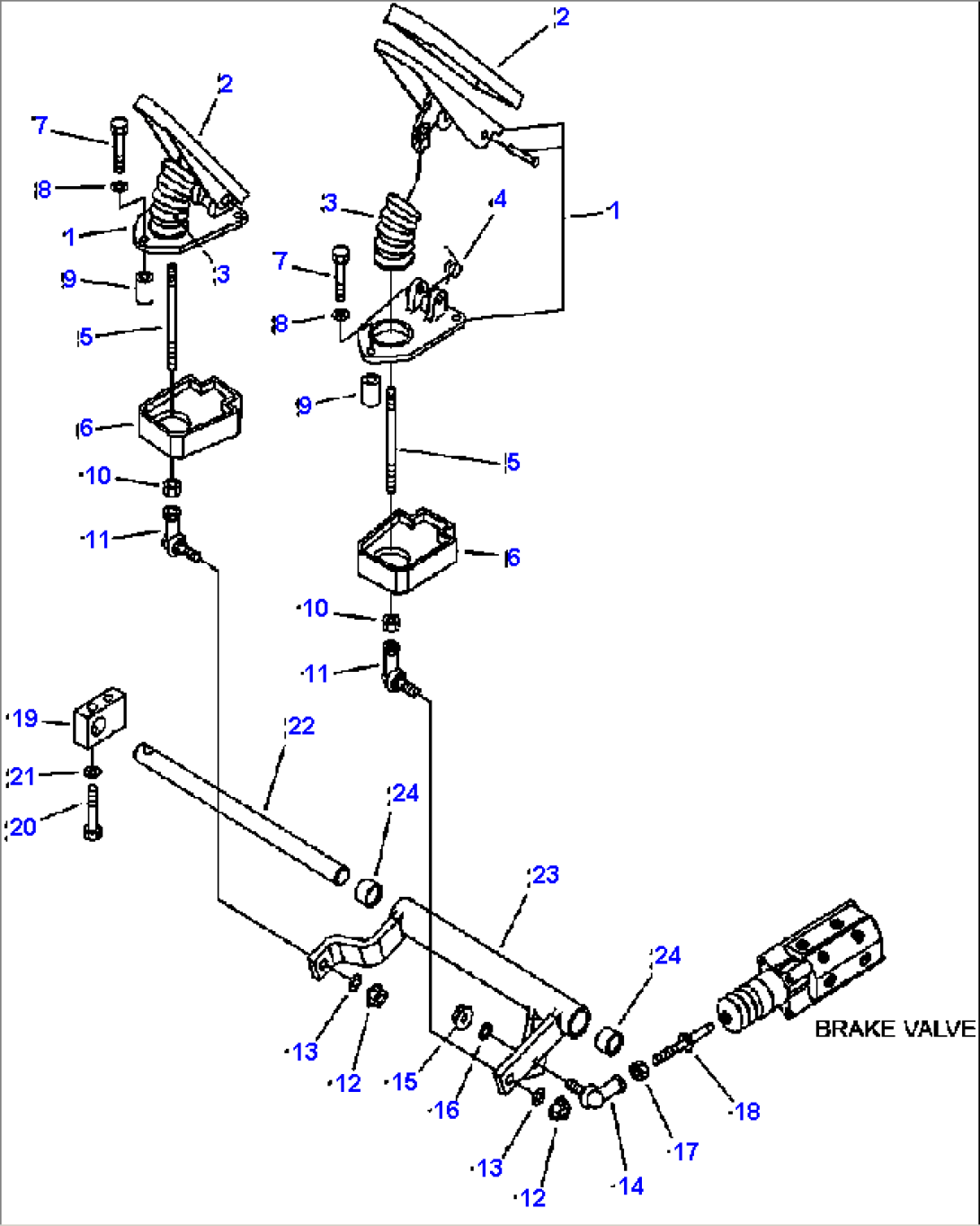

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-43-27191 | PEDAL | A45001-- | |
| 2 | 363-43-37410 | PAD | A45001-- | |
| 3 | 417-43-27410 | BOOT | A45001-- | |
| 4 | 417-43-27420 | SPRING | A45001-- | |
| 5 | 418-43-27140 | ROD | A45001-- | |
| 6 | 423-43-47361 | SHEET | A45001-- | |
| 7 | 01010-81065 | BOLT | A45001-- | |
| 8 | 01643-31032 | WASHER | A45001-- | |
| 9 | 423-43-47350 | SPACER | A45001-- | |
| 10 | 01582-11210 | NUT | A45001-- | |
| 11 | 04256-41230 | JOINT | A45001-- | |
| 12 | 01595-01210 | NUT | A45001-- | |
| 13 | 01643-31232 | WASHER | A45001-- | |
| 14 | 04256-41230 | JOINT | A45001-- | |
| 15 | 01595-01210 | NUT | A45001-- | |
| 16 | 01643-31232 | WASHER | A45001-- | |
| 17 | 01582-11210 | NUT | A45001-- | |
| 18 | 418-43-37140 | ROD | A45001-- | |
| 19 | 418-43-37130 | PLATE | A45001-- | |
| 20 | 01010-81270 | BOLT | A45001-- | |
| 21 | 01643-31232 | WASHER | A45001-- | |
| 22 | 417-43-27120 | SHAFT | A45001-- | |
| 23 | 423-43-47341 | LEVER | A45001-- | |
| 24 | 06124-02520 | BEARING | A45001-- |
