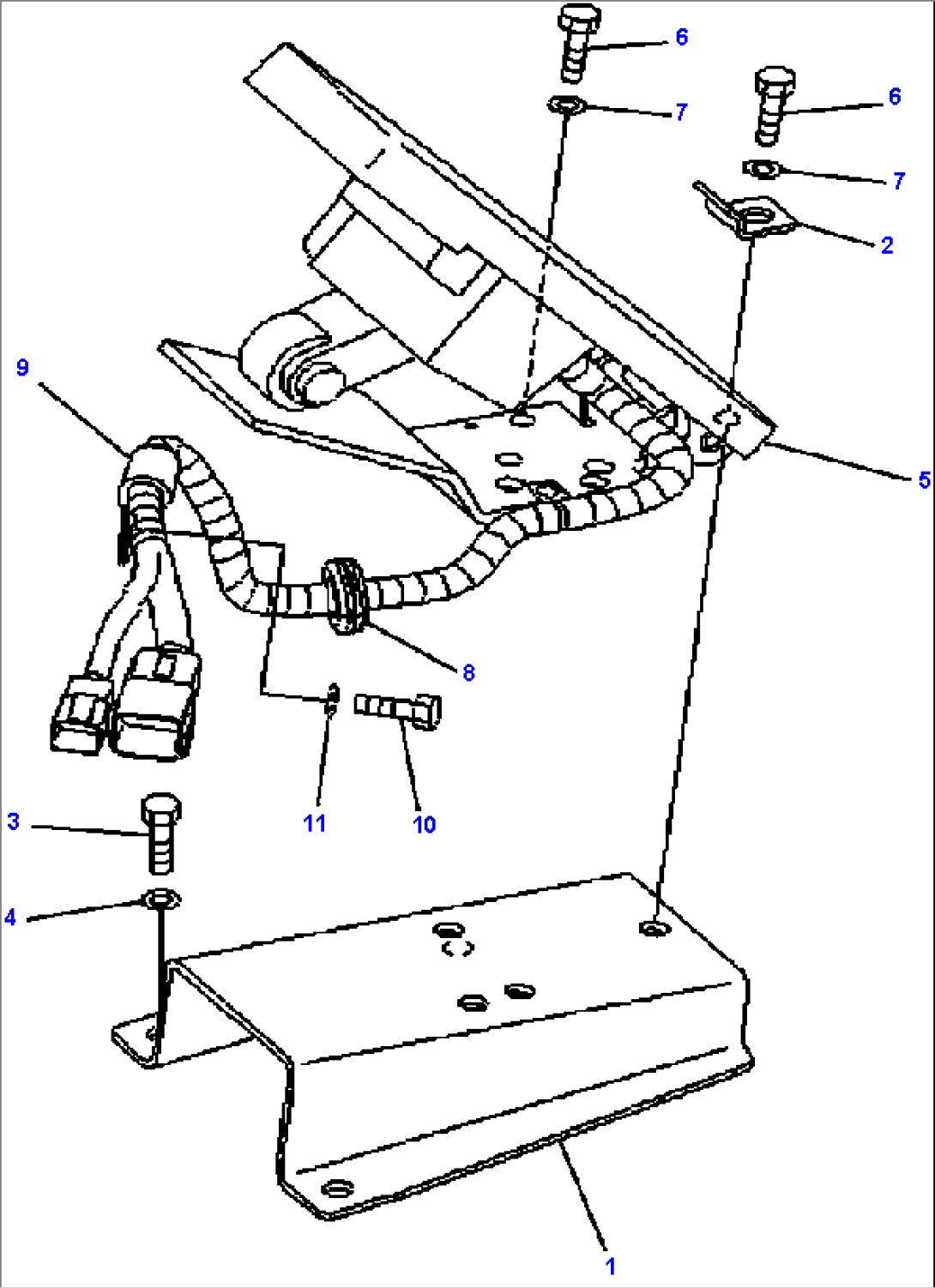

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-43-42410 | BRACKET | A45001-- | |
| 2 | 42C-54-22330 | PLATE | A45001-- | |
| 3 | 01010-80820 | BOLT | A45001-- | |
| 4 | 01643-30823 | WASHER | A45001-- | |
| 5 | PEDAL ASSEMBLY (SEE FIG. K0210-24A0) | A45001-- | ||
| 6 | 01010-80820 | BOLT | A45001-- | |
| 7 | 01643-30823 | WASHER | A45001-- | |
| 8 | 22W-22-17460 | GROMMET | A45001-- | |
| 9 | 04434-51210 | CLIP | A45001-- | |
| 10 | 01010-81016 | BOLT | A45001-- | |
| 11 | 01643-31032 | WASHER | A45001-- |
