| Item | Part No. | Part Name | Qty | Serial No. |

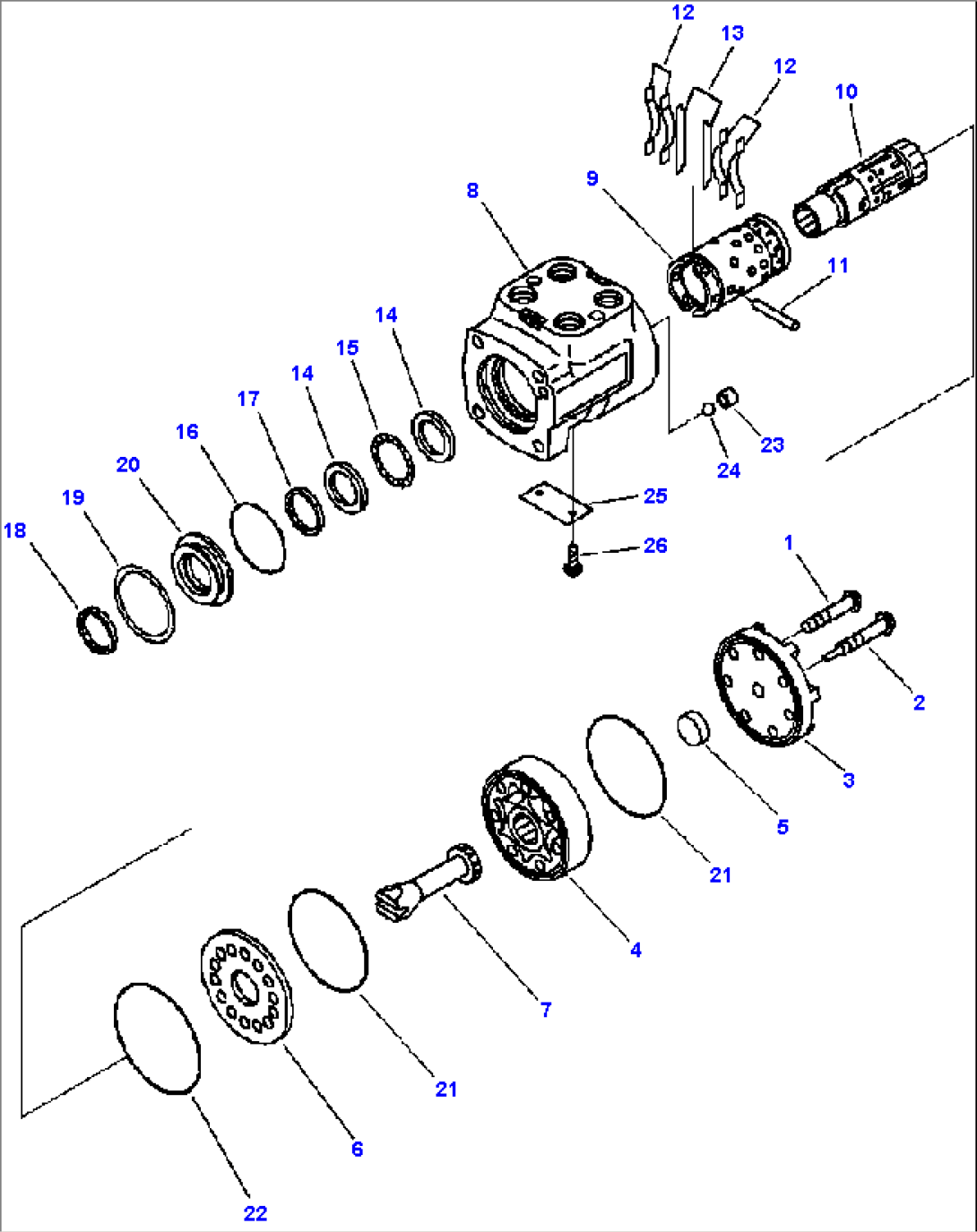

| 423-64-45601 | VALVE, ORBITROL STEERING | A45001-- | ||
| 1 | (NSS) | SCREW | A45001-- | |
| 2 | (NSS) | RETAINER | A45001-- | |
| 3 | (NSS) | END CAP | A45001-- | |
| 4 | (NSS) | GEROTOR | A45001-- | |
| 5 | (NSS) | SPACER | A45001-- | |
| 6 | (NSS) | SPACER | A45001-- | |
| 7 | (NSS) | DRIVE | A45001-- | |
| (NSS) | CONTROL PARTS ASSEMBLY | A45001-- | ||
| 8 | (NSS) | HOUSING | A45001-- | |
| 9 | (NSS) | SLEEVE | A45001-- | |
| 10 | (NSS) | SPOOL | A45001-- | |
| 11 | (NSS) | PIN | A45001-- | |
| 12 | (NSS) | SPRING | A45001-- | |
| 13 | (NSS) | SPRING | A45001-- | |
| 14 | (NSS) | BEARING | A45001-- | |
| 15 | (NSS) | NEEDLE | A45001-- | |
| 16 | (NSS) | O-RING | A45001-- | |
| 17 | (NSS) | SEAL | A45001-- | |
| 18 | (NSS) | SEAL | A45001-- | |
| 19 | (NSS) | RING | A45001-- | |
| 20 | (NSS) | SEAL | A45001-- | |
| 21 | (NSS) | O-RING | A45001-- | |
| 22 | (NSS) | O-RING | A45001-- | |
| 23 | (NSS) | SCREW | A45001-- | |
| 24 | (NSS) | BALL | A45001-- | |
| 25 | (NSS) | PLATE | A45001-- | |
| 26 | (NSS) | RIVET | A45001-- | |
| 416-64-15480 | SERVICE KIT, BEARING ASSEMBLY | A45001-- | ||
| 423-64-45610 | SERVICE KIT, SEAL KIT | A45001-- | ||
| F2 - PART INCLUDED IN: | ||||
| F2 - PART INCLUDED IN: |
