| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-53-12611 | FLOOR MAT | ||
| 2 | 20Y-54-51952 | COVER | ||
| 3 | 01245-00616 | SCREW | ||
| 4 | 01643-70623 | WASHER |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc350ll 7e0 s/n a50001 up
- Operator compartment and control system
- K0310 01h0 floor mat standard
Поиск по каталогу

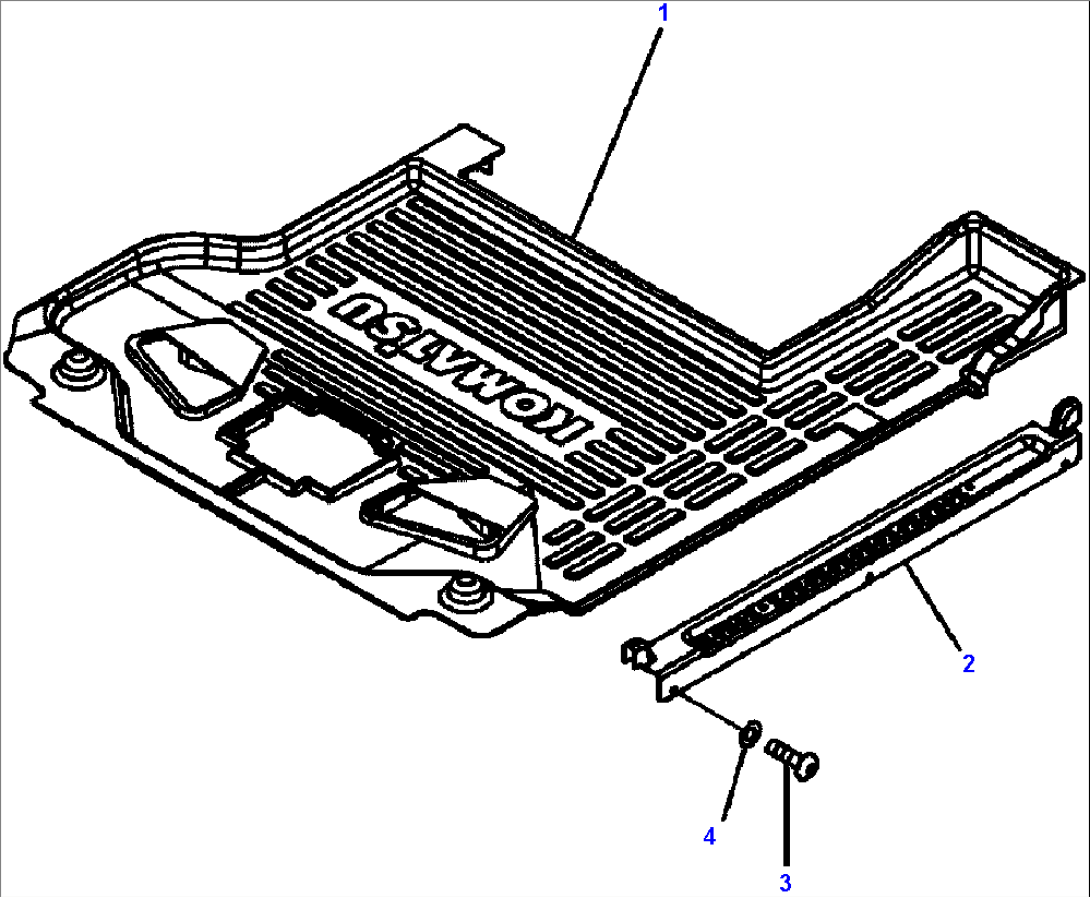

K0310-01H0 FLOOR MAT STANDARD
