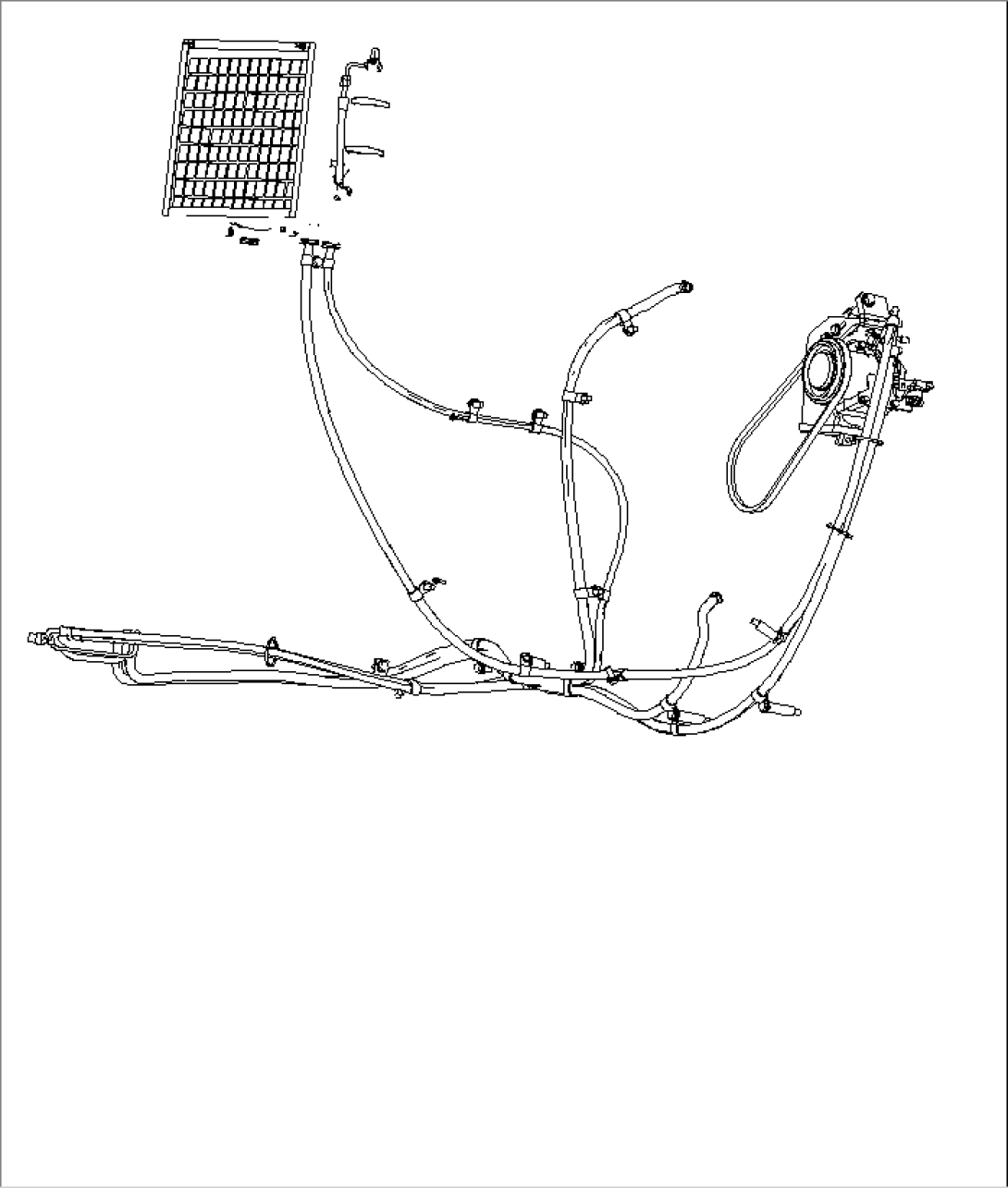

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-54-A3510 | BRACKET, AIR CONDITIONING CONDENSER MOUNTING (WASTE HANDLER) | ||
| N/I | 203-54-83820 | BOSS | ||
| N/I | 01572-21219 | SEAT | ||
| N/I | 01580-00605 | NUT | ||
| N/I | 08193-21012 | CLIP | ||
| N/I | 01010-81235 | BOLT | ||
| N/I | 01643-31232 | WASHER | ||
| 2 | 418-S62-3150 | CONDENSER ASSEMBLY, AIR CONDITIONING | ||
| N/I | 01010-80816 | BOLT | ||
| N/I | 01643-30823 | WASHER | ||
| 3 | 20Y-979-3120 | TANK, RECEIVER DRYER | ||
| 4 | 20Y-979-6650 | TUBE | ||
| N/I | 20Y-979-3150 | O-RING | ||
| N/I | 01435-00625 | BOLT | ||
| 5 | 20Y-979-6542 | TUBE | ||
| N/I | 20Y-979-3150 | O-RING | ||
| N/I | 01435-00625 | BOLT | ||
| 6 | 07283-36155 | U-BOLT | ||
| 7 | 01643-31032 | WASHER | ||
| 8 | 01597-01009 | NUT | ||
| 9 | 20Y-979-7120 | NET | ||
| N/I | 01434-10616 | BOLT, WING | ||
| N/I | 01643-30623 | WASHER | ||
| 10 | 04434-51612 | CLIP | ||
| 11 | 01010-81225 | BOLT | ||
| N/I | 01643-31232 | WASHER | ||
| 12 | 20Y-979-A760 | HOSE, FROM RECEIVER DRYER TO CONDENSER | ||
| 13 | 205-978-7140 | GROMMET | ||
| 14 | 04434-51512 | CLIP | ||
| 15 | 04434-51912 | CLIP | ||
| N/I | 01010-81225 | BOLT | ||
| N/I | 01643-31232 | WASHER | ||
| 16 | 20Y-979-A750 | HOSE, TRIPLE PRESSURE SWITCH HOSE | ||
| 17 | 20Y-979-A740 | HOSE, FROM CONDENSER TO COMPRESSOR | ||
| 18 | 01010-81240 | BOLT | ||
| N/I | 01643-31232 | WASHER | ||
| 19 | HOSE (SEE FIG. K1110-001050 ) | |||
| 20 | HOSE (SEE FIG. K1110-001050 ) | |||
| 21 | COMPRESSOR, AIR CONDITIONING (SEE FIG. K0700-001001 ) | |||
| 22 | V-BELT, AIR CONDITIONING (SEE FIG. K0700-001005 ) |
