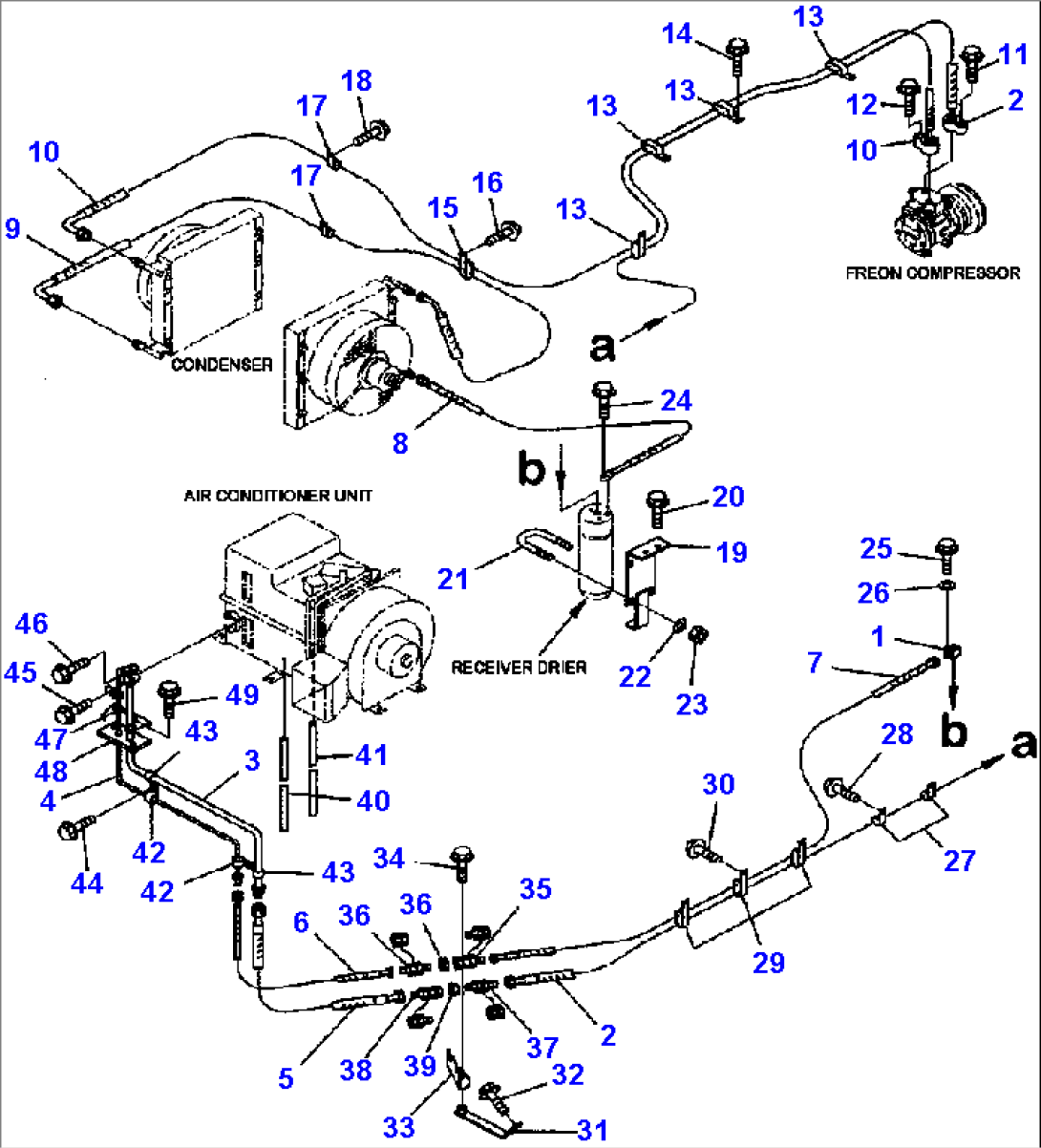

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-S62-2250 | JOINT | A50001-- | |
| 20Y-979-3150 | O-RING | A50001-- | ||
| 2 | 427-S62-2320 | HOSE | A50001-- | |
| 20Y-979-3130 | O-RING | A50001-- | ||
| 3 | 427-S62-2160 | TUBE | A50001-- | |
| 20Y-979-3130 | O-RING | A50001-- | ||
| 4 | 427-S62-2171 | TUBE | A50001-- | |
| 20Y-979-3150 | O-RING | A50001-- | ||
| 421-07-21810 | SWITCH, PRESSURE | A50001-- | ||
| 421-07-21820 | HARNESS, WIRING | A50001-- | ||
| 5 | 427-S62-2180 | HOSE | A50001-- | |
| 20Y-979-3130 | O-RING | A50001-- | ||
| 6 | 427-S62-2210 | HOSE | A50001-- | |
| 20Y-979-3150 | O-RING | A50001-- | ||
| 7 | 427-S62-2220 | HOSE | A50001-- | |
| 20Y-979-3150 | O-RING | A50001-- | ||
| 8 | 427-S62-2230 | HOSE | A50001-- | |
| 20Y-979-3150 | O-RING | A50001-- | ||
| 9 | 427-S62-2240 | HOSE | A50001-- | |
| 20Y-979-3140 | O-RING | A50001-- | ||
| 20Y-979-3150 | O-RING | A50001-- | ||
| 10 | 427-S62-2250 | HOSE | A50001-- | |
| 20Y-979-3140 | O-RING | A50001-- | ||
| 11 | 01435-00625 | BOLT | A50001-- | |
| 12 | 01435-00625 | BOLT | A50001-- | |
| 13 | 421-07-11550 | CLIP | A50001-- | |
| 14 | 01435-01016 | BOLT | A50001-- | |
| 15 | 04435-52110 | CLIP | A50001-- | |
| 16 | 01435-01020 | BOLT | A50001-- | |
| 17 | 04434-52110 | CLIP | A50001-- | |
| 18 | 01435-01020 | BOLT | A50001-- | |
| 19 | 427-S62-1110 | BRACKET | A50001-- | |
| 20 | 01435-01020 | BOLT | A50001-- | |
| 21 | 07283-26155 | CLIP | A50001-- | |
| 22 | 01643-31032 | WASHER | A50001-- | |
| 23 | 01597-01009 | NUT | A50001-- | |
| 24 | 01435-00625 | BOLT | A50001-- | |
| 25 | 01435-00625 | BOLT | A50001-- | |
| 26 | 01643-30623 | WASHER | A50001-- | |
| 27 | 04434-51512 | CLIP | A50001-- | |
| 28 | 01435-01016 | BOLT | A50001-- | |
| 29 | 421-07-11550 | CLIP | A50001-- | |
| 30 | 01435-01016 | BOLT | A50001-- | |
| 31 | 427-S62-2260 | PLATE | A50001-- | |
| 32 | 01435-01016 | BOLT | A50001-- | |
| 33 | 427-S62-1330 | BRACKET | A50001-- | |
| 34 | 01435-01016 | BOLT | A50001-- | |
| 35 | 17A-911-1551 | CONNECTOR ASSEMBLY | A50001-- | |
| 36 | 17A-911-1561 | CONNECTOR ASSEMBLY | A50001-- | |
| 37 | 17A-911-1541 | CONNECTOR ASSEMBLY | A50001-- | |
| 38 | 17A-911-1531 | CONNECTOR ASSEMBLY | A50001-- | |
| 39 | 427-S62-1340 | NUT | A50001-- | |
| 40 | 07287-01031 | HOSE | A50001-- | |
| 41 | 07287-01032 | HOSE | A50001-- | |
| 42 | 04434-50810 | CLIP | A50001-- | |
| 43 | 04434-51610 | CLIP | A50001-- | |
| 44 | 01435-01016 | BOLT | A50001-- | |
| 45 | 01435-00630 | BOLT | A50001-- | |
| 46 | 01435-00630 | BOLT | A50001-- | |
| 47 | 421-07-23950 | PLATE | A50001-- | |
| 48 | 421-07-23980 | SHEET | A50001-- | |
| 49 | 01435-00610 | BOLT | A50001-- |
