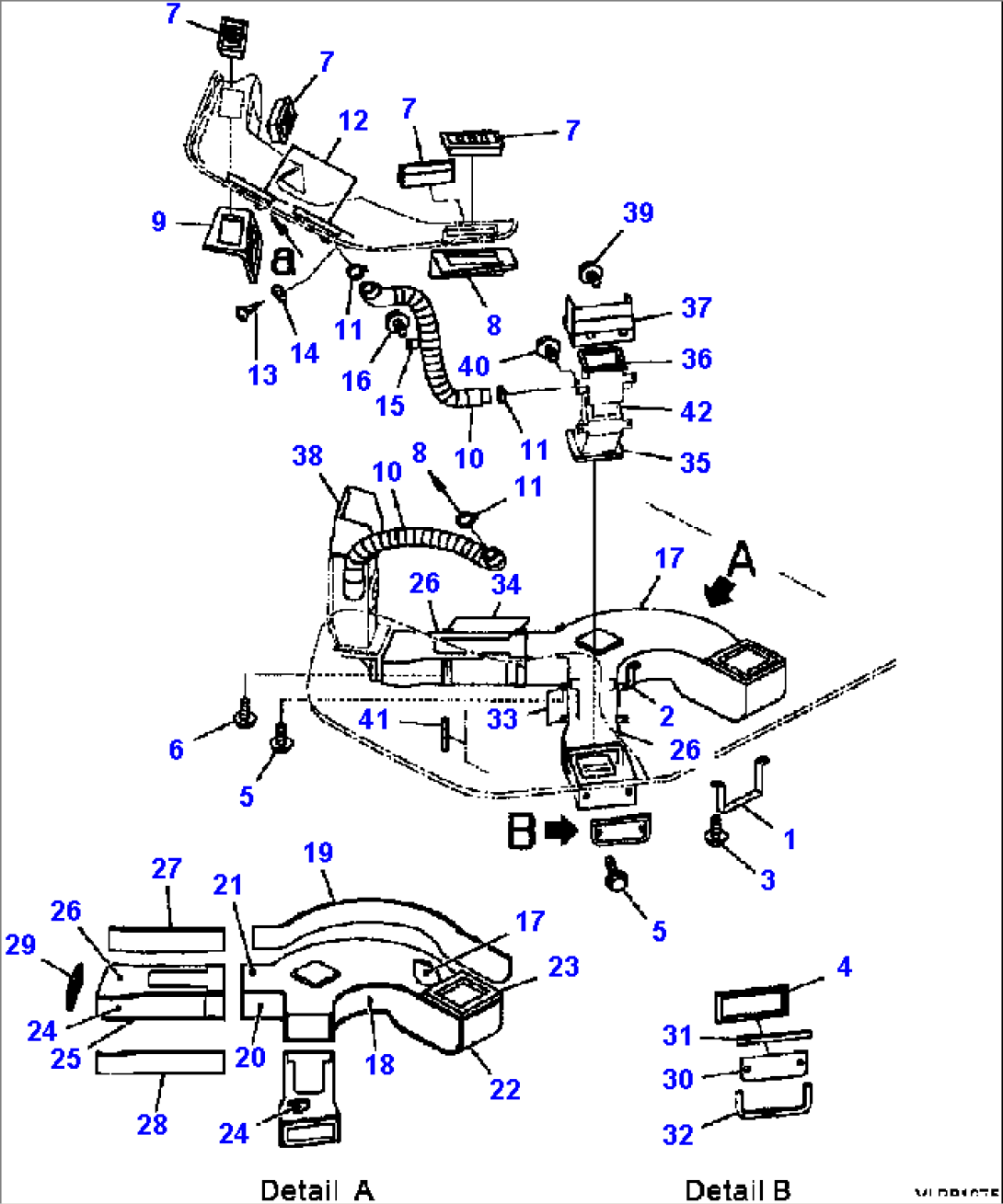

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-07-23650 | CLAMP | A52001-- | |
| 2 | 421-07-23660 | CLAMP | A52001-- | |
| 3 | 01435-01016 | BOLT | A52001-- | |
| 4 | 421-07-23751 | SHEET | A52001-- | |
| 5 | 01435-01016 | BOLT | A52001-- | |
| 6 | 01435-01016 | BOLT | A52001-- | |
| 7 | 421-07-23870 | GRILL | A52001-- | |
| 8 | 421-07-23880 | SHEET, L.H. | A52001-- | |
| 9 | 421-07-23890 | SHEET, R.H. | A52001-- | |
| 10 | 421-07-23910 | HOSE, DEFROSTER | A52001-- | |
| 11 | 07281-00489 | CLAMP | A52001-- | |
| 12 | 421-07-23990 | NOZZLE | A52001-- | |
| 13 | 01370-00412 | SCREW | A52001-- | |
| 14 | 01611-04045 | WASHER | A52001-- | |
| 15 | 21K-62-21660 | CLIP | A52001-- | |
| 16 | 01435-01025 | BOLT | A52001-- | |
| 421-07-23600 | DUCT ASSEMBLY, AIR | A52001-- | ||
| 17 | 421-07-23610 | DUCT AIR | A52001-- | |
| 18 | 423-07-23110 | SHEET | A52001-- | |
| 19 | 423-07-23120 | SHEET | A52001-- | |
| 20 | 423-07-23130 | SHEET | A52001-- | |
| 21 | 423-07-23140 | SHEET | A52001-- | |
| 22 | 423-07-23150 | SHEET | A52001-- | |
| 23 | 421-07-23771 | SHEET | A52001-- | |
| 421-07-23620 | DUCT ASSEMBLY, AIR | A52001-- | ||
| 24 | 421-07-23640 | DUCT, AIR | A52001-- | |
| 25 | 423-07-23160 | SHEET | A52001-- | |
| 26 | 423-07-23170 | SHEET | A52001-- | |
| 27 | 423-07-23180 | SHEET | A52001-- | |
| 28 | 423-07-23190 | SHEET | A52001-- | |
| 29 | 423-07-23211 | SHEET | A52001-- | |
| 421-07-23710 | COVER ASSEMBLY | A52001-- | ||
| 30 | 421-07-23740 | COVER | A52001-- | |
| 31 | 421-07-23720 | FINISHER | A52001-- | |
| 32 | 421-07-23730 | FINISHER | A52001-- | |
| 33 | 421-07-23670 | CLAMP | A52001-- | |
| 34 | 421-07-23680 | CLAMP | A52001-- | |
| 35 | 421-07-23810 | SHEET | A52001-- | |
| 36 | 421-07-23820 | SHEET | A52001-- | |
| 37 | 421-07-23830 | DUCT, L.H. | A52001-- | |
| 38 | 421-07-23840 | DUCT, R.H. | A52001-- | |
| 39 | 01435-00612 | BOLT | A52001-- | |
| 40 | 01435-00616 | BOLT | A52001-- | |
| 41 | 421-54-22960 | PROTECTOR | A52001-- | |
| 42 | DUCT ASSEMBLY (SEE FIG. K0710-04A0 ) | A52001-- |
