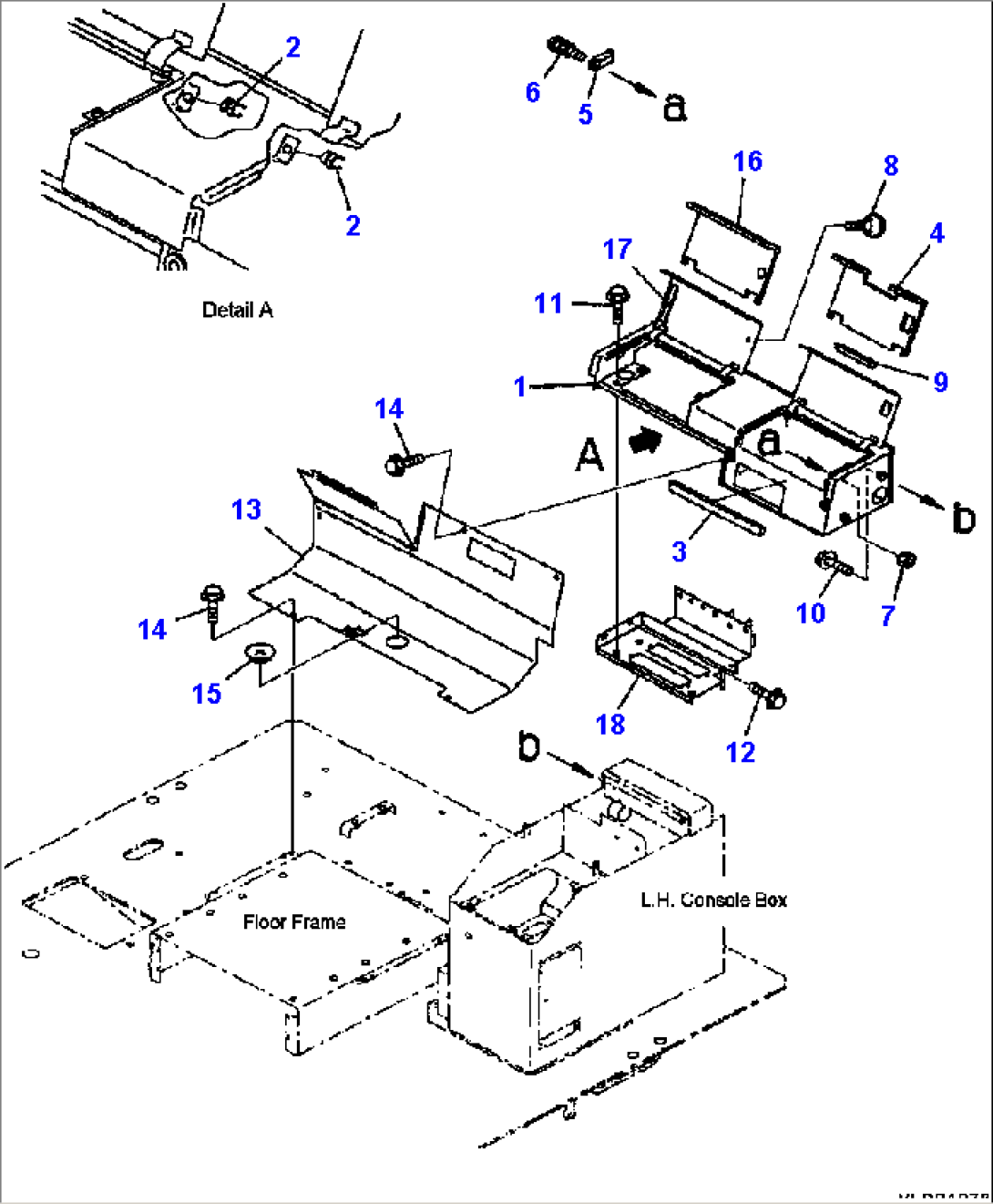

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-54-22732 | BOX, CONSOLE | A52001-- | |
| 2 | 23S-55-51530 | CLIP | A52001-- | |
| 3 | 421-54-22480 | SEAL | A52001-- | |
| 4 | 421-07-28261 | INSULATOR | A52001-- | |
| 5 | 421-09-21370 | CATCH | A52001-- | |
| 6 | 01023-70316 | SCREW | A52001-- | |
| 7 | 01580-10302 | NUT | A52001-- | |
| 8 | 421-09-21260 | SCREW | A52001-- | |
| 9 | 421-54-22750 | HANDLE | A52001-- | |
| 10 | 01435-00825 | BOLT | A52001-- | |
| 11 | 01435-00812 | BOLT | A52001-- | |
| 12 | 01435-00812 | BOLT | A52001-- | |
| 13 | 426-54-22742 | COVER | A52001-- | |
| 421-09-21360 | HINGE (WELDED) | A52001-- | ||
| 14 | 01435-00616 | BOLT | A52001-- | |
| 15 | 417-54-13510 | CAP | A52001-- | |
| 16 | 418-54-22180 | INSULATOR | A52001-- | |
| 17 | 418-54-22190 | CUSHION | A52001-- | |
| 18 | 421-54-22650 | BRACKET | A52001-- |
