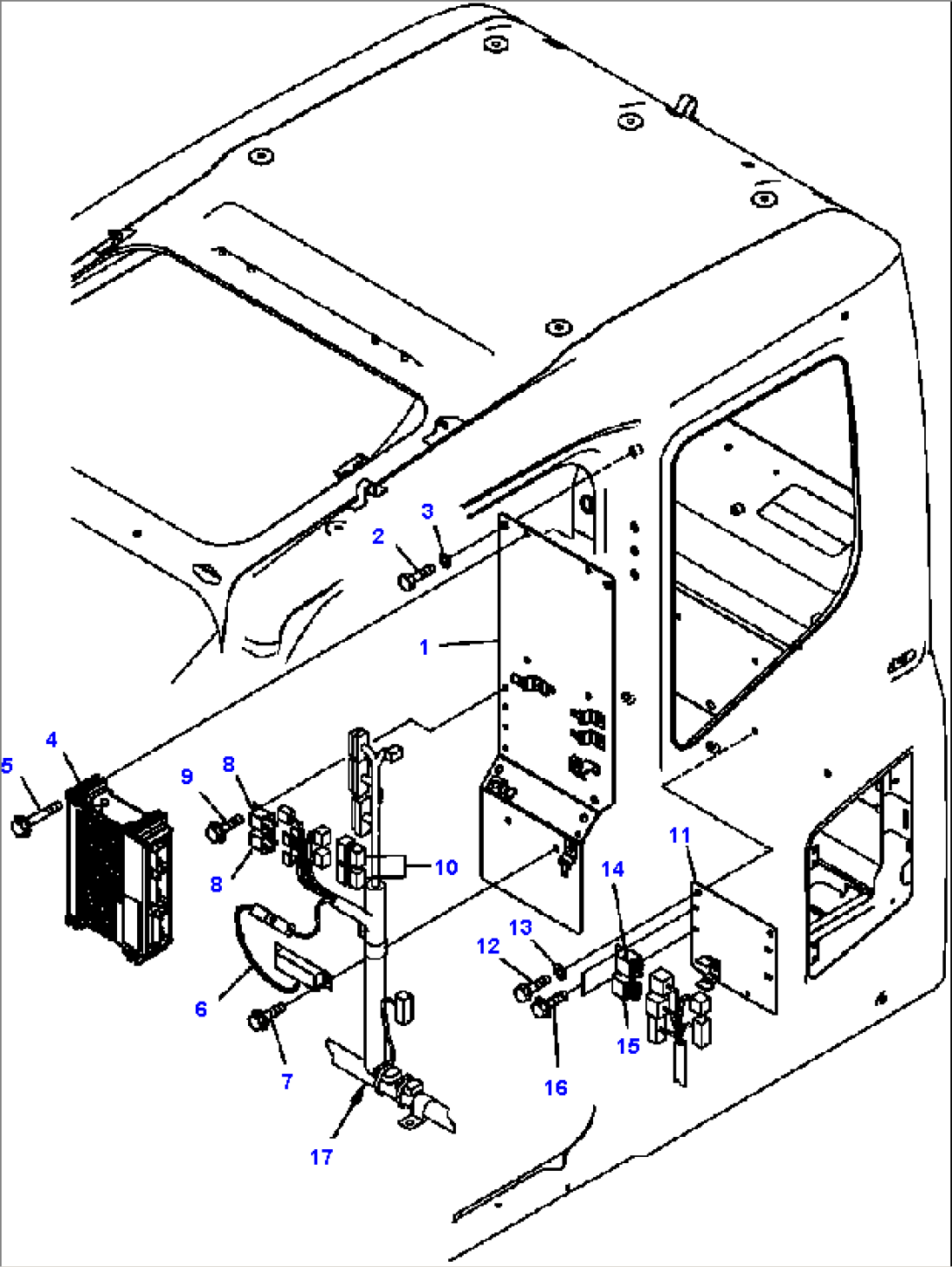

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-53-12860 | PLATE | ||
| 2 | 01010-80816 | BOLT | ||
| 3 | 01643-30823 | WASHER | ||
| 4 | 7835-27-1000 | CONTROLLER | ||
| 5 | 01435-00885 | BOLT | ||
| 6 | 7861-94-3000 | RESISTOR | ||
| 7 | 01435-00816 | BOLT | ||
| 8 | 569-06-61960 | RELAY | ||
| 9 | 01435-00610 | BOLT | ||
| 10 | 8233-06-3350 | DIODE | ||
| 11 | 208-53-12880 | BRACKET | ||
| 12 | 01010-80816 | BOLT | ||
| 13 | 01643-30823 | WASHER | ||
| 14 | 198-911-9240 | RELAY, 4-TERMINAL | ||
| 15 | 20Y-979-6771 | RELAY | ||
| 16 | 01435-00610 | BOLT | ||
| 17 | HARNESS (SEE FIG. K1110-24H1 ) |
