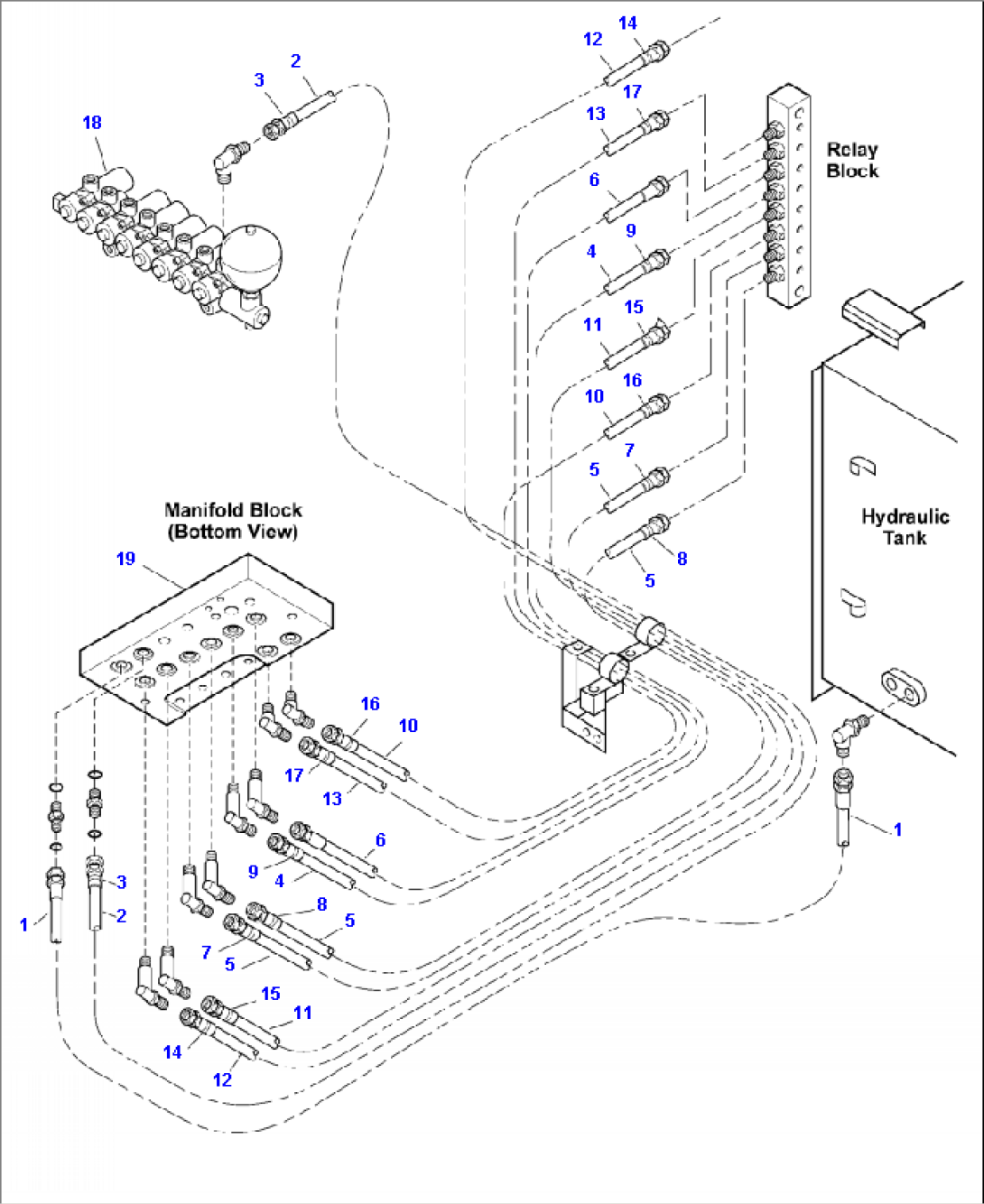

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-62-A1760 | HOSE, 2400 MM | A86001-- | |
| 2 | 207-62-A1770 | HOSE, 4650 MM | A86001-- | |
| 3 | 20Y-62-22790 | BAND, RED | A86001-- | |
| 4 | 20Y-62-42560 | HOSE, 3300 MM | A86001-- | |
| 5 | 207-62-72670 | HOSE, 3300 MM | A86001-- | |
| 6 | 207-62-72740 | HOSE, 3450 MM | A86001-- | |
| 7 | 20Y-62-22790 | BAND, RED | A86001-- | |
| 8 | 20Y-62-22810 | BAND, YELLOW | A86001-- | |
| 9 | 20Y-62-22820 | BAND, BLUE | A86001-- | |
| 10 | 207-62-72590 | HOSE, 3700 MM | A86001-- | |
| 11 | 207-62-72680 | HOSE, 3600 MM | A86001-- | |
| 12 | 207-62-72690 | HOSE, 3700 MM | A86001-- | |
| 13 | 20Y-62-42311 | HOSE, 3500 MM | A86001-- | |
| 14 | 20Y-62-22830 | BAND, WHITE | A86001-- | |
| 15 | 20Y-62-22840 | BAND, BLACK | A86001-- | |
| 16 | 20Y-62-22850 | BAND, GREEN | A86001-- | |
| 17 | 20Y-62-22860 | BAND, BROWN | A86001-- | |
| 18 | VALVE, SOLENOID (SEE FIG. H1831-03A0) | A86001-- | ||
| 19 | MANIFOLD (SEE FIG. H1831-03A0) | A86001-- |
