| Item | Part No. | Part Name | Qty | Serial No. |

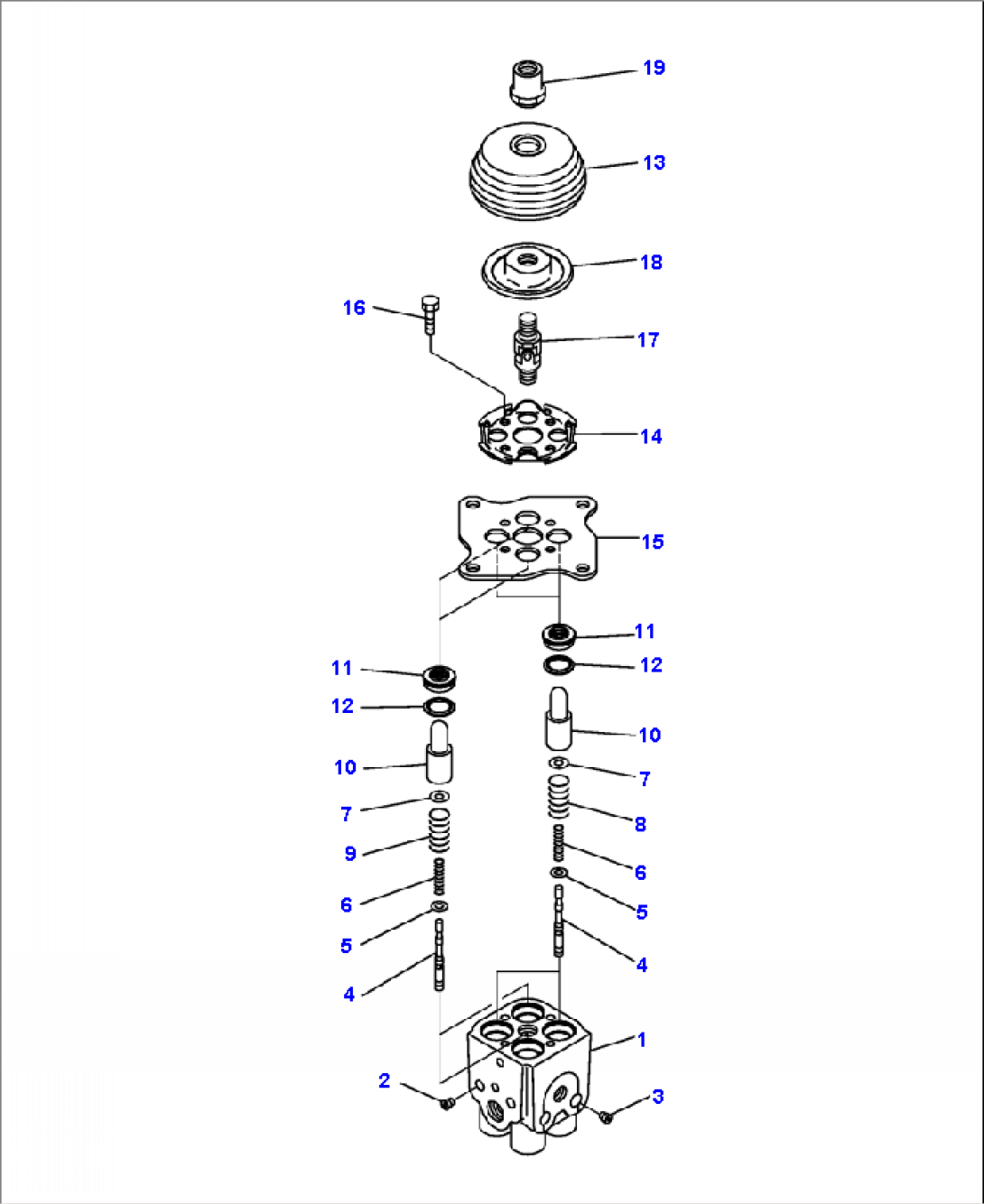

| 702-16-03530 | PILOT VALVE | A87001-- | ||
| 1 | (NSS) | BODY, VALVE | A87001-- | |
| 2 | (NSS) | PLUG | A87001-- | |
| 3 | (NSS) | PLUG | A87001-- | |
| 4 | (NSS) | VALVE | A87001-- | |
| 5 | 702-16-51140 | SHIM, 0.30 MM | A87001-- | |
| 6 | 702-16-53420 | SPRING | A87001-- | |
| 7 | 702-16-53140 | RETAINER | A87001-- | |
| 8 | 702-16-53470 | SPRING | A87001-- | |
| 9 | 702-16-53590 | SPRING | A87001-- | |
| 10 | 702-16-53170 | PISTON | A87001-- | |
| 11 | 702-16-71150 | SEAL | A87001-- | |
| 12 | 702-16-71160 | SEAT | A87001-- | |
| 13 | 702-16-71280 | BOOT | A87001-- | |
| 14 | 702-16-71131 | PLATE | A87001-- | |
| 15 | 702-16-71141 | PLATE | A87001-- | |
| 16 | 01010-80620 | BOLT | A87001-- | |
| 17 | 702-16-51240 | JOINT, UNIVERSAL | A87001-- | |
| 18 | 702-16-71361 | DISC | A87001-- | |
| 19 | 702-16-71441 | NUT | A87001-- |
