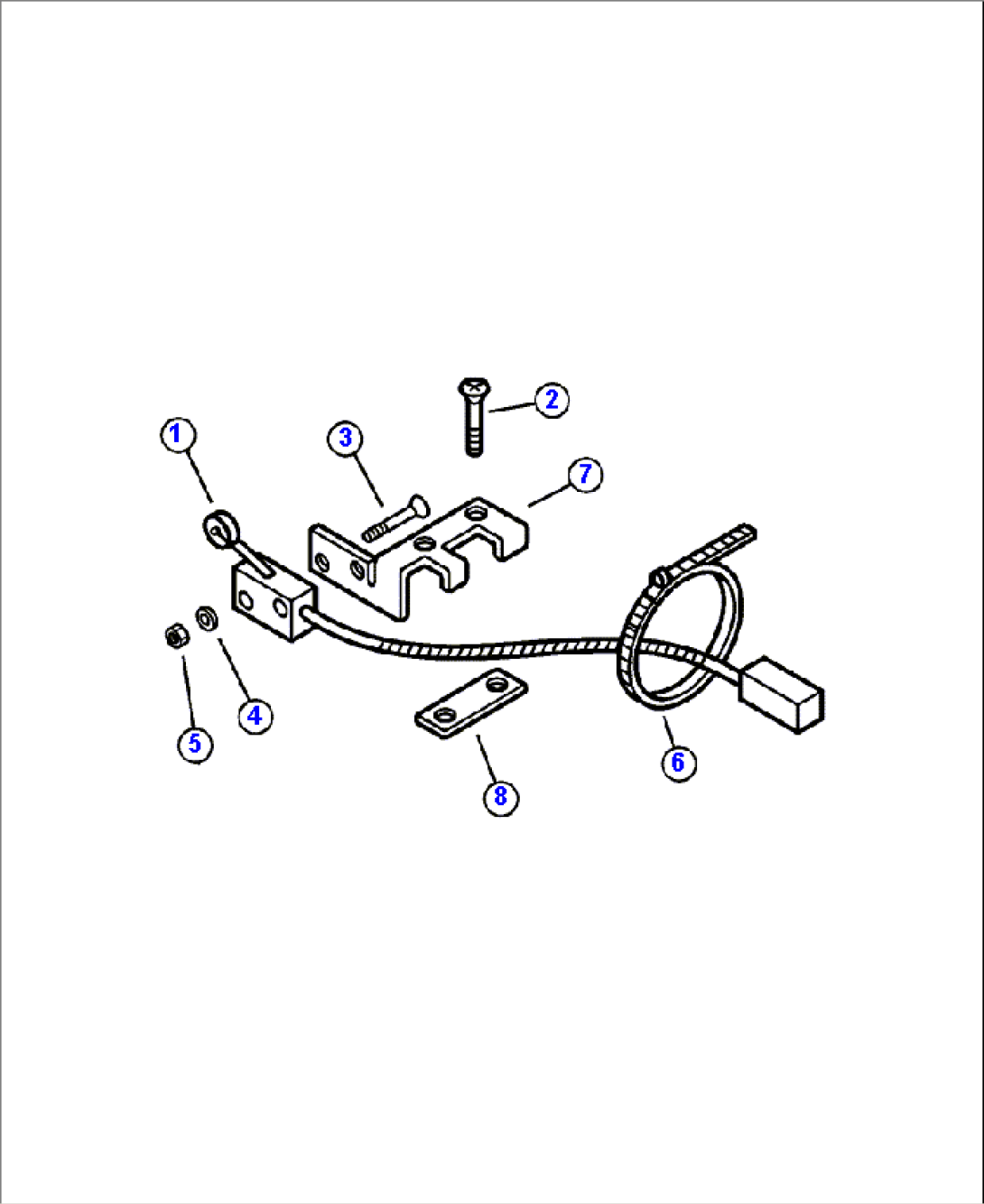

| Item | Part No. | Part Name | Qty | Serial No. |
| SEAT, OPERATORS (SEE FIG. K4013-01A0 ) | A10001 and UP- | |||
| SEAT, OPERATORS (SEE FIG. K4013-01A0 ) | A10001 and UP- | |||
| 1 | 37A-06-11500 | SWITCH, SEAT | A10001 and UP- | |
| 2 | 01240-00616 | SCREW | A10001 and UP- | |
| 3 | 37C-09-11120 | SCREW | A10001 and UP- | |
| 4 | 01640-20305 | WASHER | A10001 and UP- | |
| 5 | 21D-09-23120 | NUT | A10001 and UP- | |
| 6 | 08034-20519 | TIE STRAP | A10001 and UP- | |
| 7 | 2939-57-1113 | BRACKET, SWITCH | A10001 and UP- | |
| 8 | 2939-57-1122 | PLATE, CLAMP | A10001 and UP- |
