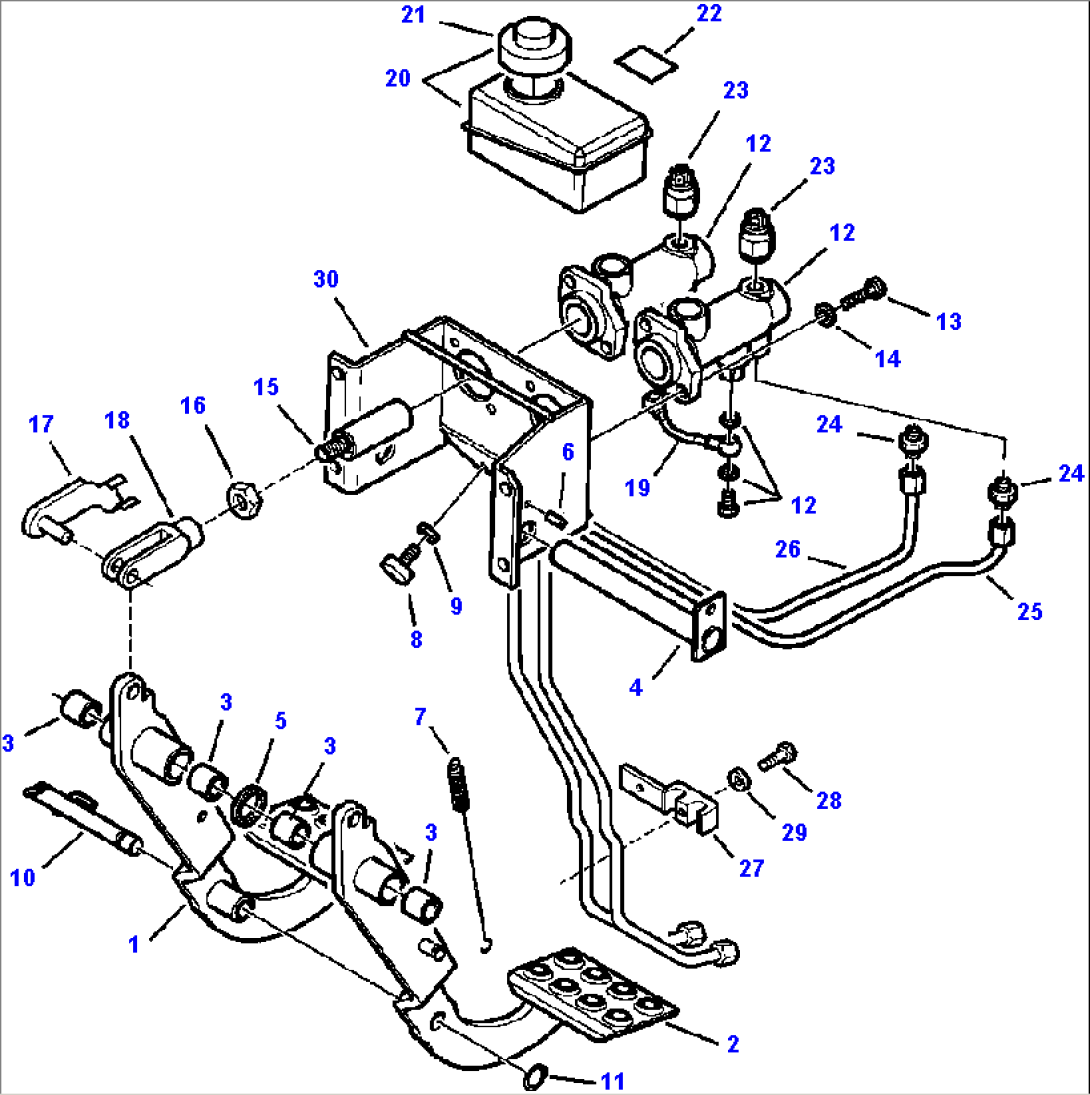

| Item | Part No. | Part Name | Qty | Serial No. |
| 42N-54-10170 | KIT, BRAKE PEDAL | A13001-- | ||
| 1 | 42N-54-15550 | PEDAL, RIGHT | A13001-- | |
| 2 | 42N-54-15560 | PEDAL, LEFT | A13001-- | |
| 3 | 09350-02020 | BUSHING | A13001-- | |
| 4 | 42N-54-15590 | SHAFT, PEDAL | A13001-- | |
| 5 | 42N-54-15570 | WASHER, NYLON | A13001-- | |
| 6 | 04025-00532 | PIN | A13001-- | |
| 7 | 37B-09-2C016 | SPRING, RETURN | A13001-- | |
| 8 | 395-56-11080 | STOP, PEDAL | A13001-- | |
| 9 | 21D-09-21720 | NUT | A13001-- | |
| 10 | 42N-54-15610 | PIN, LOCK | A13001-- | |
| 11 | 04064-01410 | SNAP RING | A13001-- | |
| 12 | PUMP, BRAKE ( SEE FIG. K4201-01A0 ) | A13001-- | ||
| 13 | 42N-54-15870 | BOLT | A13001-- | |
| 14 | 01643-30823 | WASHER | A13001-- | |
| 15 | 42N-33-11210 | ROD, PUMP | A13001-- | |
| 16 | 21D-09-21750 | NUT | A13001-- | |
| 17 | 22E-09-13210 | CLEVIS | A13001-- | |
| 18 | 37A-09-61024 | PIN, CLIP | A13001-- | |
| 19 | 42N-33-11220 | TUBE, CROSSOVER | A13001-- | |
| 20 | 42N-33-11230 | TANK, BRAKE | A13001-- | |
| 21 | 42N-33-11240 | CAP, FILLER | A13001-- | |
| N/I | 42N-54-18370 | GEL, SILICA | A13001-- | |
| 22 | 42N-93-11650 | DECAL | A13001-- | |
| 23 | 22E-62-11141 | SWITCH | A13001-- | |
| 24 | 37D-09-4C754 | CONNECTOR | A13001-- | |
| 25 | 42N-62-16550 | TUBE, LEFT | A13001-- | |
| 26 | 42N-63-16560 | TUBE, RIGHT | A13001-- | |
| 27 | 42N-54-17920 | CLAMP | A13001-- | |
| 28 | 395-56-13500 | BOLT | A13001-- | |
| 29 | 01643-30623 | WASHER | A13001-- | |
| 30 | (NSS) | BRACKET | A13001-- |
