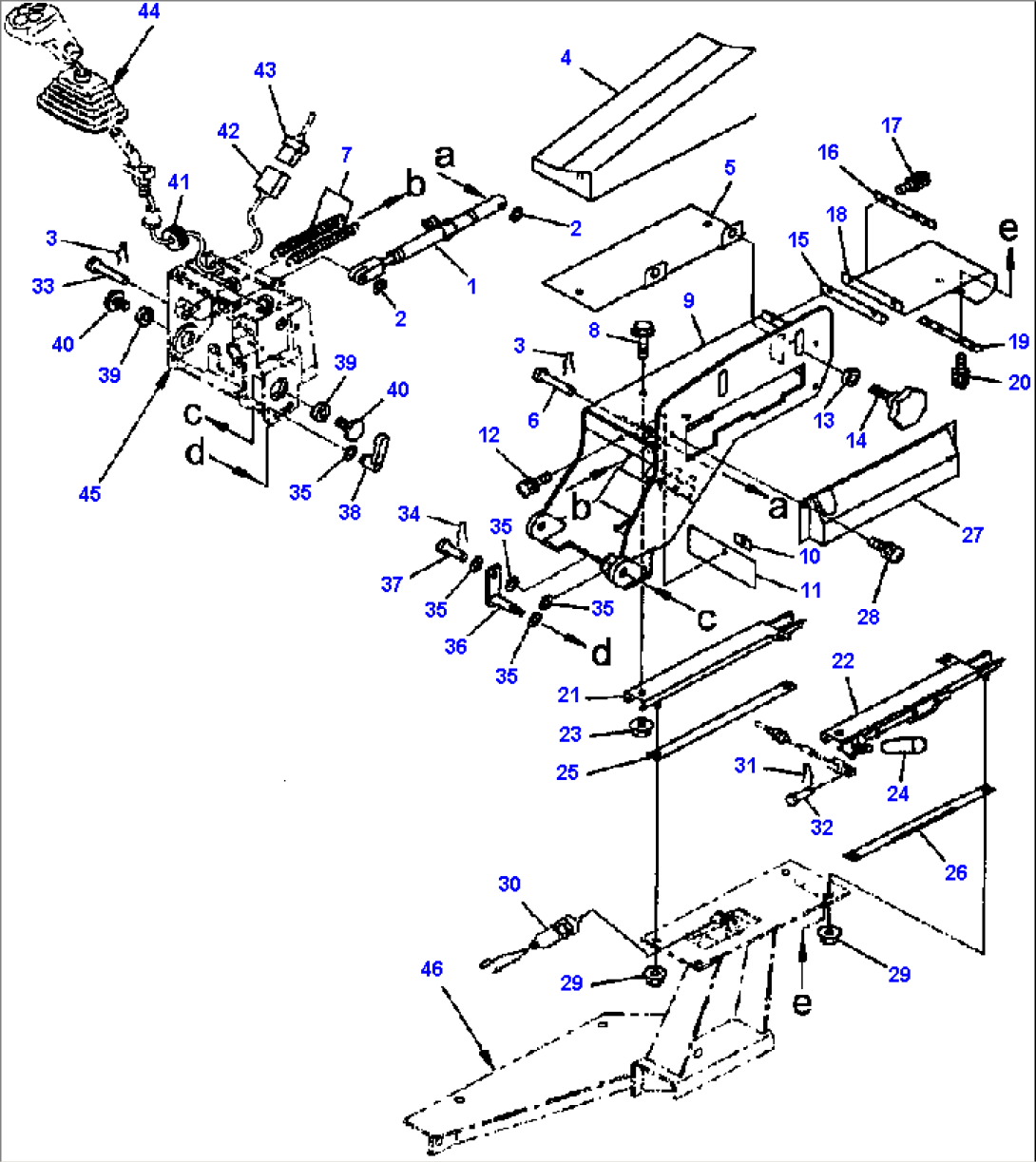

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-S33-1380 | LOCK | A52001-- | |
| 2 | 01641-21016 | WASHER | A52001-- | |
| 3 | 04052-11038 | PIN, COTTER | A52001-- | |
| 4 | 428-S33-2310 | ARMREST - L.H. | A52001-- | |
| 5 | 428-S33-2180 | BRACKET | A52001-- | |
| 6 | 428-S33-2420 | PIN | A52001-- | |
| 7 | 418-43-18240 | SPRING | A52001-- | |
| 8 | 01435-00816 | BOLT | A52001-- | |
| 9 | 425-S33-A120 | BRACKET | A52001-- | |
| 10 | 426-S33-2280 | PLATE | A52001-- | |
| 11 | 426-S33-2290 | RUBBER | A52001-- | |
| 12 | 01023-70616 | SCREW | A52001-- | |
| 13 | 428-S33-2150 | SPACER | A52001-- | |
| 14 | 428-S33-2140 | KNOB | A52001-- | |
| 15 | 428-S33-2470 | PLATE | A52001-- | |
| 16 | 428-S33-2230 | PLATE | A52001-- | |
| 17 | 01023-20616 | SCREW | A52001-- | |
| 18 | 428-S33-2240 | RUBBER | A52001-- | |
| 19 | 428-S33-2230 | PLATE | A52001-- | |
| 20 | 01023-20612 | SCREW | A52001-- | |
| 21 | 428-S33-2270 | ADJUSTER | A52001-- | |
| 22 | 428-S33-2260 | ADJUSTER | A52001-- | |
| 23 | 01584-00806 | NUT | A52001-- | |
| 24 | 417-09-12120 | KNOB | A52001-- | |
| 25 | 428-S33-2380 | PLATE | A52001-- | |
| 26 | 425-S33-2141 | PLATE | A52001-- | |
| 27 | 428-S33-2280 | COVER | A52001-- | |
| 28 | 01023-20612 | SCREW | A52001-- | |
| 29 | 01584-10806 | NUT | A52001-- | |
| 30 | SWITCH (SEE FIG. K0110-02A1 ) | A52001-- | ||
| 31 | 04052-10633 | PIN, COTTER | A52001-- | |
| 32 | 04205-10616 | PIN | A52001-- | |
| 33 | 04205-31042 | PIN | A52001-- | |
| 34 | 04050-12015 | PIN, COTTER | A52001-- | |
| 35 | 01643-30823 | WASHER | A52001-- | |
| 36 | 425-S33-2161 | LEVER | A52001-- | |
| 37 | 04205-10822 | PIN | A52001-- | |
| 38 | 425-S33-2181 | LEVER | A52001-- | |
| 39 | 22T-43-12180 | SPACER | A52001-- | |
| 40 | 22T-43-12190 | BOLT | A52001-- | |
| 41 | 135-06-34260 | GROMMET | A52001-- | |
| 42 | 08056-10811 | CONNECTOR | A52001-- | |
| 43 | 08056-10830 | CONNECTOR | A52001-- | |
| 44 | HANDLE ASSEMBLY (SEE FIG. K4200-08A0 ) | A52001-- | ||
| 45 | BRACKET (SEE FIG. K4200-07A5 ) | A52001-- | ||
| 46 | BRACKET (SEE FIG. K0110-01A0 ) | A52001-- |
