| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-43-55172 | BRACKET | ||
| 2 | 01010-81225 | BOLT | ||
| 3 | 01643-31232 | WASHER | ||
| 4 | 419-43-55211 | BRACKET | ||
| 5 | 01010-80816 | BOLT | ||
| 6 | 01643-30823 | WASHER | ||
| 7 | 419-43-55221 | BRACKET | ||
| 8 | 01010-80820 | BOLT | ||
| 9 | 01643-30823 | WASHER |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa270 7 s/n a27001 up
- Operator\xd5 s compartment and control system
- K4202 001004 loader control unit console box, r.h.
Поиск по каталогу

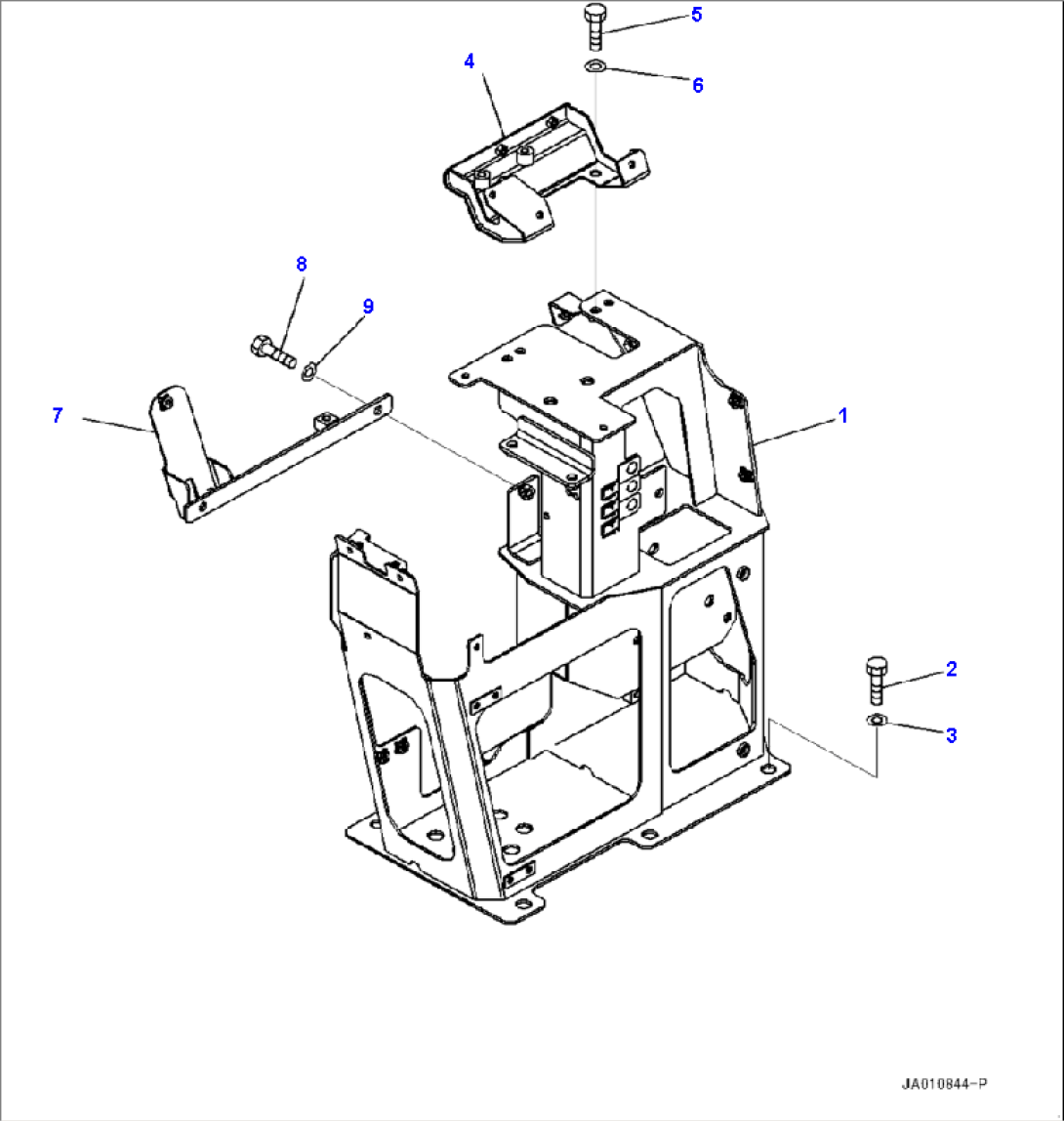

K4202-001004 LOADER CONTROL UNIT CONSOLE BOX, R.H.
