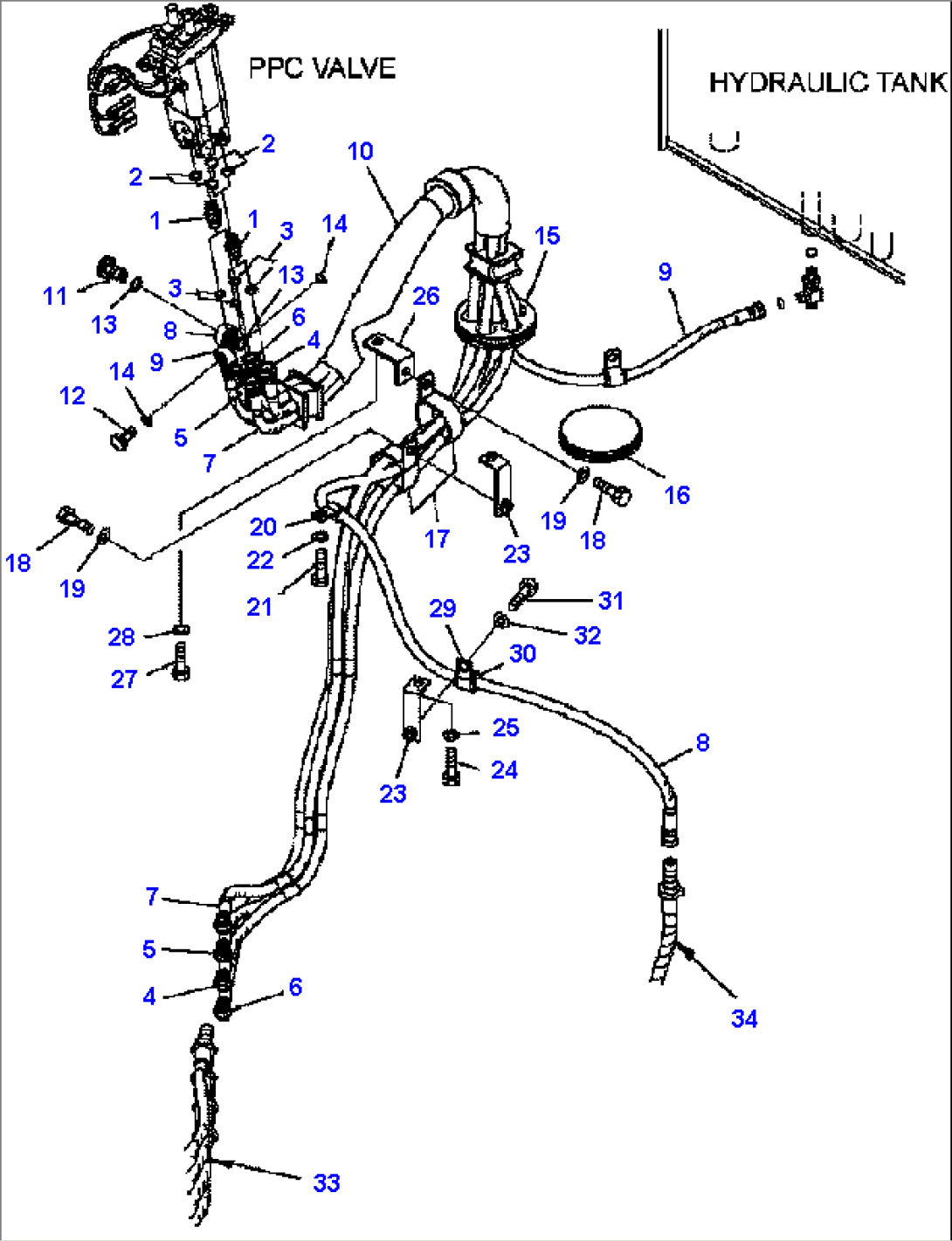

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02781-0031D | NIPPLE | ||
| 2 | 07002-11423 | O-RING | ||
| 3 | 02896-11009 | O-RING | ||
| 423-43-48501 | HOSE ASSEMBLY | |||
| 4 | 423-43-48511 | HOSE, GREEN, 2150 MM | ||
| 5 | 423-43-48521 | HOSE, YELLOW, 2270 MM | ||
| 6 | 423-43-48531 | HOSE, WHITE, 2170 MM | ||
| 7 | 423-43-48541 | HOSE, BLUE, 2220 MM | ||
| 8 | 423-43-48351 | HOSE, RED-BLACK | ||
| 9 | 423-43-48361 | HOSE, BLACK | ||
| 10 | 08210-02911 | SPIRAL TUBE | ||
| 11 | 20Y-62-18910 | BOLT, EYE | ||
| 12 | 20Y-62-18890 | BOLT, JOINT | ||
| 13 | 07000-12018 | O-RING | ||
| 14 | 07000-12015 | O-RING | ||
| 15 | 423-43-38320 | GROMMET | ||
| 16 | 423-43-38330 | GROMMET | ||
| 17 | 21K-03-11190 | CLIP | ||
| 18 | 01010-81020 | BOLT | ||
| 19 | 01643-31032 | WASHER | ||
| 20 | 04434-51510 | CLIP | ||
| 21 | 01010-81020 | BOLT | ||
| 22 | 01643-31032 | WASHER | ||
| 23 | 361-62-21111 | BRACKET | ||
| 24 | 01010-81020 | BOLT | ||
| 25 | 01643-31032 | WASHER | ||
| 26 | 423-43-48470 | BRACKET | ||
| 27 | 01010-81020 | BOLT | ||
| 28 | 01643-31032 | WASHER | ||
| 29 | 04434-52112 | CLIP | ||
| 30 | 07095-20314 | CUSHION | ||
| 31 | 01010-81020 | BOLT | ||
| 32 | 01643-31032 | WASHER | ||
| 33 | HOSE ( SEE FIG. H4200-04A1 ) | |||
| 34 | HOSE (SEE FIG. K4460-02A1 ) |
