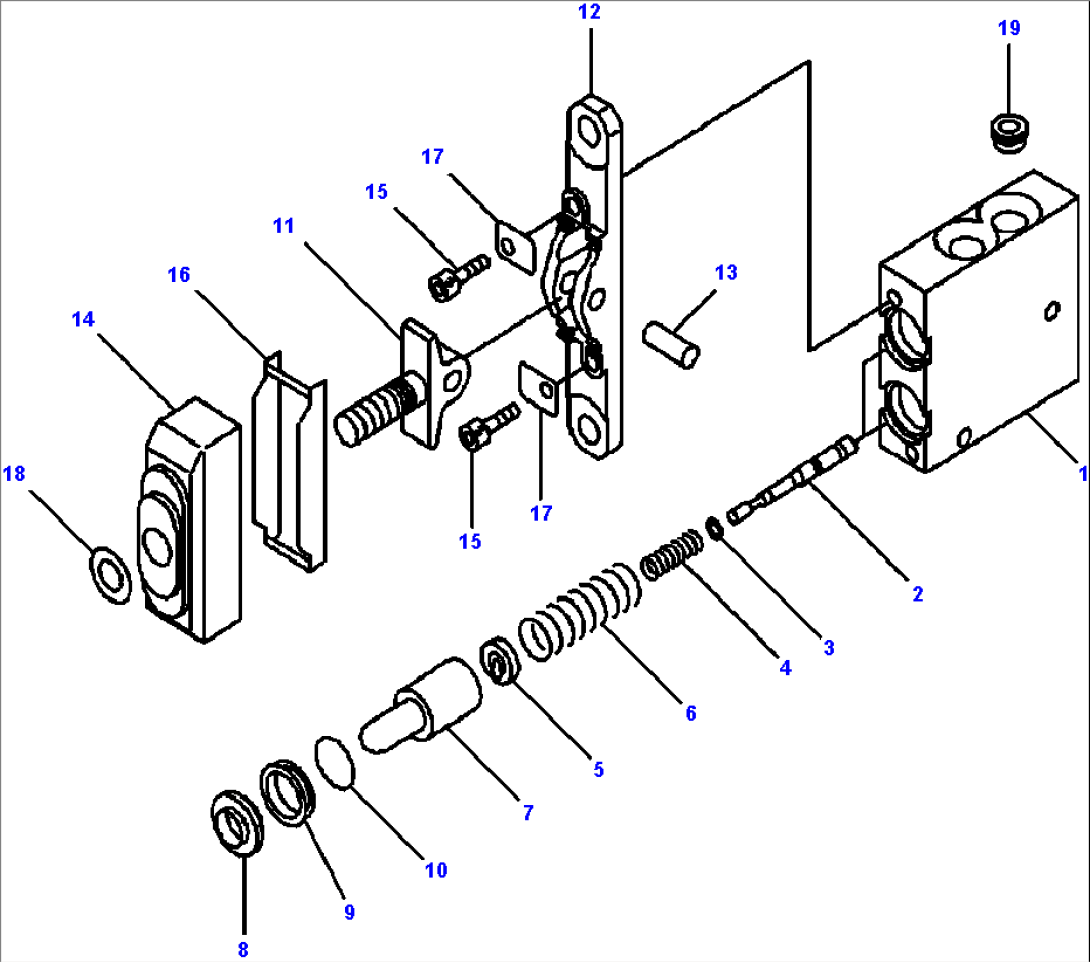

| Item | Part No. | Part Name | Qty | Serial No. |
| 702-16-01460 | PILOT VALVE | A45001-- | ||
| 1 | (NSS) | BODY, VALVE | A45001-- | |
| 2 | (NSS) | VALVE | A45001-- | |
| 3 | 702-16-51140 | SHIM, 0.30 MM | A45001-- | |
| 4 | 702-16-56260 | SPRING | A45001-- | |
| 5 | 702-16-54750 | RETAINER | A45001-- | |
| 6 | 702-16-53470 | SPRING | A45001-- | |
| 7 | 702-16-53170 | PISTON | A45001-- | |
| 8 | 702-16-51270 | SEAL | A45001-- | |
| 9 | 702-16-54580 | COLLAR | A45001-- | |
| 10 | 702-16-54590 | O-RING | A45001-- | |
| 11 | 702-16-54680 | LEVER | A45001-- | |
| 12 | 702-16-54690 | PLATE | A45001-- | |
| 13 | 702-16-54630 | SHAFT | A45001-- | |
| 14 | 702-16-54641 | BOOT | A45001-- | |
| 15 | 01252-30625 | BOLT | A45001-- | |
| 16 | 702-16-54660 | PLATE | A45001-- | |
| 17 | 702-16-54650 | PLATE | A45001-- | |
| 18 | 702-16-54920 | RING | A45001-- | |
| 19 | 702-16-54880 | FILTER | A45001-- |
