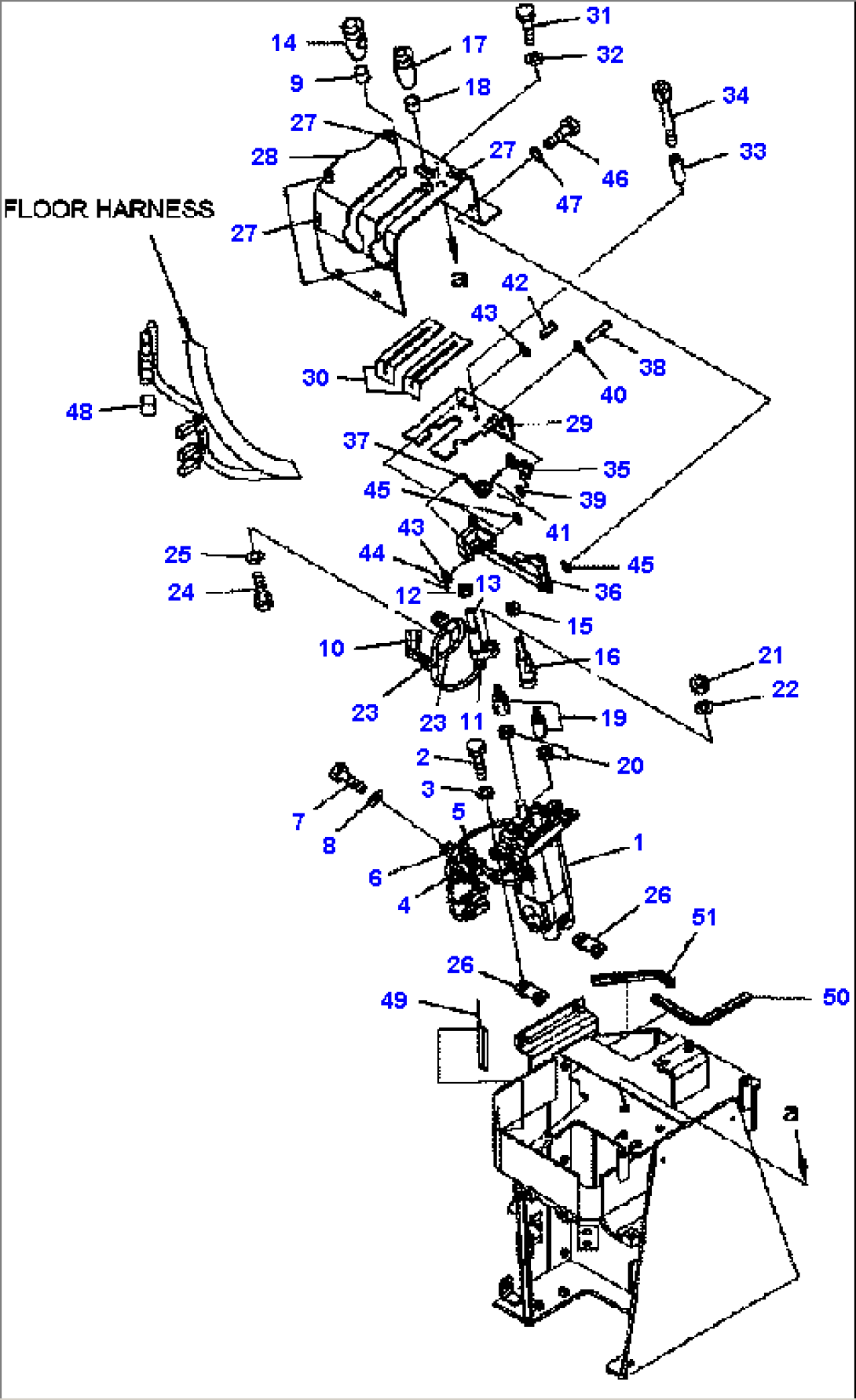

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PILOT VALVE (SEE FIG. K4202-02A0) | A45001-- | ||
| 2 | 01010-81030 | BOLT | A45001-- | |
| 3 | 01643-31032 | WASHER | A45001-- | |
| 4 | 04434-51712 | CLIP | A45001-- | |
| 5 | 07095-20211 | CUSHION | A45001-- | |
| 6 | 04434-50610 | CLIP | A45001-- | |
| 7 | 01010-81016 | BOLT | A45001-- | |
| 8 | 01643-31032 | WASHER | A45001-- | |
| 423-43-48240 | LEVER ASSEMBLY, LIFT ARM | A45001-- | ||
| 9 | 421-43-38430 | COLLAR | A45001-- | |
| 10 | 08192-24810 | CONNECTOR | A45001-- | |
| 11 | 23S-43-51230 | GROMMET | A45001-- | |
| 12 | 23S-43-31550 | NUT | A45001-- | |
| 13 | 421-43-37591 | LEVER | A45001-- | |
| 14 | 423-43-48260 | SWITCH ASSEMBLY | A45001-- | |
| N/I | 421-43-38512 | BODY ASSEMBLY | A45001-- | |
| N/I | 421-43-38590 | SWITCH ASSEMBLY | A45001-- | |
| N/I | 421-43-38522 | CAP | A45001-- | |
| N/I | 421-43-38530 | SPACER | A45001-- | |
| N/I | 421-43-38540 | SPRING | A45001-- | |
| N/I | 421-43-38550 | CAP | A45001-- | |
| N/I | 421-43-38560 | RING | A45001-- | |
| N/I | 421-43-38570 | PLUNGER | A45001-- | |
| N/I | 421-43-38580 | O-RING | A45001-- | |
| N/I | 421-43-38740 | STOPPER | A45001-- | |
| N/I | 421-43-38142 | LEVER ASSEMBLY, BUCKET CONTROL | A45001-- | |
| 15 | 23S-43-31550 | NUT | A45001-- | |
| 16 | 421-43-37591 | LEVER | A45001-- | |
| 17 | 421-43-38332 | KNOB | A45001-- | |
| 18 | 421-43-38430 | COLLAR | A45001-- | |
| 19 | 23S-43-51111 | LEVER | A45001-- | |
| 20 | 23S-43-51240 | NUT | A45001-- | |
| 21 | 01580-10806 | NUT | A45001-- | |
| 22 | 01643-50823 | WASHER | A45001-- | |
| 23 | 04434-50612 | CLIP | A45001-- | |
| 24 | 01010-80816 | BOLT | A45001-- | |
| 25 | 01643-30823 | WASHER | A45001-- | |
| 26 | 423-43-48440 | BRACKET | A45001-- | |
| 27 | 421-09-21420 | SHEET | A45001-- | |
| 28 | 421-43-48190 | COVER | A45001-- | |
| 29 | 423-43-48193 | PLATE | A45001-- | |
| 30 | 423-43-48720 | AWNING | A45001-- | |
| 31 | 01010-81030 | BOLT | A45001-- | |
| 32 | 01643-31032 | WASHER | A45001-- | |
| 33 | 423-43-48130 | PIPE | A45001-- | |
| 34 | 01252-70650 | BOLT | A45001-- | |
| 35 | 423-43-48452 | PLATE | A45001-- | |
| 36 | 423-43-48231 | BRACKET | A45001-- | |
| 37 | 423-43-48430 | SPRING | A45001-- | |
| 38 | 04205-10630 | PIN | A45001-- | |
| 39 | 01643-20623 | WASHER | A45001-- | |
| 40 | 01640-20610 | WASHER | A45001-- | |
| 41 | 04050-11612 | PIN | A45001-- | |
| 42 | 04205-10618 | PIN | A45001-- | |
| 43 | 01640-20610 | WASHER | A45001-- | |
| 44 | 04050-11612 | PIN | A45001-- | |
| 45 | 425-15-14240 | SHIM, 0.5 MM | A45001-- | |
| 46 | 01010-80820 | BOLT | A45001-- | |
| 47 | 01643-30823 | WASHER | A45001-- | |
| 48 | 423-06-45620 | CONNECTOR | A45001-- | |
| 49 | 421-06-42740 | SHEET | A45001-- | |
| 50 | 423-54-42990 | FINISHER | A45001-- | |
| 51 | 423-54-42990 | FINISHER | A45001-- |
