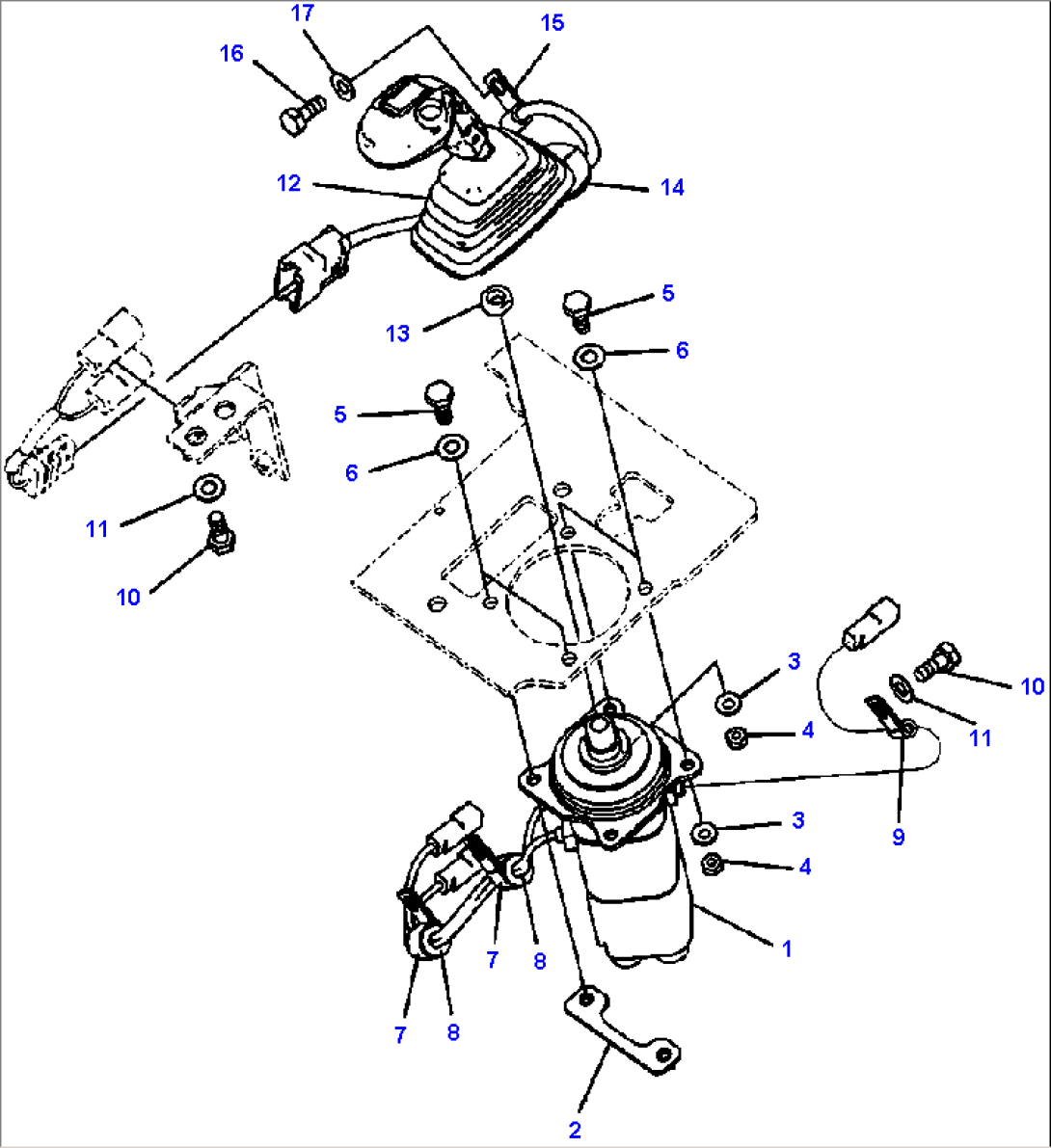

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PILOT VALVE (SEE FIG. K4202-02A4) | A45001-- | ||
| 2 | 423-V91-4130 | PLATE | A45001-- | |
| 3 | 01643-30823 | WASHER | A45001-- | |
| 4 | 01580-10806 | NUT | A45001-- | |
| 5 | 01010-80825 | BOLT | A45001-- | |
| 6 | 01643-30823 | WASHER | A45001-- | |
| 7 | 04434-51712 | CLIP | A45001-- | |
| 8 | 07095-20211 | CUSHION | A45001-- | |
| 9 | 04434-50612 | CLIP | A45001-- | |
| 10 | 01010-81020 | BOLT | A45001-- | |
| 11 | 01643-31032 | WASHER | A45001-- | |
| 12 | 423-V91-4141 | LEVER ASSEMBLY, MULTI-FUNCTION | A45001-- | |
| 13 | 23S-43-51240 | NUT | A45001-- | |
| 14 | 135-06-34250 | GROMMET | A45001-- | |
| 15 | 04434-51012 | CLIP | A45001-- | |
| 16 | 01010-81020 | BOLT | A45001-- | |
| 17 | 01643-31032 | WASHER | A45001-- |
