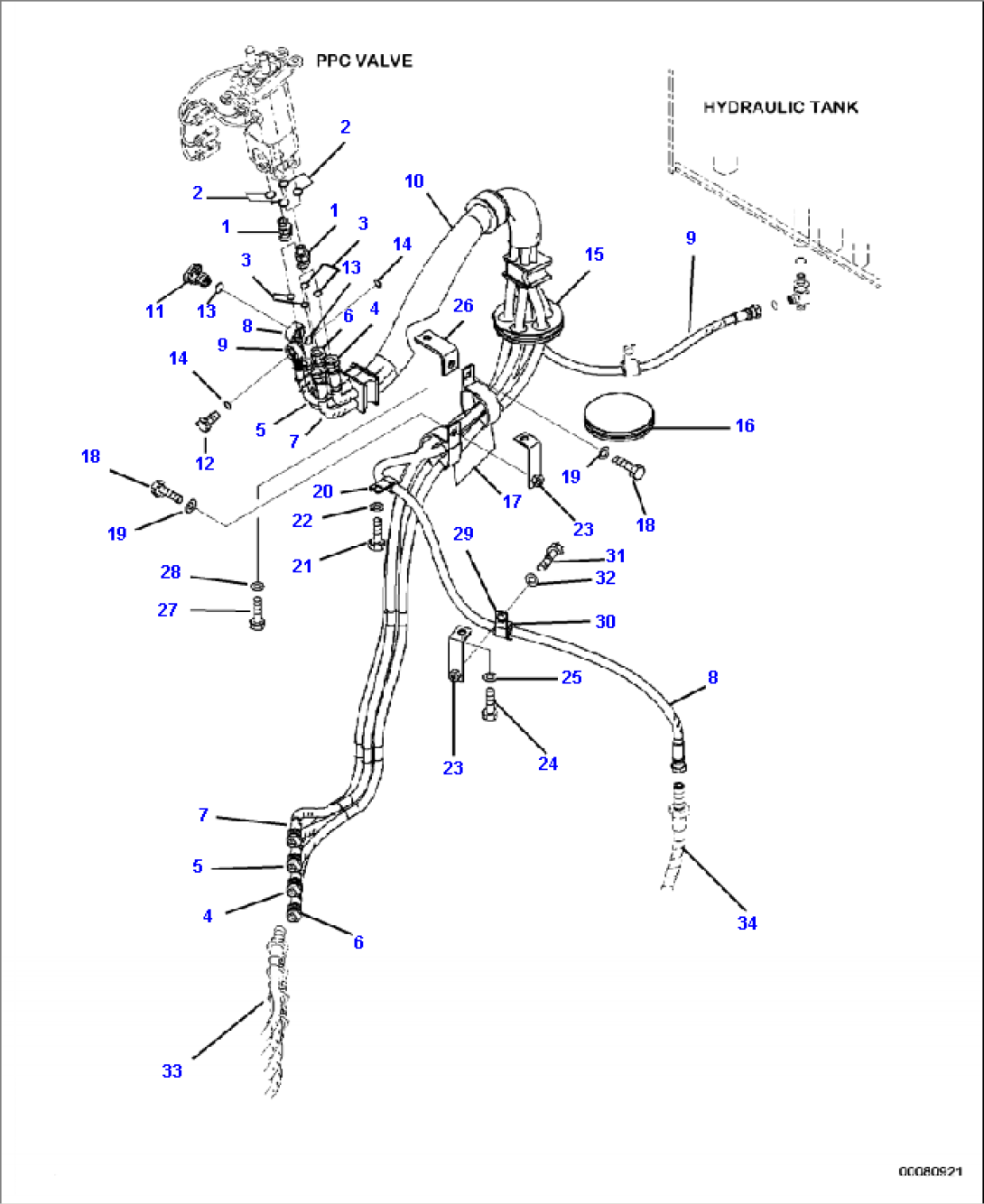

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02781-0031D | UNION | ||
| 2 | 07002-11423 | O-RING | ||
| 3 | 02896-11009 | O-RING | ||
| 423-43-48501 | HOSE ASSEMBLY | |||
| 4 | 423-43-48511 | HOSE, GREEN | ||
| N/I | 21U-62-34730 | BAND, GREEN | ||
| 5 | 423-43-48521 | HOSE, YELLOW | ||
| N/I | 21U-62-34710 | BAND, YELLOW | ||
| 6 | 423-43-48531 | HOSE, WHITE | ||
| N/I | 21U-62-34770 | BAND, WHITE | ||
| 7 | 423-43-48541 | HOSE, BLUE | ||
| N/I | 21U-62-34750 | BAND, BLUE | ||
| 8 | 423-43-48351 | HOSE, RED-BLACK | ||
| N/I | 21U-62-34760 | BAND, RED | ||
| N/I | 21U-62-34720 | BAND, BLACK | ||
| 9 | 423-43-48361 | HOSE, BLACK | ||
| N/I | 21U-62-34720 | BAND, BLACK | ||
| 10 | 08210-02911 | SPIRAL TUBE | ||
| 11 | 20Y-62-18910 | BOLT | ||
| 12 | 20Y-62-18890 | BOLT | ||
| 13 | 07000-02018 | O-RING | ||
| 14 | 07000-02015 | O-RING | ||
| 15 | 423-43-38320 | GROMMET | ||
| 16 | 423-43-38330 | GROMMET | ||
| 17 | 21K-03-11190 | CLIP | ||
| 18 | 01010-81020 | BOLT | ||
| 19 | 01643-31032 | WASHER | ||
| 20 | 04434-51510 | CLIP | ||
| 21 | 01010-81020 | BOLT | ||
| 22 | 01643-31032 | WASHER | ||
| 23 | 361-62-21111 | BRACKET | ||
| 24 | 01010-81020 | BOLT | ||
| 25 | 01643-31032 | WASHER | ||
| 26 | 417-963-1620 | BRACKET | ||
| 27 | 01010-81020 | BOLT | ||
| 28 | 01643-31032 | WASHER | ||
| 29 | 04434-52112 | CLIP | ||
| 30 | 07095-20314 | CUSHION | ||
| 31 | 01010-81020 | BOLT | ||
| 32 | 01643-31032 | WASHER | ||
| 33 | HOSE, 570 MM ( SEE FIG. K4460-02A0 ) | |||
| 34 | HOSE ( SEE FIG. H4200-06A0 ) |
