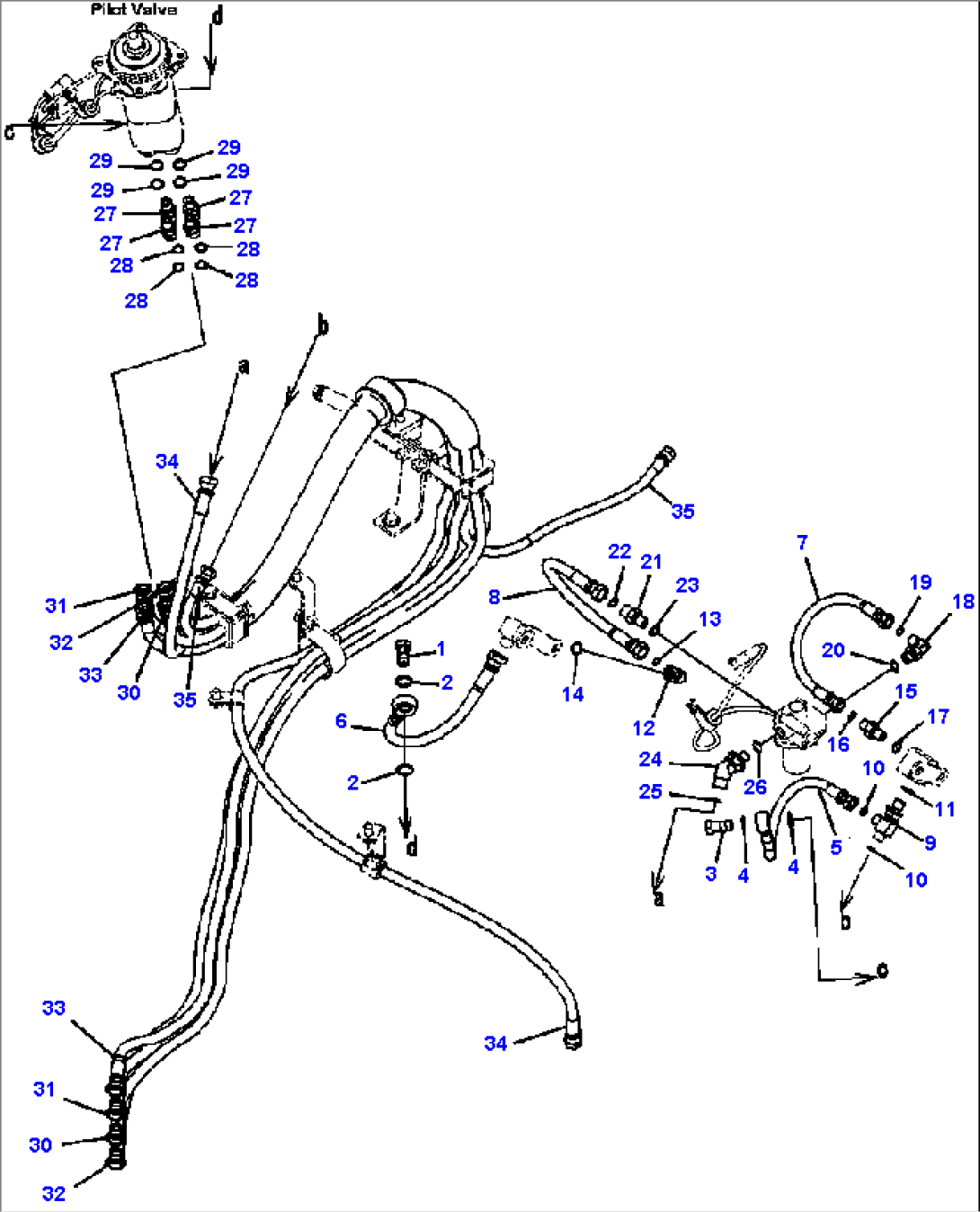

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-62-18910 | BOLT | A45001-- | |
| 2 | 07000-12018 | O-RING | A45001-- | |
| 3 | 20Y-62-18890 | BOLT | A45001-- | |
| 4 | 07000-12015 | O-RING | A45001-- | |
| 5 | 423-V91-4411 | HOSE, 350 MM, BLACK | A45001-- | |
| N/I | 21U-62-34720 | BAND, BLACK | A45001-- | |
| 6 | 423-S35-4431 | HOSE, 300 MM | A45001-- | |
| 7 | 02760-00203 | HOSE | A45001-- | |
| 8 | 02760-003A3 | HOSE | A45001-- | |
| 9 | 11Y-62-12330 | ELBOW | A45001-- | |
| 10 | 02896-11008 | O-RING | A45001-- | |
| 11 | 07002-11423 | O-RING | A45001-- | |
| 12 | 02782-10311 | ELBOW | A45001-- | |
| 13 | 02896-11009 | O-RING | A45001-- | |
| 14 | 07002-11423 | O-RING | A45001-- | |
| 15 | 02781-0021D | UNION | A45001-- | |
| 16 | 02896-11008 | O-RING | A45001-- | |
| 17 | 07002-11423 | O-RING | A45001-- | |
| 18 | 02782-10210 | ELBOW | A45001-- | |
| 19 | 02896-11008 | O-RING | A45001-- | |
| 20 | 07002-11423 | O-RING | A45001-- | |
| 21 | 02781-0031D | UNION | A45001-- | |
| 22 | 02896-11009 | O-RING | A45001-- | |
| 23 | 07002-11423 | O-RING | A45001-- | |
| 24 | 11Y-62-12510 | ELBOW | A45001-- | |
| 25 | 02896-11009 | O-RING | A45001-- | |
| 26 | 07002-11423 | O-RING | A45001-- | |
| 27 | 02781-0031D | UNION | A45001-- | |
| 28 | 02896-11009 | O-RING | A45001-- | |
| 29 | 07002-11423 | O-RING | A45001-- | |
| 30 | 421-V91-4210 | HOSE, 2180 MM, GREEN | A45001-- | |
| N/I | 21U-62-34730 | BAND, GREEN | A45001-- | |
| 31 | 423-V91-4421 | HOSE, 2110 MM, BLUE | A45001-- | |
| N/I | 21U-62-34750 | BAND, BLUE | A45001-- | |
| 32 | 421-V91-4230 | HOSE, 2120 MM, WHITE | A45001-- | |
| N/I | 21U-62-34770 | BAND, WHITE | A45001-- | |
| 33 | 423-V91-4441 | HOSE, 2140 MM, YELLOW | A45001-- | |
| N/I | 21U-62-34710 | BAND, YELLOW | A45001-- | |
| 34 | 421-V91-4410 | HOSE, 2530 MM, RED-BLACK | A45001-- | |
| N/I | 21U-62-34760 | BAND, RED | A45001-- | |
| N/I | 21U-62-34720 | BAND, BLACK | A45001-- | |
| 35 | 421-V91-4260 | HOSE, 1150 MM, BLACK | A45001-- | |
| N/I | 21U-62-34720 | BAND, BLACK | A45001-- |
