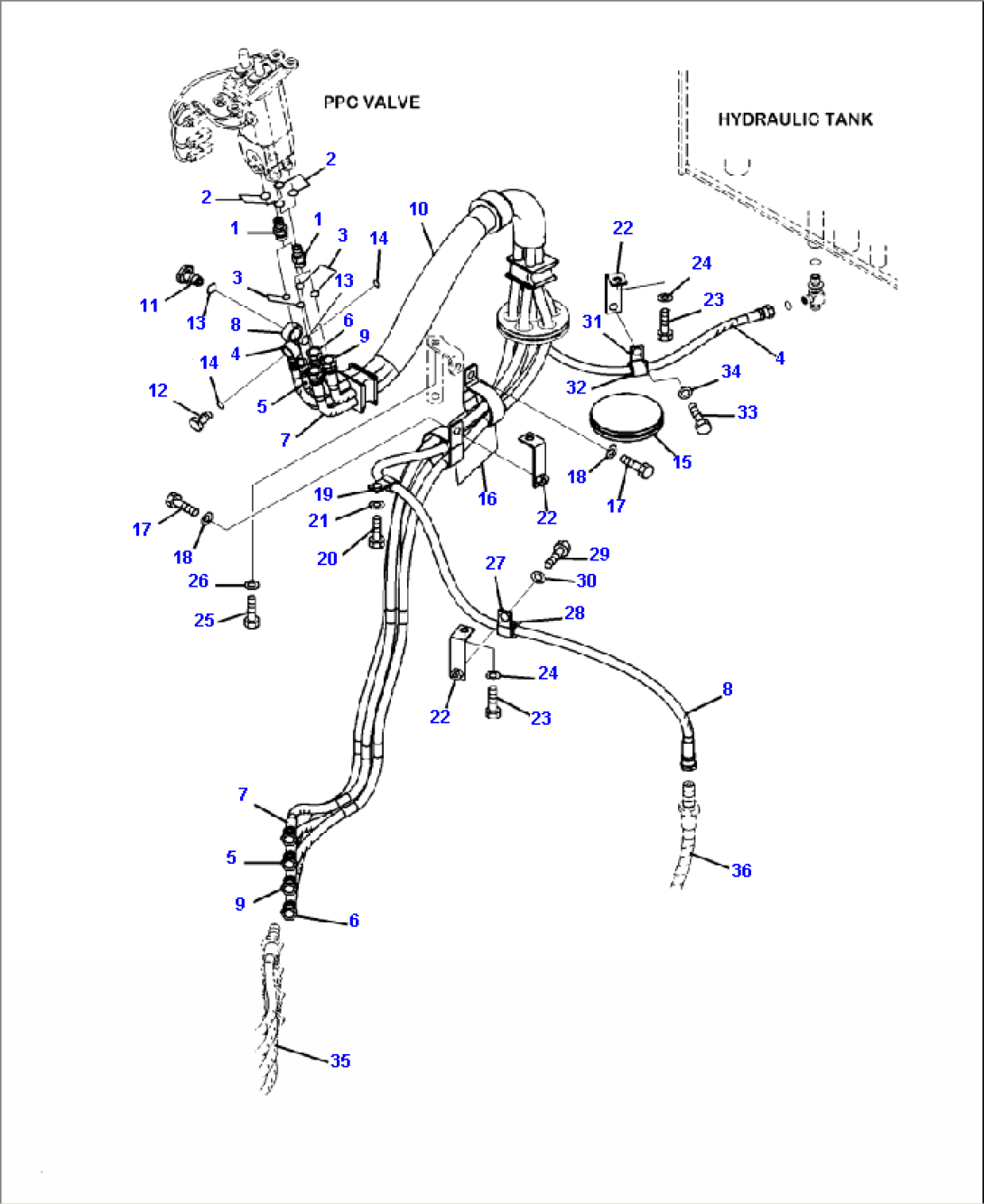

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02781-0031D | UNION | A47001-- | |
| 2 | 07002-11423 | O-RING | A47001-- | |
| 3 | 02896-11009 | O-RING | A47001-- | |
| 421-43-48220 | HOSE ASSEMBLY | A47001-- | ||
| 4 | 421-43-48110 | HOSE, 1760 MM, BLACK | A47001-- | |
| N/I | 21U-62-34720 | BAND, BLACK | A47001-- | |
| 5 | 421-43-48130 | HOSE, 2220 MM, YELLOW | A47001-- | |
| N/I | 21U-62-34710 | BAND, YELLOW | A47001-- | |
| 6 | 421-43-48140 | HOSE, 2120 MM, BLACK | A47001-- | |
| N/I | 21U-62-34770 | BAND, WHITE | A47001-- | |
| 7 | 421-43-48150 | HOSE, 2120 MM, BLUE | A47001-- | |
| N/I | 21U-62-34750 | BAND, BLUE | A47001-- | |
| 8 | 423-43-48351 | HOSE, 2450 MM, RED-BLACK | A47001-- | |
| N/I | 21U-62-34760 | BAND, RED | A47001-- | |
| N/I | 21U-62-34720 | BAND, BLACK | A47001-- | |
| 9 | 423-43-48511 | HOSE, 2150 MM, GREEN | A47001-- | |
| N/I | 21U-62-34730 | BAND, GREEN | A47001-- | |
| 10 | 08210-02911 | SPIRAL TUBE | A47001-- | |
| 11 | 20Y-62-18910 | BOLT | A47001-- | |
| 12 | 20Y-62-18890 | BOLT | A47001-- | |
| 13 | 07000-12018 | O-RING | A47001-- | |
| 14 | 07000-12015 | O-RING | A47001-- | |
| 15 | 423-43-38330 | GROMMET | A47001-- | |
| 16 | 21K-03-11190 | CLIP | A47001-- | |
| 17 | 01010-81020 | BOLT | A47001-- | |
| 18 | 01643-31032 | WASHER | A47001-- | |
| 19 | 04434-51510 | CLIP | A47001-- | |
| 20 | 01010-81020 | BOLT | A47001-- | |
| 21 | 01643-31032 | WASHER | A47001-- | |
| 22 | 361-62-21111 | BRACKET | A47001-- | |
| 23 | 01010-81020 | BOLT | A47001-- | |
| 24 | 01643-31032 | WASHER | A47001-- | |
| 25 | 01010-81020 | BOLT | A47001-- | |
| 26 | 01643-31032 | WASHER | A47001-- | |
| 27 | 04434-52112 | CLIP | A47001-- | |
| 28 | 07095-20314 | CUSHION | A47001-- | |
| 29 | 01010-81020 | BOLT | A47001-- | |
| 30 | 01643-31032 | WASHER | A47001-- | |
| 31 | 04434-51712 | CLIP | A47001-- | |
| 32 | 07095-20211 | CUSHION | A47001-- | |
| 33 | 01010-81020 | BOLT | A47001-- | |
| 34 | 01643-31032 | WASHER | A47001-- | |
| 35 | HOSE (SEE FIG. H4200-04A0 ) | A47001-- | ||
| 36 | HOSE, 460 MM (SEE FIG. K4460-03A0) | A47001-- |
