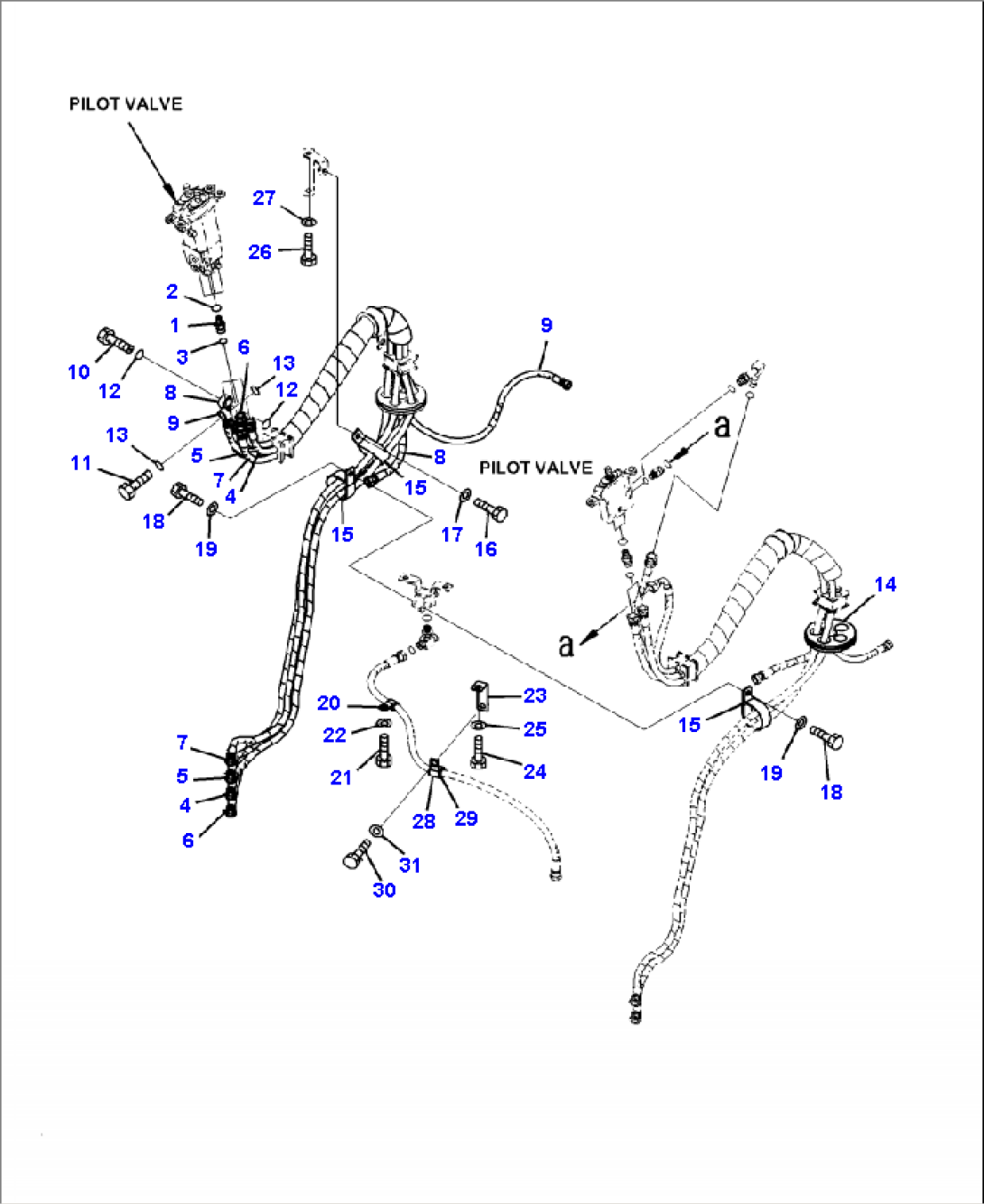

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02781-0031D | UNION | A47001-- | |
| 2 | 07002-11423 | O-RING | A47001-- | |
| 3 | 02896-11009 | O-RING | A47001-- | |
| 421-877-4201 | HOSE ASSEMBLY | A47001-- | ||
| 4 | 421-877-4170 | HOSE, 2150 MM, GREEN | A47001-- | |
| N/I | 21U-62-34730 | BAND, GREEN | A47001-- | |
| 5 | 421-43-48130 | HOSE, 2200 MM, YELLOW | A47001-- | |
| N/I | 21U-62-34710 | BAND, YELLOW | A47001-- | |
| 6 | 421-43-48140 | HOSE, 2120 MM, WHITE | A47001-- | |
| N/I | 21U-62-34770 | BAND, WHITE | A47001-- | |
| 7 | 421-43-48150 | HOSE, 2120 MM, BLUE | A47001-- | |
| N/I | 21U-62-34750 | BAND, BLUE | A47001-- | |
| 8 | 423-877-4170 | HOSE, 1320 MM, RED-BLACK | A47001-- | |
| N/I | 21U-62-34760 | BAND, RED | A47001-- | |
| N/I | 21U-62-34720 | BAND, BLACK | A47001-- | |
| 9 | 421-877-4210 | HOSE, 1250 MM, BLACK | A47001-- | |
| N/I | 21U-62-34720 | BAND, BLACK | A47001-- | |
| 10 | 20Y-62-18910 | BOLT | A47001-- | |
| 11 | 20Y-62-18890 | BOLT | A47001-- | |
| 12 | 07000-12018 | O-RING | A47001-- | |
| 13 | 07000-12015 | O-RING | A47001-- | |
| 14 | 423-877-4750 | GROMMET | A47001-- | |
| 15 | 21K-03-11190 | CLIP | A47001-- | |
| 16 | 01010-81020 | BOLT | A47001-- | |
| 17 | 01643-31032 | WASHER | A47001-- | |
| 18 | 01010-81016 | BOLT | A47001-- | |
| 19 | 01643-31032 | WASHER | A47001-- | |
| 20 | 04434-51510 | CLIP | A47001-- | |
| 21 | 01010-81020 | BOLT | A47001-- | |
| 22 | 01643-31032 | WASHER | A47001-- | |
| 23 | 361-62-21111 | BRACKET | A47001-- | |
| 24 | 01010-81020 | BOLT | A47001-- | |
| 25 | 01643-31032 | WASHER | A47001-- | |
| 26 | 01010-81020 | BOLT | A47001-- | |
| 27 | 01643-31032 | WASHER | A47001-- | |
| 28 | 04434-52112 | CLIP | A47001-- | |
| 29 | 07095-20314 | CUSHION | A47001-- | |
| 30 | 01010-81020 | BOLT | A47001-- | |
| 31 | 01643-31032 | WASHER | A47001-- |
