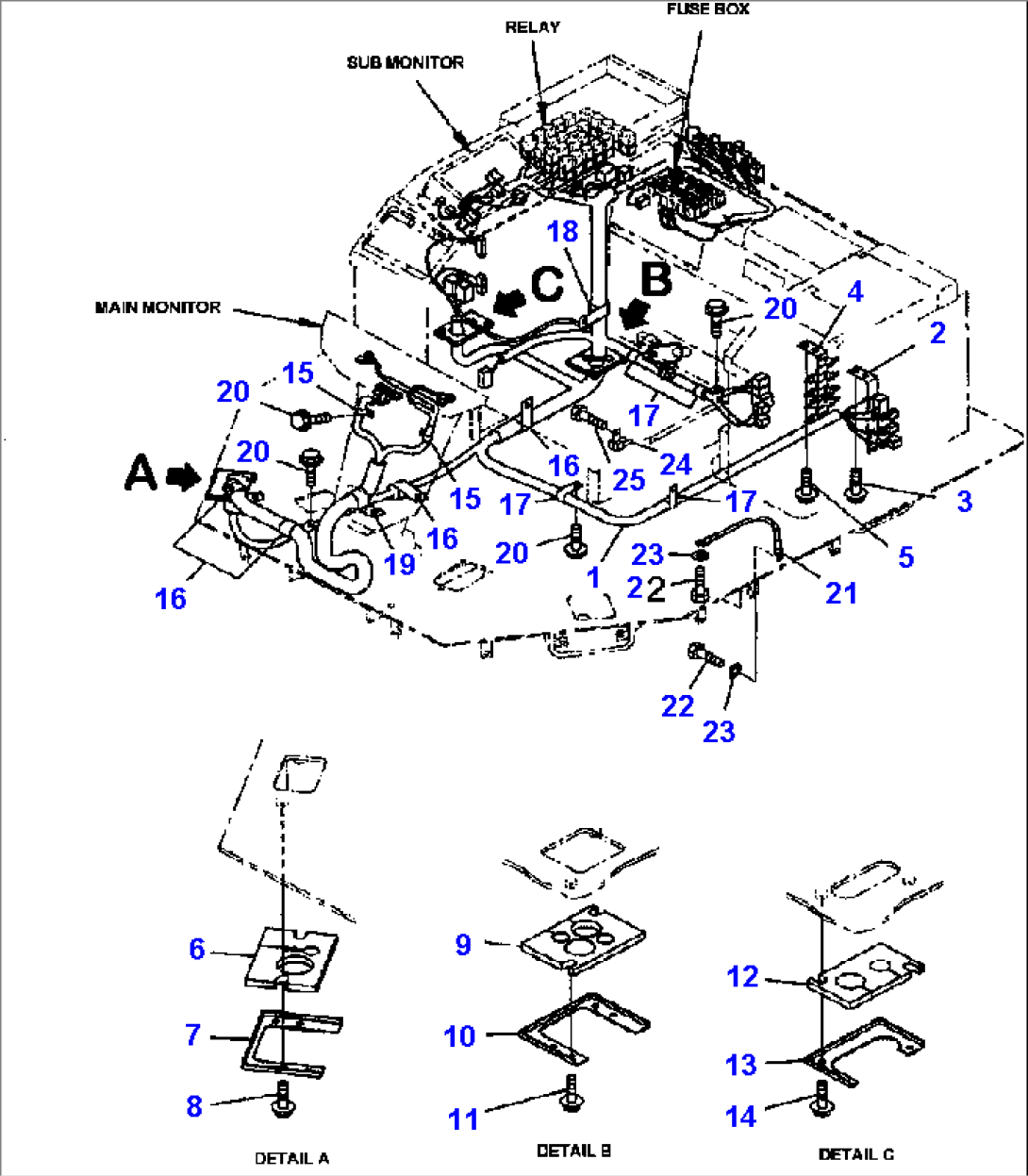

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-06-A2413 | HARNESS, FLOOR | A50001-- | |
| 425-S33-2290 | CONNECTOR, SELECTION | A50001-- | ||
| 427-06-22240 | CONNECTOR, SELECTION | A50001-- | ||
| 2 | 421-06-22940 | BRACKET | A50001-- | |
| 3 | 01435-01016 | BOLT | A50001-- | |
| 4 | 421-06-22950 | BRACKET | A50001-- | |
| 5 | 01435-01016 | BOLT | A50001-- | |
| 6 | 426-06-22520 | SHEET | A50001-- | |
| 7 | 419-06-22530 | PLATE | A50001-- | |
| 8 | 01435-00610 | BOLT | A50001-- | |
| 9 | 421-06-22540 | SHEET | A50001-- | |
| 10 | 419-06-22530 | PLATE | A50001-- | |
| 11 | 01435-00610 | BOLT | A50001-- | |
| 12 | 425-06-22740 | SHEET | A50001-- | |
| 13 | 421-06-22730 | PLATE | A50001-- | |
| 14 | 01435-00610 | BOLT | A50001-- | |
| 15 | 04434-52712 | CLIP | A50001-- | |
| 16 | 04434-53412 | CLIP | A50001-- | |
| 17 | 08036-02514 | CLIP | A50001-- | |
| 18 | 281-01-13180 | CLIP | A50001-- | |
| 19 | 427-06-11180 | CLAMP | A50001-- | |
| 20 | 01435-01016 | BOLT | A50001-- | |
| 21 | 08028-12045 | CABLE, GROUND | A50001-- | |
| 22 | 01010-81016 | BOLT | A50001-- | |
| 23 | 01643-31032 | WASHER | A50001-- | |
| 24 | 426-S33-2240 | PLATE, HARNESS SUPPORT | A50001-- | |
| 25 | 01435-00812 | BOLT | A50001-- |
