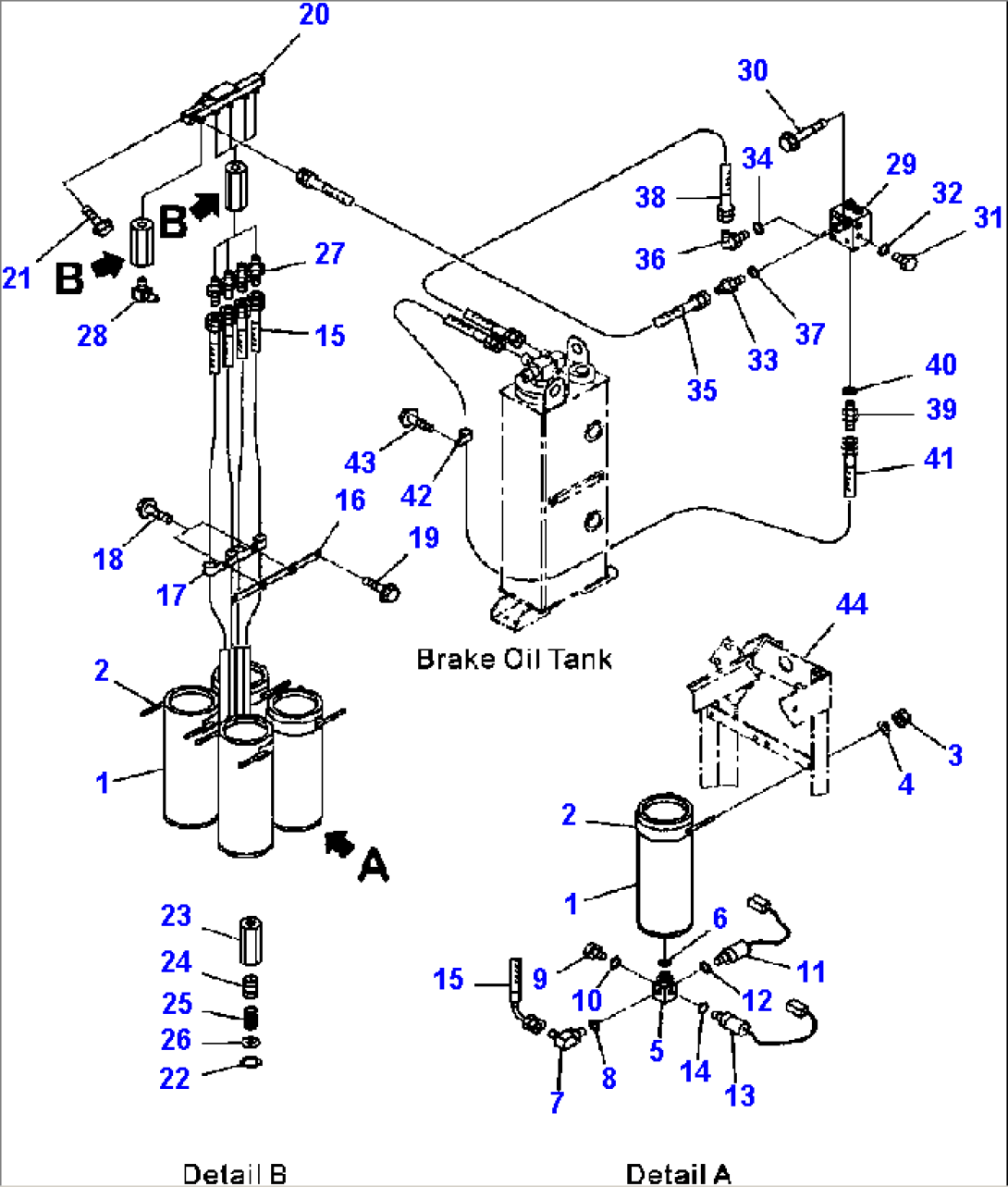

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | ACCUMULATOR (SEE FIG. K4460-02A1 ) | A50001-- | ||
| 2 | 426-43-27461 | BAND | A50001-- | |
| 3 | 421-40-12440 | NUT | A50001-- | |
| 4 | 01643-31232 | WASHER | A50001-- | |
| 5 | 426-43-27450 | TEE | A50001-- | |
| 6 | 07002-12034 | O-RING | A50001-- | |
| 7 | 415-16-11452 | ELBOW | A50001-- | |
| 8 | 07002-12034 | O-RING | A50001-- | |
| 9 | 07040-11409 | PLUG | A50001-- | |
| 10 | 07002-11423 | O-RING | A50001-- | |
| 11 | 421-43-22912 | SWITCH, PRESSURE | A50001-- | |
| 12 | 07002-11423 | O-RING | A50001-- | |
| 13 | 421-43-22922 | SWITCH, PRESSURE | A50001-- | |
| 14 | 07002-11423 | O-RING | A50001-- | |
| 15 | 427-43-27220 | HOSE | A50001-- | |
| 16 | 427-43-27430 | PLATE | A50001-- | |
| 17 | 04434-52712 | CLIP | A50001-- | |
| 18 | 01435-01020 | BOLT | A50001-- | |
| 19 | 01435-01020 | BOLT | A50001-- | |
| 20 | 427-43-21210 | JOINT | A50001-- | |
| 21 | 01435-01020 | BOLT | A50001-- | |
| 421-43-22951 | VALVE ASSEMBLY, CHECK | A50001-- | ||
| 22 | 04065-01410 | RING, SNAP | A50001-- | |
| 23 | 419-43-27571 | BODY | A50001-- | |
| 24 | 419-43-27580 | POPPET | A50001-- | |
| 25 | 419-43-27590 | SPRING | A50001-- | |
| 26 | 205-60-51420 | SEAT | A50001-- | |
| 27 | 427-43-21230 | CONNECTOR | A50001-- | |
| 28 | 427-43-21250 | ELBOW | A50001-- | |
| 29 | VALVE ASSEMBLY, ACCUMULATOR CHARGE (SEE FIG. K4460-05A0 ) | A50001-- | ||
| 30 | ||||
| 30 | 01435-01090 | BOLT | A50001-- | |
| 31 | 07040-11409 | PLUG | A50001-- | |
| 32 | 07002-11423 | O-RING | A50001-- | |
| 33 | 07230-20210 | UNION | A50001-- | |
| 34 | 07002-11423 | O-RING | A50001-- | |
| 35 | 07108-20204 | HOSE | A50001-- | |
| 36 | 07235-10315 | ELBOW | A50001-- | |
| 37 | 07002-12034 | O-RING | A50001-- | |
| 38 | 07102-20306 | HOSE | A50001-- | |
| 39 | 07230-20315 | UNION | A50001-- | |
| 40 | 07002-12034 | O-RING | A50001-- | |
| 41 | 427-43-27250 | HOSE | A50001-- | |
| 42 | 04434-51710 | CLIP | A50001-- | |
| 43 | 01435-01020 | BOLT | A50001-- | |
| 44 | BRACKET (SEE FIG. K4460-04A0 ) | A50001-- |
