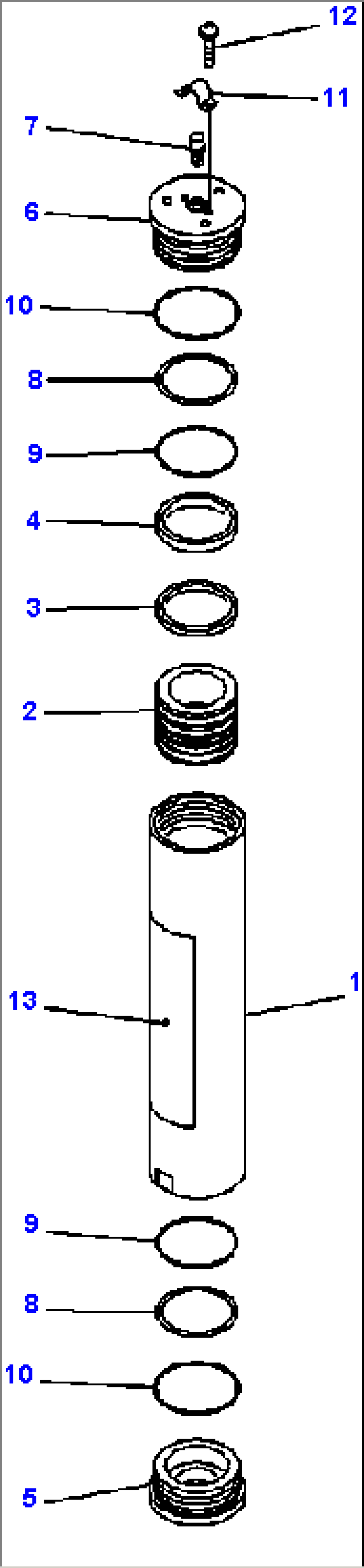

| Item | Part No. | Part Name | Qty | Serial No. |
| 721-32-08190 | ACCUMULATOR ASSEMBLY (FINAL COATING) | A45001-- | ||
| 721-32-10281 | ACCUMULATOR ASSEMBLY | A45001-- | ||
| 1 | 721-10-10320 | CYLINDER | A45001-- | |
| 2 | 721-36-10030 | PISTON | A45001-- | |
| 3 | 721-47-12020 | RING | A45001-- | |
| 4 | 721-47-12080 | SEAL | A45001-- | |
| 5 | 721-26-10050 | COVER, BOTTOM | A45001-- | |
| 6 | 721-29-10090 | COVER, TOP | A45001-- | |
| 7 | 721-89-12011 | VALVE | A45001-- | |
| 8 | 707-35-91020 | RING, BACK-UP | A45001-- | |
| 9 | 07000-15090 | O-RING | A45001-- | |
| 10 | 07000-12100 | O-RING | A45001-- | |
| 11 | 707-88-45770 | COVER | A45001-- | |
| 12 | 707-88-81480 | SCREW | A45001-- | |
| 13 | (NSS) | PLATE, SPECIFICATION | A45001-- |
