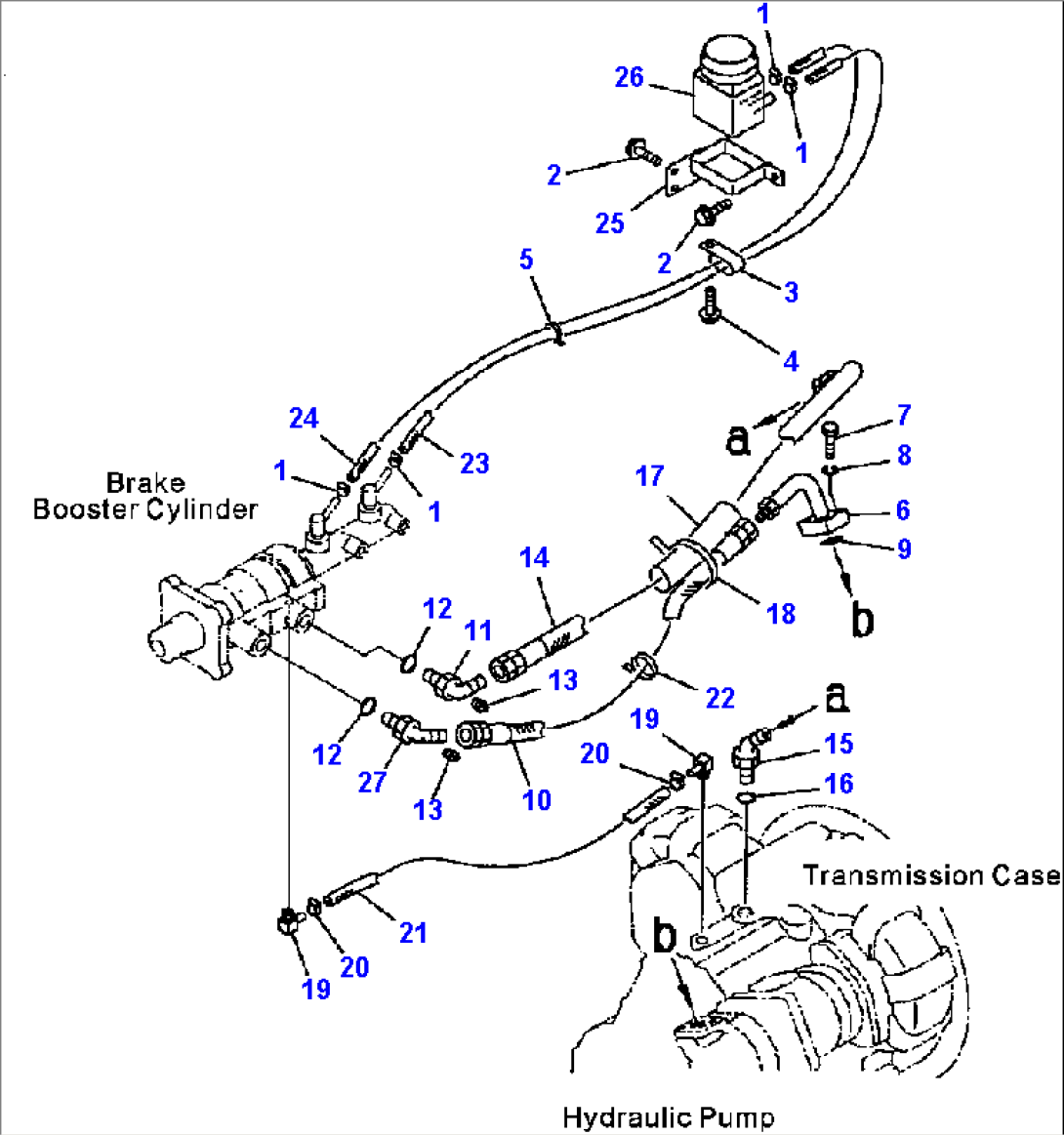

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6743-82-8150 | CLAMP | A71001 -- | |
| 2 | 01435-00816 | BOLT | A71001 -- | |
| 3 | 391-62-19240 | CLIP | A71001 -- | |
| 4 | 01435-01016 | BOLT | A71001 -- | |
| 5 | 08034-20519 | BAND | A71001 -- | |
| 6 | 418-43-27220 | TUBE | A71001 -- | |
| 7 | 01010-80840 | BOLT | A71001 -- | |
| 8 | 01602-20825 | WASHER | A71001 -- | |
| 9 | 07000-13030 | O-RING | A71001 -- | |
| 10 | 07102-20507 | HOSE | A71001 -- | |
| 11 | 07235-50628 | ELBOW | A71001 -- | |
| 12 | 07002-12434 | O-RING | A71001 -- | |
| 13 | 07042-30108 | PLUG | A71001 -- | |
| 14 | 418-43-27230 | HOSE | A71001 -- | |
| 15 | 07236-10628 | ELBOW | A71001 -- | |
| 16 | 07002-12434 | O-RING | A71001 -- | |
| 17 | 417-963-2860 | PROTECTOR | A71001 -- | |
| 18 | 08034-20536 | BAND | A71001 -- | |
| 19 | 417-43-17640 | ELBOW | A71001 -- | |
| 20 | 6743-82-8150 | CLAMP | A71001 -- | |
| 21 | 07260-20987 | HOSE | A71001 -- | |
| 22 | 08034-20519 | BAND | A71001 -- | |
| 23 | 07261-20913 | HOSE | A71001 -- | |
| 24 | 07261-20912 | HOSE | A71001 -- | |
| 25 | 418-43-27250 | BRACKET | A71001 -- | |
| 26 | 417-43-27180 | RESERVOIR | A71001 -- | |
| N/I | 418-43-17910 | CAP | A71001 -- | |
| N/I | 418-43-17921 | DIAPHRAGM | A71001 -- | |
| N/I | 417-43-27190 | SENSOR | A71001 -- | |
| 27 | 07235-50522 | ELBOW | A71001 -- |
