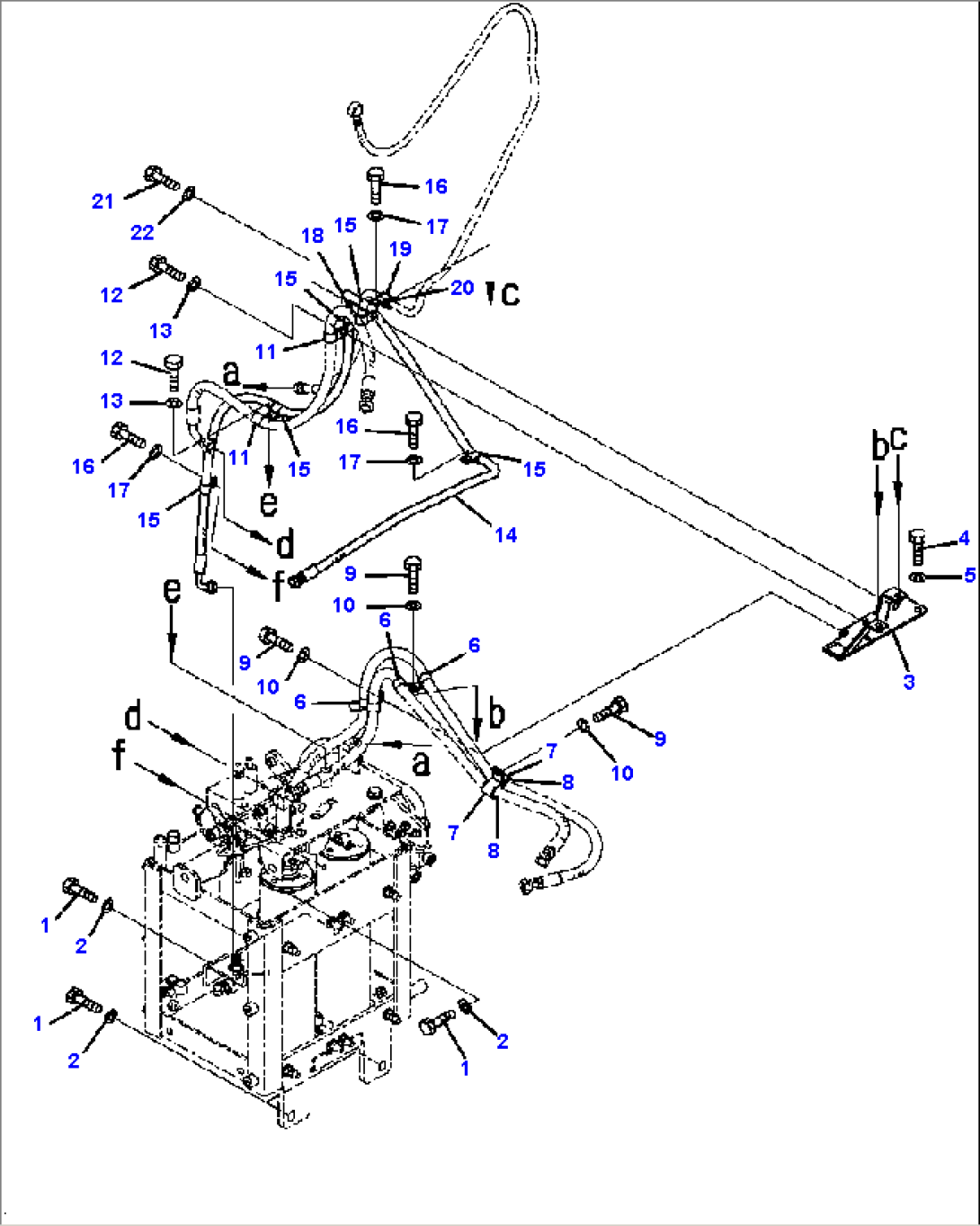

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81435 | BOLT | A45001-- | |
| 2 | 01643-31445 | WASHER | A45001-- | |
| 3 | 421-43-47890 | BRACKET | A45001-- | |
| 4 | 01010-81020 | BOLT | A45001-- | |
| 5 | 01643-31032 | WASHER | A45001-- | |
| 6 | 04434-51912 | CLIP | A45001-- | |
| 7 | 04434-52711 | CLIP | A45001-- | |
| 8 | 07095-20419 | CUSHION | A45001-- | |
| 9 | 01010-81025 | BOLT | A45001-- | |
| 10 | 01643-31032 | WASHER | A45001-- | |
| 11 | 04434-51812 | CLIP | A45001-- | |
| 12 | 01010-81025 | BOLT | A45001-- | |
| 13 | 01643-31032 | WASHER | A45001-- | |
| 14 | 421-S33-4350 | HOSE, 2315 MM | A45001-- | |
| 15 | 04434-51512 | CLIP | A45001-- | |
| 16 | 01010-81025 | BOLT | A45001-- | |
| 17 | 01643-31032 | WASHER | A45001-- | |
| 18 | 04434-51512 | CLIP | A45001-- | |
| 19 | 04434-52112 | CLIP | A45001-- | |
| 20 | 07095-20314 | CUSHION | A45001-- | |
| 21 | 01010-81025 | BOLT | A45001-- | |
| 22 | 01643-31032 | WASHER | A45001-- |
