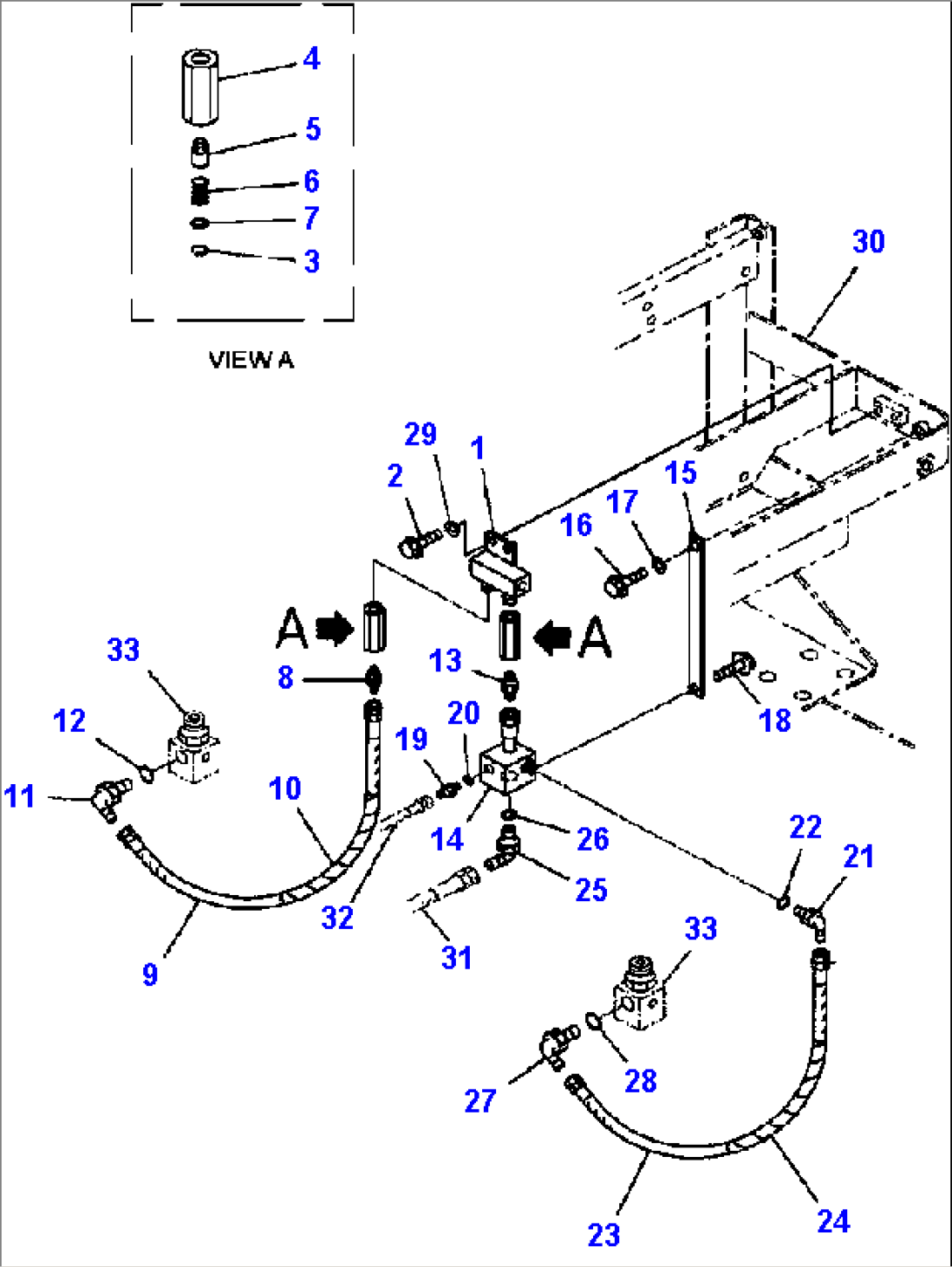

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-43-22330 | JOINT | A52001-- | |
| 2 | 01435-01020 | BOLT | A52001-- | |
| 421-43-22951 | VALVE ASSEMBLY, CHECK | A52001-- | ||
| 3 | 04065-01410 | RING, SNAP | A52001-- | |
| 4 | 419-43-27571 | BODY | A52001-- | |
| 5 | 419-43-27580 | POPPET | A52001-- | |
| 6 | 419-43-27590 | SPRING | A52001-- | |
| 7 | 205-60-51420 | SEAT | A52001-- | |
| 8 | 07238-10315 | CONNECTOR | A52001-- | |
| 9 | 07108-20306 | HOSE | A52001-- | |
| 10 | 361-18-21430 | PROTECTOR | A52001-- | |
| 11 | 07235-10315 | ELBOW | A52001-- | |
| 12 | 07002-12034 | O-RING | A52001-- | |
| 13 | 421-09-12730 | CONNECTOR | A52001-- | |
| 14 | 426-43-27571 | TEE | A52001-- | |
| 15 | 426-43-27980 | PLATE | A52001-- | |
| 16 | 01435-01020 | BOLT | A52001-- | |
| 17 | 01643-31032 | WASHER | A52001-- | |
| 18 | 01435-01016 | BOLT | A52001-- | |
| 19 | 07230-20210 | UNION | A52001-- | |
| 20 | 07002-11423 | O-RING | A52001-- | |
| 21 | 07235-10315 | ELBOW | A52001-- | |
| 22 | 07002-12034 | O-RING | A52001-- | |
| 23 | 07108-20304 | HOSE | A52001-- | |
| 24 | 361-18-21430 | PROTECTOR | A52001-- | |
| 25 | 07235-10422 | ELBOW | A52001-- | |
| 26 | 07002-12034 | O-RING | A52001-- | |
| 27 | 07235-10315 | ELBOW | A52001-- | |
| 28 | 07002-12034 | O-RING | A52001-- | |
| 29 | 01643-31032 | WASHER | A52001-- | |
| 30 | BRACKET (SEE FIG. K4460-08A0 ) | A52001-- | ||
| 31 | HOSE (SEE FIG. K4460-13A0 ) | A52001-- | ||
| 32 | HOSE (SEE FIG. K4460-10A0 ) | A52001-- | ||
| 33 | TEE (SEE FIG. K4460-12A1 ) | A52001-- |
