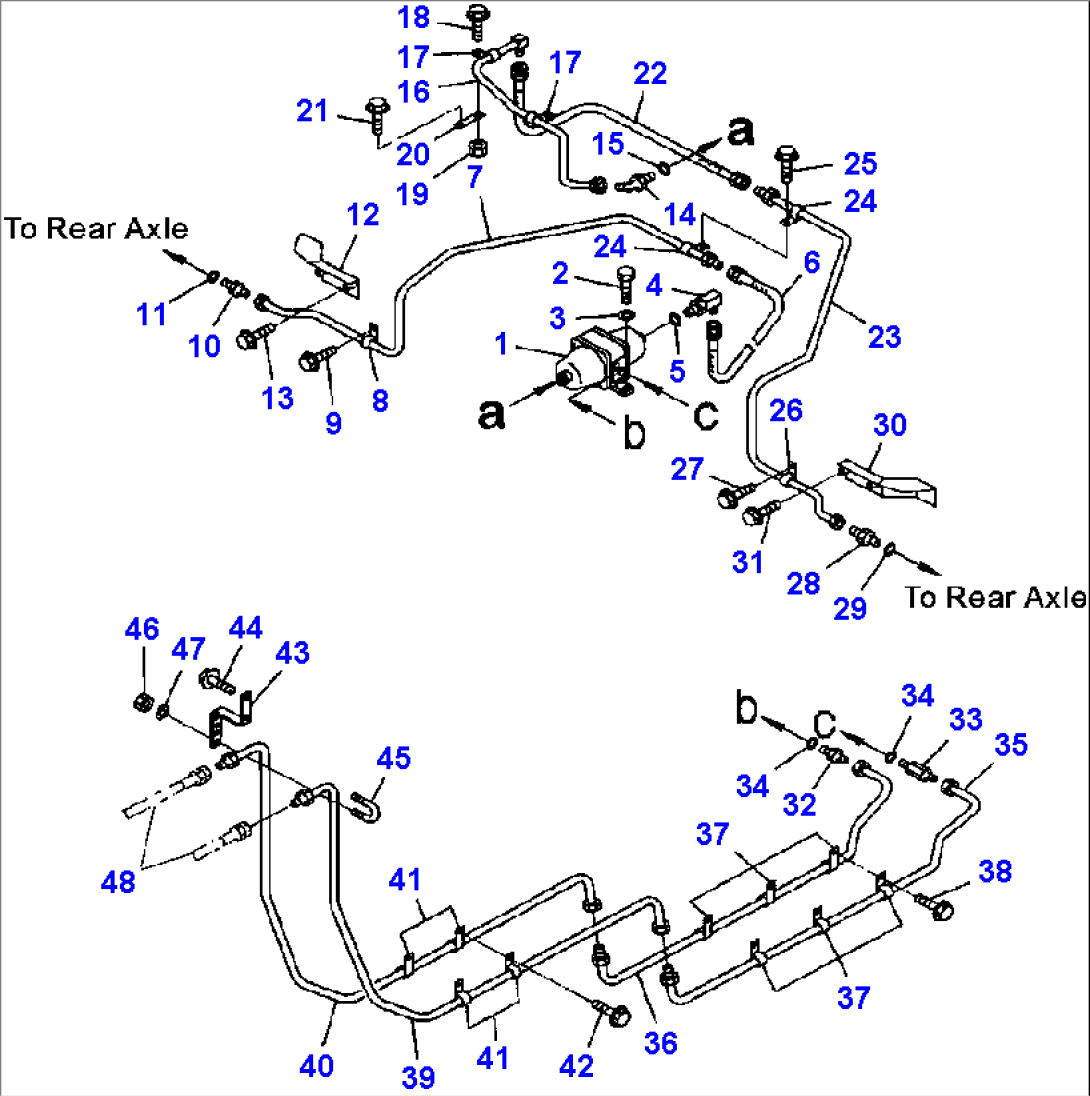

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | ADJUSTER, REAR SLACK (SEE FIG. K4470-09A0 ) | A50001-- | ||
| 2 | ||||
| 2 | 01010-81445 | BOLT | A50001-- | |
| 3 | 01643-31445 | WASHER | A50001-- | |
| 4 | 427-35-13420 | ELBOW | A50001-- | |
| 5 | 07002-12034 | O-RING | A50001-- | |
| 6 | 07109-20407 | HOSE | A50001-- | |
| 7 | 427-43-27460 | TUBE | A50001-- | |
| 8 | 04434-52110 | CLIP | A50001-- | |
| 9 | 01435-01016 | BOLT | A50001-- | |
| 10 | 427-35-11960 | NIPPLE | A50001-- | |
| 11 | 07002-12434 | O-RING | A50001-- | |
| 12 | 427-35-11861 | COVER | A50001-- | |
| 13 | 01435-01045 | BOLT | A50001-- | |
| 14 | 07235-10422 | ELBOW | A50001-- | |
| 15 | 07002-12034 | O-RING | A50001-- | |
| 16 | 427-43-27471 | TUBE | A50001-- | |
| 17 | 04434-52110 | CLIP | A50001-- | |
| 18 | 01435-01016 | BOLT | A50001-- | |
| 19 | 01580-01008 | NUT | A50001-- | |
| 20 | 22T-54-18390 | PLATE | A50001-- | |
| 21 | 01435-01016 | BOLT | A50001-- | |
| 22 | 07109-20407 | HOSE | A50001-- | |
| 23 | 427-43-27450 | TUBE | A50001-- | |
| 24 | 04434-52110 | CLIP | A50001-- | |
| 25 | 01435-01020 | BOLT | A50001-- | |
| 26 | 04434-52112 | CLIP | A50001-- | |
| 27 | 01435-01225 | BOLT | A50001-- | |
| 28 | 427-35-11960 | NIPPLE | A50001-- | |
| 29 | 07002-12434 | O-RING | A50001-- | |
| 30 | 427-35-11851 | COVER | A50001-- | |
| 31 | 01435-01045 | BOLT | A50001-- | |
| 32 | 07230-20422 | UNION | A50001-- | |
| 33 | 21W-62-11290 | UNION | A50001-- | |
| 34 | 07002-12034 | O-RING | A50001-- | |
| 35 | 427-43-27371 | TUBE | A50001-- | |
| 36 | 427-43-27390 | TUBE | A50001-- | |
| 37 | 04434-52110 | CLIP | A50001-- | |
| 38 | 01435-01016 | BOLT | A50001-- | |
| 39 | 427-43-27361 | TUBE | A50001-- | |
| 40 | 427-43-27381 | TUBE | A50001-- | |
| 41 | 04434-52110 | CLIP | A50001-- | |
| 42 | 01435-01016 | BOLT | A50001-- | |
| 43 | 427-43-27492 | BRACKET | A50001-- | |
| 44 | 01435-01220 | BOLT | A50001-- | |
| 45 | 07283-32236 | CLIP | A50001-- | |
| 46 | 01597-01009 | NUT | A50001-- | |
| 47 | 01643-31032 | WASHER | A50001-- | |
| 48 | HOSE (SEE FIG. K4470-04A0 ) | A50001-A50025- | ||
| OR | ||||
| 48 | HOSE (SEE FIG. K4470-23A0 ) | A50026-- |
