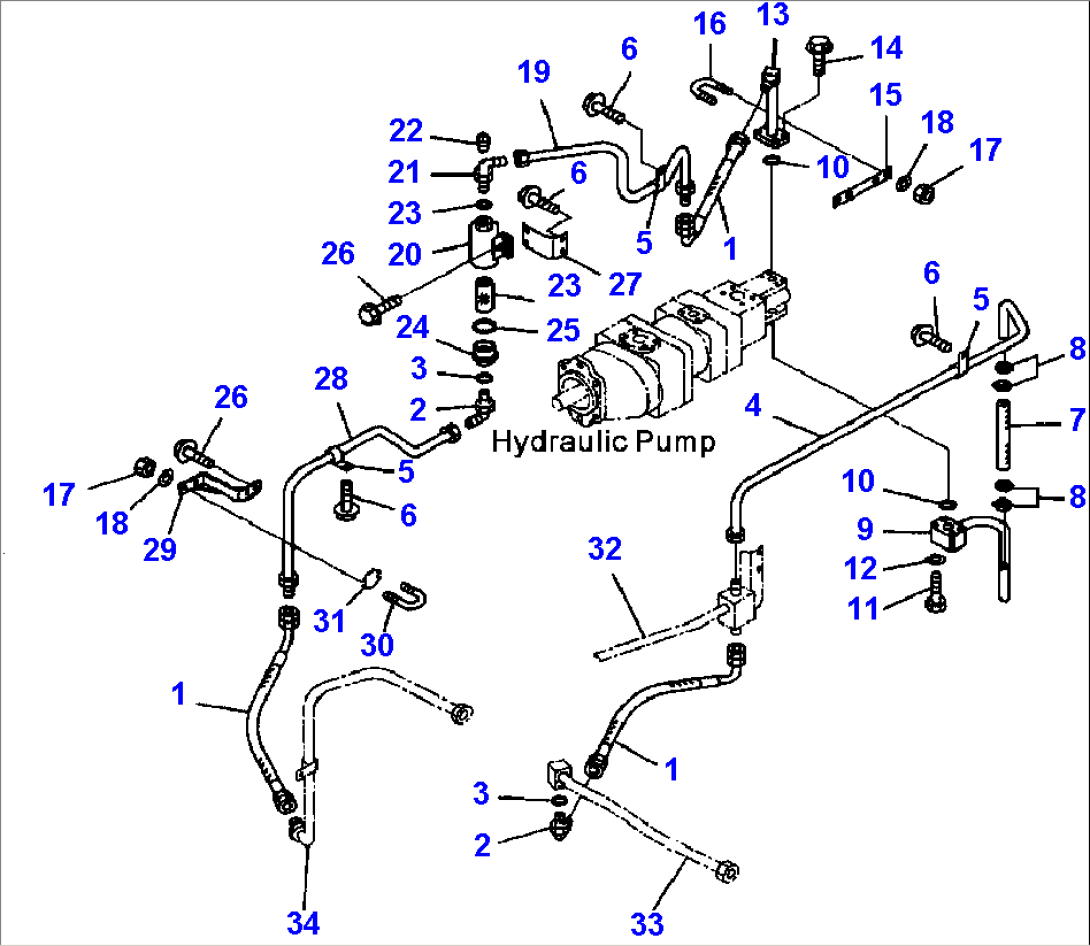

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-43-27230 | HOSE | A50001-- | |
| 2 | 07235-10628 | ELBOW | A50001-- | |
| 3 | 07002-22434 | O-RING | A50001-- | |
| 4 | 427-43-27551 | TUBE | A50001-- | |
| 5 | 04434-52712 | CLIP | A50001-- | |
| 6 | 01435-01016 | BOLT | A50001-- | |
| 7 | 07260-02625 | HOSE | A50001-- | |
| 8 | 07289-00035 | CLAMP | A50001-- | |
| 9 | 427-43-27561 | TUBE | A50001-- | |
| 10 | 07000-F3030 | O-RING | A50001-- | |
| 11 | 01010-81065 | BOLT | A50001-- | |
| 12 | 01643-51032 | WASHER | A50001-- | |
| 13 | 427-43-27540 | TUBE | A50001-- | |
| 14 | 01435-00830 | BOLT | A50001-- | |
| 15 | 427-43-27650 | PLATE | A50001-- | |
| 16 | 07283-32738 | CLIP | A50001-- | |
| 17 | 01597-01009 | NUT | A50001-- | |
| 18 | 01643-31032 | WASHER | A50001-- | |
| 19 | 427-43-27531 | TUBE | A50001-- | |
| 20 | 421-43-22560 | CASE | A50001-- | |
| 21 | 07235-50628 | ELBOW | A50001-- | |
| 22 | 07042-70108 | PLUG | A50001-- | |
| 23 | 421-43-27920 | ELEMENT | A50001-- | |
| 24 | 421-43-22570 | CAP | A50001-- | |
| 25 | 07002-15234 | O-RING | A50001-- | |
| 26 | 01435-01020 | BOLT | A50001-- | |
| 27 | 427-43-27590 | BRACKET | A50001-- | |
| 28 | 427-43-27521 | TUBE | A50001-- | |
| 29 | 427-43-27170 | BRACKET | A50001-- | |
| 30 | 07283-32746 | CLIP | A50001-- | |
| 31 | 07283-52737 | SEAT | A50001-- | |
| 32 | TUBE (SEE FIG. K4470-07A0 ) | A50001-- | ||
| 33 | TUBE (SEE FIG. K4470-01A0 ) | A50001-- | ||
| 34 | TUBE (SEE FIG. K4470-03A0 ) | A50001-- |
