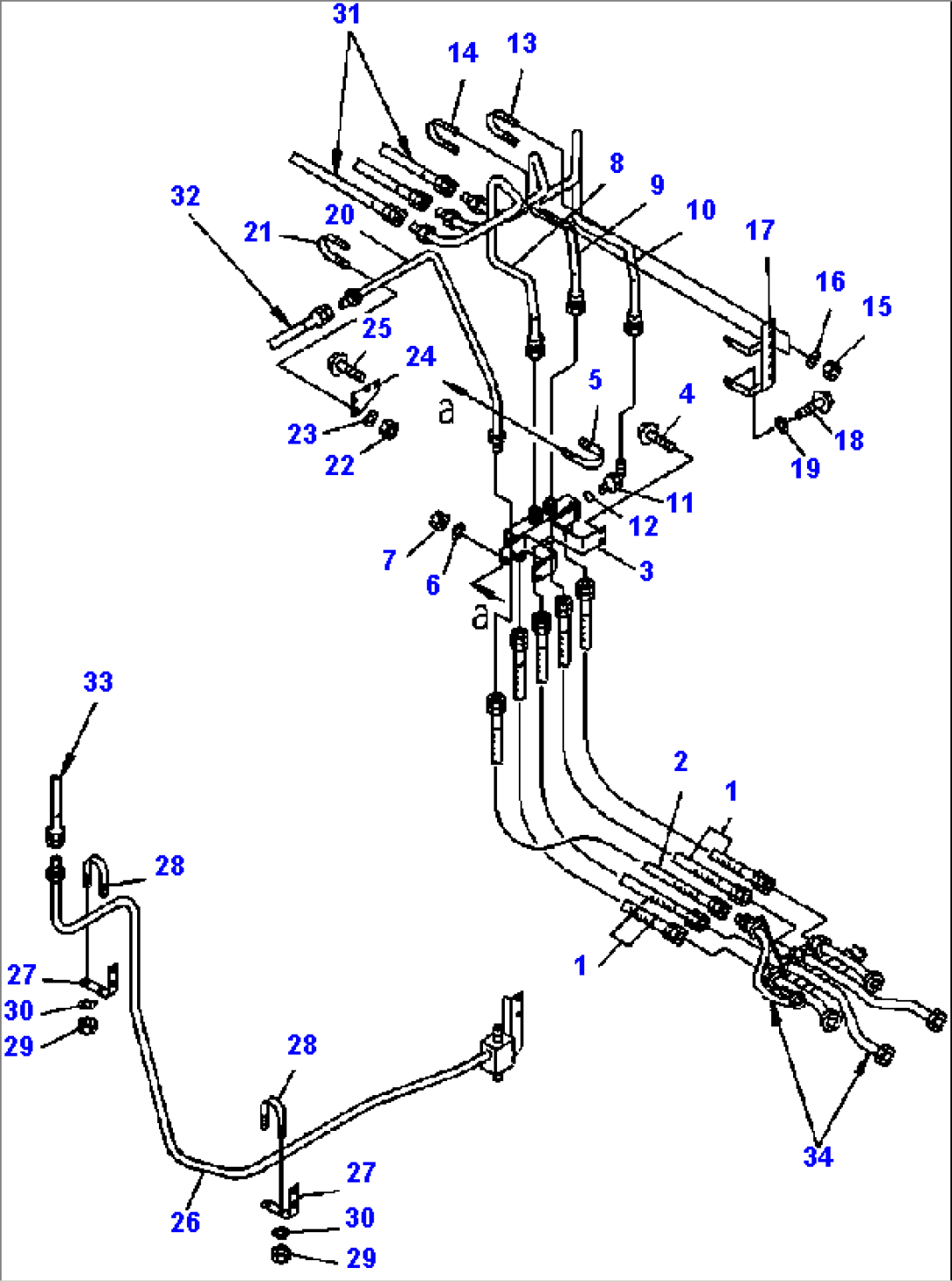

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07108-20607 | HOSE | A50021-A50025- | |
| 2 | 07108-20406 | HOSE | A50021-A50025- | |
| 3 | 427-43-27180 | JOINT | A50021-A50025- | |
| 4 | 01435-01020 | BOLT | A50021-A50025- | |
| 5 | 07283-32236 | CLIP | A50021-A50025- | |
| 6 | 01643-31032 | WASHER | A50021-A50025- | |
| 7 | 01597-01009 | NUT | A50021-A50025- | |
| 8 | 427-43-27910 | TUBE | A50021-A50025- | |
| 9 | 427-43-27920 | TUBE | A50021-A50025- | |
| 10 | 427-43-27930 | TUBE | A50021-A50025- | |
| 11 | 07235-10422 | ELBOW | A50021-A50025- | |
| 12 | 07002-12034 | O-RING | A50021-A50025- | |
| 13 | 07283-32236 | CLIP | A50021-A50025- | |
| 14 | 07283-32738 | CLIP | A50021-A50025- | |
| 15 | 01597-01009 | NUT | A50021-A50025- | |
| 16 | 01643-31032 | WASHER | A50021-A50025- | |
| 17 | 427-43-27980 | BRACKET | A50021-A50025- | |
| 18 | 01010-81020 | BOLT | A50021-A50025- | |
| 19 | 01643-31032 | WASHER | A50021-A50025- | |
| 20 | 427-43-27670 | TUBE | A50021-A50025- | |
| 21 | 07283-32236 | CLIP | A50021-A50025- | |
| 22 | 01597-01009 | NUT | A50021-A50025- | |
| 23 | 01643-31032 | WASHER | A50021-A50025- | |
| 24 | 427-43-27150 | PLATE | A50021-A50025- | |
| 25 | 01435-01025 | BOLT | A50021-A50025- | |
| 26 | 427-43-27582 | TUBE | A50021-A50025- | |
| 27 | 569-16-11390 | BRACKET | A50021-A50025- | |
| 28 | 07283-33442 | CLIP | A50021-A50025- | |
| 29 | 01597-01009 | NUT | A50021-A50025- | |
| 30 | 01643-31032 | WASHER | A50021-A50025- | |
| 31 | HOSE (SEE FIG. K4470-12A0 ) | A50021-A50025- | ||
| 32 | HOSE (SEE FIG. K4470-08A0 ) | A50021-A50025- | ||
| 33 | HOSE (SEE FIG. K4470-13A0 ) | A50021-A50025- | ||
| 34 | TUBE (SEE FIG. K4460-03A0 ) | A50021-A50025- |
