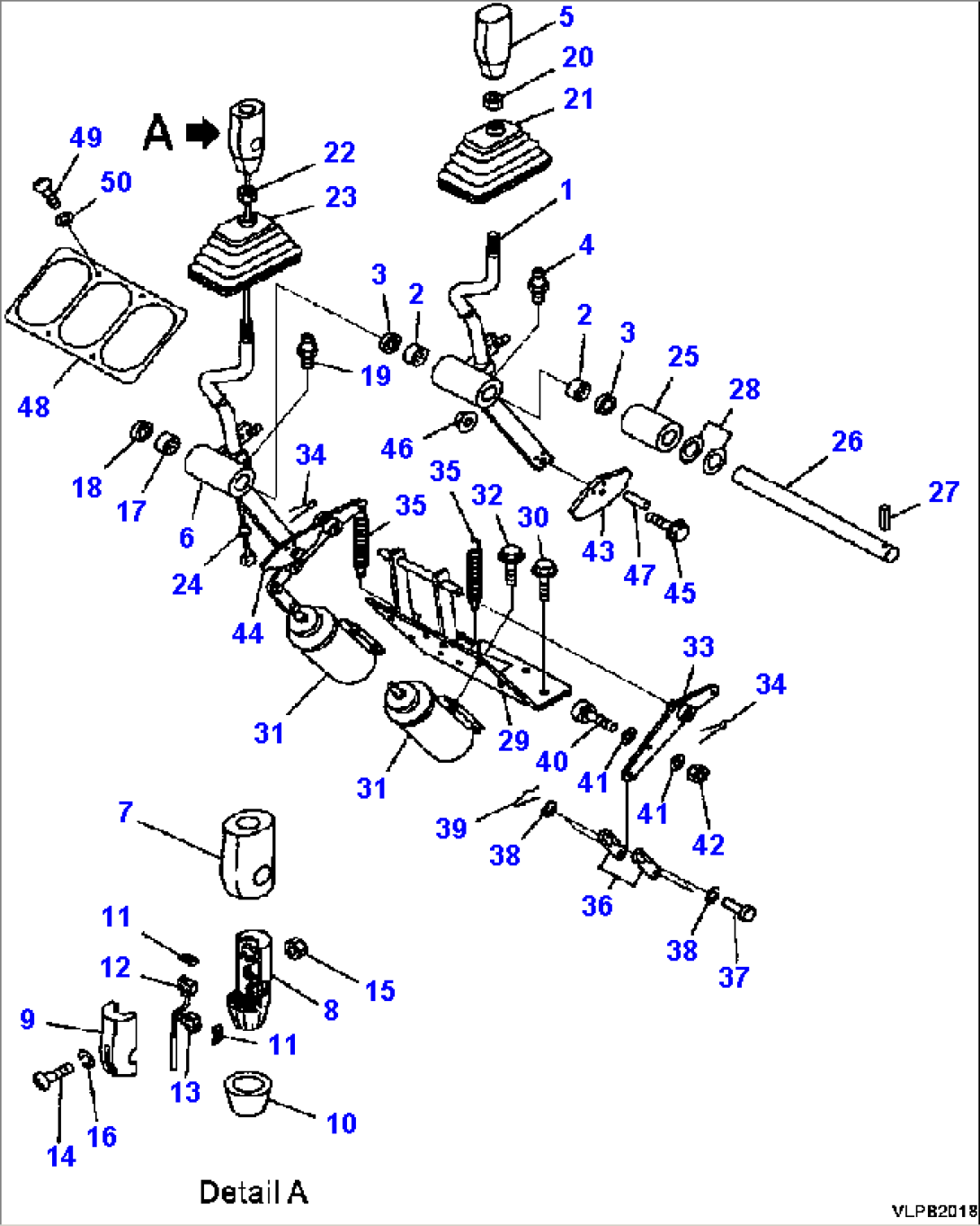

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-43-28270 | LEVER, BUCKET | A70001 -- | |
| 2 | 06120-02016 | BEARING | A70001 -- | |
| 3 | 06122-02004 | SEAL | A70001 -- | |
| 4 | 07020-00000 | FITTING, GREASE | A70001 -- | |
| 5 | 421-43-28410 | KNOB, BUCKET LEVER | A70001 -- | |
| 421-43-28931 | LEVER, BOOM | A70001 -- | ||
| 6 | 421-43-28270 | LEVER | A70001 -- | |
| 421-06-25511 | SWITCH, BOOM LEVER KNOB | A70001 -- | ||
| 7 | 421-06-25540 | COVER | A70001 -- | |
| 8 | 421-06-25520 | BODY, GRIP | A70001 -- | |
| 9 | 421-06-25530 | CAP, GRIP | A70001 -- | |
| 10 | 421-06-25550 | COVER, BOTTOM | A70001 -- | |
| 11 | 421-06-25560 | SPRING | A70001 -- | |
| 12 | 421-06-25570 | SWITCH ASSEMBLY | A70001 -- | |
| 13 | 421-06-25580 | SWITCH | A70001 -- | |
| 14 | 01235-40530 | SCREW | A70001 -- | |
| 15 | 01580-10504 | NUT | A70001 -- | |
| 16 | 01601-20513 | WASHER, SPRING | A70001 -- | |
| 17 | 06120-02016 | BEARING | A70001 -- | |
| 18 | 06122-02004 | SEAL | A70001 -- | |
| 19 | 07020-00000 | FITTING, GREASE | A70001 -- | |
| 20 | 421-09-21230 | NUT | A70001 -- | |
| 21 | 421-43-28431 | BOOT | A70001 -- | |
| 22 | 421-09-21230 | NUT | A70001 -- | |
| 23 | 421-43-28431 | BOOT | A70001 -- | |
| 24 | 423-43-18350 | GROMMET | A70001 -- | |
| 25 | 421-43-28370 | SPACER | A70001 -- | |
| 26 | 421-43-28210 | SHAFT | A70001 -- | |
| 27 | 04025-00616 | PIN, SPRING | A70001 -- | |
| 28 | 426-43-18850 | SHIM, 1.0 MM | A70001 -- | |
| 29 | 421-43-28380 | BRACKET | A70001 -- | |
| 30 | 01435-01016 | BOLT | A70001 -- | |
| 31 | 421-06-11542 | SOLENOID | A70001 -- | |
| 32 | 01435-00616 | BOLT | A70001 -- | |
| 33 | 425-43-18320 | LEVER ASSEMBLY | A70001 -- | |
| 34 | 04050-13022 | PIN, COTTER | A70001 -- | |
| 35 | 234-885-1690 | SPRING | A70001 -- | |
| 36 | 425-43-18140 | PLATE | A70001 -- | |
| 37 | 04205-10620 | PIN | A70001 -- | |
| 38 | 01641-20608 | WASHER | A70001 -- | |
| 39 | 04050-11612 | PIN, COTTER | A70001 -- | |
| 40 | 421-43-18711 | BEARING | A70001 -- | |
| 41 | 01643-30623 | WASHER | A70001 -- | |
| 42 | 01580-10605 | NUT | A70001 -- | |
| 43 | 425-43-18252 | PLATE | A70001 -- | |
| 44 | 425-43-18114 | PLATE | A70001 -- | |
| 45 | 01435-00825 | BOLT | A70001 -- | |
| 46 | 01584-00806 | NUT | A70001 -- | |
| 47 | 04020-00616 | PIN | A70001 -- | |
| 48 | 421-43-28871 | PLATE | A70001 -- | |
| 49 | 01220-70620 | SCREW | A70001 -- | |
| 50 | 01642-40608 | WASHER | A70001 -- |
