| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-54-16860 | PANEL, REAR | A13001-- | |
| 2 | 42N-54-18390 | SCREW | A13001-- | |
| 3 | 395-56-13460 | INSERT | A13001-- | |
| 4 | 42N-54-19950 | PLUG, RUBBER | A13001-- | |
| 5 | 42N-54-15690 | PLUG | A13001-- |
- Главная
- Каталог запчастей
- Экскаваторы погрузчики
- Wb142 5 s/n a13001 up
- Operator\xd5 s compartment and control system
- K5430 01a0 canopy rear panel
Поиск по каталогу

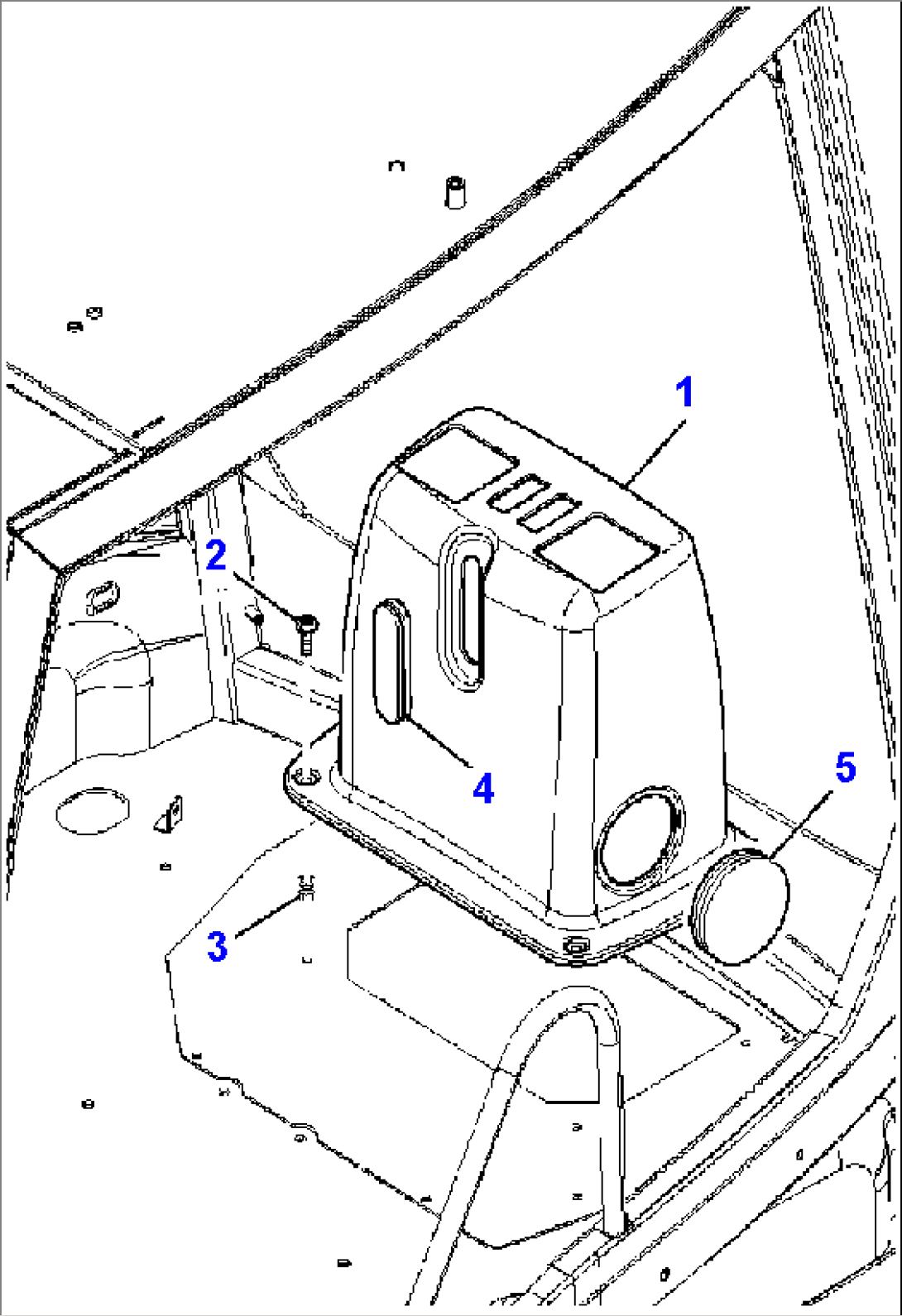

K5430-01A0 CANOPY REAR PANEL
